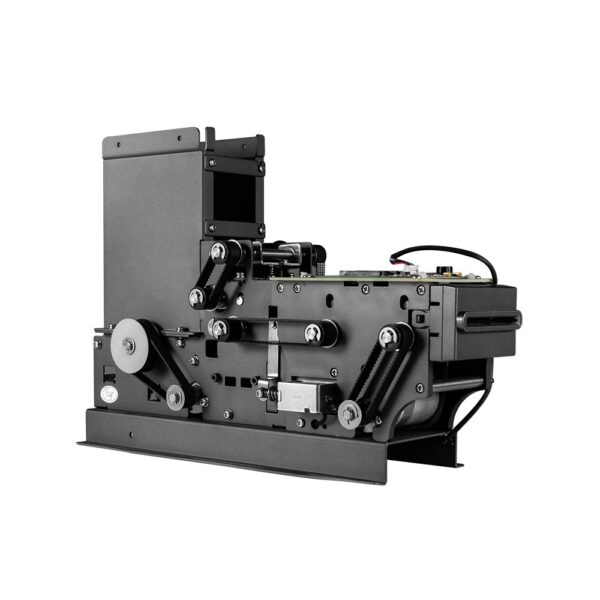

SNR-K720 Automatic RFID Smart Card Dispenser
SNR-K720 is an automatic RFID smart card dispenser designed for parking lot entry systems, toll stations, gated communities, corporate parking, airport parking, hospital parking and shopping mall parking terminals. It supports 13.56MHz RFID smart card reading and writing, adjustable 0.2–2.0mm card thickness, paper cards and polyester cards, 150-card standard stacker capacity, up to 300-card loading by configuration, card empty / pre-empty detection, sound alarm, RS232 control interface, DC24V power input and SDK / DLL / demo software for Windows, Linux and Android.
"*" indicates required fields
RFID Smart Card Dispenser Machine for Parking Systems, Toll Stations and Access Control Terminals
The SNR-K720 is an automatic RFID smart card dispenser designed for parking lot entry systems, toll stations, gated communities, corporate parking, airport parking, hospital parking and shopping mall parking terminals.
Built with an industrial metal body and plastic card channel, SNR-K720 is suitable for unattended parking environments that require stable RFID card issuing, abrasion resistance, corrosion resistance and reliable operation under high / low temperature and dusty conditions.
It supports 13.56MHz RFID smart card reading and writing, RS232 control interface, adjustable card thickness, card empty / pre-empty detection, sound alarm and SDK / DLL / demo software for Windows, Linux and Android.
Key Features
- Automatic RFID smart card dispenser
- Designed for parking system card issuing
- Supports 13.56MHz RFID smart card reading and writing
- Reserved RFID card reading module installation position
- Industrial metal body structure
- Plastic card channel design
- Excellent abrasion and corrosion resistance
- Suitable for high / low temperature and dusty environments
- Adjustable card channel spacing
- Supports card thickness from 0.2mm to 2.0mm
- Suitable for paper cards and polyester cards
- Standard stacker capacity: 150 cards
- Maximum loading up to 300 cards by configuration
- Card empty detection
- Pre-empty / few-card detection
- Sound alarm function
- Multiple card stay position control
- RS232 control interface
- Supports multiple device communication
- DC24V power input
- SDK / DLL / demo software for Windows, Linux and Android
Applications
- Parking lot entry RFID card dispensing
- Toll station entry ticket / card issuing
- Gated community resident RFID card dispensing
- Corporate parking employee access card issuing
- Airport long-term parking card issuing
- Hospital parking patient / visitor card issuing
- Shopping mall parking customer loyalty card issuing
- Parking access control terminals
- Visitor parking card issuing systems
- Self-service parking payment terminals
- Industrial access card issuing kiosks
Technical Specifications
Basic Specifications
| Item | Specification |
|---|---|
| Model | SNR-K720 |
| Product Type | Automatic RFID Smart Card Dispenser |
| Main Application | Parking system card issuing |
| Card Reading / Writing | 13.56MHz RFID smart card reading and writing |
| Operation Condition | Installed in cabinet |
| Card Stay Position | Multiple card stay position control |
| Interface | RS232 |
Card Specifications
| Item | Specification |
|---|---|
| Card Material | Paper card or polyester card |
| Card Width | 54 ± 0.5mm |
| Card Length | 85 ± 0.5mm |
| Card Thickness | 0.2–2.0mm, adjustable |
| Card Channel | Adjustable channel spacing |
Card Stacker Capacity
| Item | Specification |
|---|---|
| Standard Stacker Capacity | 150 standard cards based on 0.76mm thickness |
| Maximum Loading Capacity | Up to 300 cards based on 0.76mm thickness by configuration |
| Few Card Alert | 7–50 cards, based on 0.76mm cards |
| Preset Few Card Quantity | 15 cards |
| Card Empty Detection | Supported |
| Pre-Empty Detection | Supported |
| Alarm | Sound alarm supported |
Electrical Specifications
| Item | Specification |
|---|---|
| Operation Power | DC24V |
| Maximum Current | 2A |
| Static Current | 0.1A |
| Communication Interface | RS232 |
Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temperature | -20℃ to 85℃ |
| Operating Humidity | 30%–90% RH |
Mechanical Specifications
| Item | Specification |
|---|---|
| Body Material | Metal body |
| Card Channel Material | Plastic channel |
| Installation Dimension | Refer to product structure drawing |
| Net Weight | 2.0kg, including card holder |
Why Choose SNR-K720?
SNR-K720 is suitable for parking systems that require reliable RFID smart card issuing, industrial durability and stable unattended operation.
Compared with standard card dispensers, SNR-K720 is designed specifically for RFID parking card applications. It supports 13.56MHz RFID smart card reading and writing, adjustable card channel spacing, sound alarm, RS232 control and SDK / DLL / demo software for Windows, Linux and Android.
For parking lot entry, toll stations, gated communities, corporate parking, airport parking, hospital parking and shopping mall parking systems, SNR-K720 provides a practical RFID smart card dispenser solution.
Related Models
SNR-CD100-M3 – Motorized magnetic / IC / RFID card reader writer and dispenser for hotel and parking systems
SNR-CD212-M8 – Single hopper magnetic / IC / RFID card issuing machine for self-service kiosks
SNR-CD2604J-M8 – Dual hopper magnetic / IC / RFID card issuing machine with lockable card boxes
SNR-CD3000-RF – Motorized RFID card collector for parking exit and reusable RFID card recovery
SNR-CD3000 – Automatic card retriever / collector for parking exit cards and membership cards
FAQ
What is SNR-K720 used for?
SNR-K720 is used as an automatic RFID smart card dispenser for parking lot entry systems, toll stations, gated communities, corporate parking, airport parking, hospital parking and shopping mall parking terminals.
Does SNR-K720 support RFID card reading and writing?
Yes. It supports 13.56MHz RFID smart card reading and writing and reserves the RFID card reading module installation position.
What card thickness does it support?
It supports adjustable card thickness from 0.2mm to 2.0mm.
What card size does it support?
It supports cards with width 54 ± 0.5mm and length 85 ± 0.5mm.
What card materials are supported?
It supports paper cards and polyester cards.
What is the card stacker capacity?
The standard stacker capacity is 150 standard cards based on 0.76mm thickness. The maximum loading capacity can reach 300 cards by configuration.
Does it support low-card warning?
Yes. It supports few-card alert from 7 to 50 cards, with the preset quantity at 15 cards based on 0.76mm thick cards.
What interface does SNR-K720 use?
It uses an RS232 control interface and supports multiple device communication.
What power supply is required?
It uses DC24V power input, with maximum current of 2A and static current of 0.1A.
What software support is available?
SDK, DLL and demo software are available for Windows, Linux and Android integration.
Can it be used for hotel key card issuing?
SNR-K720 is mainly positioned for RFID parking card issuing. For hotel key card dispenser applications, SNR-CD100-M3 or SNR-CD212-M8 is usually more suitable because they support broader magnetic / IC / RFID card issuing and reader-writer functions.
