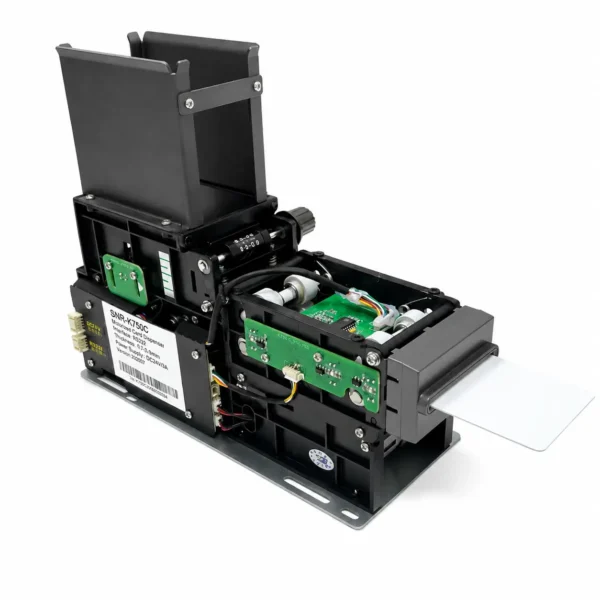

SNR-K750C RFID Card Dispenser with Encoder for Automated Card Issuance Systems
The SNR-K750C is a motorized RFID card dispenser designed for automated card issuance, RFID encoding and card collection applications.
With an integrated RFID card reader/writer, the K750C can issue, encode, verify and collect contactless smart cards within one compact device.
It supports ISO14443 Type A / Type B, ISO15693, MIFARE 1 and other 13.56MHz RFID/NFC card applications. This makes it suitable for membership card issuance, visitor badge systems, access control enrollment, hotel loyalty programs, transportation cards and self-service kiosk projects.
With optional 50, 100, 150 or 200-card hopper capacity, built-in recycle box and SDK / API support for Windows, Linux and Android platforms, the SNR-K750C provides a practical RFID card issuance module for system integrators
"*" indicates required fields
Key Features
- Motorized RFID card dispenser for automated card issuance
- Integrated 13.56MHz RFID card reader/writer
- Supports ISO14443 Type A / Type B and ISO15693 cards
- Suitable for MIFARE card issuing and encoding
- Supports card dispensing and card collection
- Optional card hopper capacity: 50 / 100 / 150 / 200 cards
- Built-in recycle box for rejected or abnormal cards
- Automatic self-recovery process for abnormal operation
- Compact structure for kiosk and cabinet integration
- Reserved structure for third-party RFID reader/writer modules
- RS232 communication interface
- Free SDK / API / DLL / demo software support
- Supports Windows, Linux and Android integration
Typical Applications
Visitor Management Systems
Issues and encodes temporary RFID visitor badges or access credentials in visitor registration terminals.
Access Control Enrollment Kiosks
Supports RFID access card issuing for employees, contractors, visitors and temporary access users.
Membership and Loyalty Card Issuing
Suitable for retail chains, gyms, coffee shops, beauty salons, car wash centers and other loyalty card programs.
Hotel Loyalty and Guest Card Systems
Can be used for hotel membership card issuing and guest loyalty card personalization.
Transportation and Ticketing Systems
Supports public transportation cards, subway cards, park cards and RFID ticket issuing applications.
Campus and Smart Card Systems
Suitable for student cards, employee cards, campus cards and other smart credential issuing systems.
Why Choose SNR-K750C?
Many projects require more than simple card dispensing.
A standard card dispenser only outputs blank cards. In many RFID card issuance systems, the card must also be read, encoded, verified and issued to the user.
The SNR-K750C combines:
- RFID card reading
- RFID card writing
- Card dispensing
- Card collection
- SDK / API integration
- Compact kiosk installation
into one device.
This helps system integrators reduce hardware complexity and simplify self-service kiosk development.
Standard Card Dispenser vs SNR-K750C RFID Card Dispenser
| Function | Standard Card Dispenser | SNR-K750C RFID Card Dispenser |
|---|---|---|
| Card Dispensing | Yes | Yes |
| RFID Reading | No | Yes |
| RFID Writing | No | Yes |
| Card Verification | No | Yes |
| Card Collection | Optional | Yes |
| Recycle Box | Not Always | Yes |
| SDK / API Support | Basic | Yes |
| Best For | Blank card output | Personalized RFID card issuance |
Integration Options
SNR-K750C is designed for kiosk manufacturers and system integrators that require hardware and software integration support.
Available support includes:
- SDK / API
- DLL and demo software
- Communication protocol guidance
- RFID reader module matching
- Mechanical integration support
- Sample testing support
Supported platforms:
- Windows
- Linux
- Android
Typical integration environments:
- Visitor management software
- Access control platforms
- Membership management systems
- Hotel loyalty systems
- Transportation card issuing platforms
- Self-service kiosk software
Technical Specifications
| Item | Specification |
|---|---|
| Model | SNR-K750C |
| Product Type | Motorized RFID Card Dispenser / Card Issuer |
| RFID Function | Card reading, writing and issuing |
| RFID Frequency | 13.56MHz |
| RFID Protocol | ISO14443 Type A / Type B, ISO15693 |
| Supported Card Type | MIFARE 1, ISO15693, ISO14443A standard cards |
| Card Material | Paper card and PC / PVC card |
| Card Size | 54 ± 0.5mm × 85 ± 0.5mm |
| Card Thickness | 0.7–1.2mm |
| Power Supply | DC24V ±10%, ripple <200mV |
| Peak Current | <3.0A |
| Quiescent Current | <0.5A |
| Interface | RS232 |
| Card Hopper Capacity | 50 cards standard |
| Optional Hopper Capacity | 100 / 150 / 200 cards |
| Recycle Box | 1 recycle box |
| Recycle Box Capacity | 15 cards / box based on 0.76mm card thickness |
| Recycle Box Warning | Supported |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 30% to 90% RH |
| MTBF | >200,000 hours for electronic components |
| Net Weight | Approx. 2.0kg |
| SDK / API | Windows / Linux / Android support |
Related Solutions
- Visitor Management System Hardware Guide
- Access Control Kiosk Hardware Guide
- Hotel Self Check-In Hardware Guide
- RFID Card Issuance in Self-Service Kiosks
- How to Choose a Card Dispenser for Visitor Management Systems
- How to Choose a Card Dispenser for Access Control Systems
Related Models
SNR-K750-L Circulating Card Dispenser
Recommended for hotel key card issuing, collection, storage and re-issuing workflows.
SNR-K720 Motorized Card Dispenser
Recommended for standard RFID card dispensing applications.
SNR-CD212-M8 RFID Card Dispenser
Recommended for compact RFID card issuing projects and visitor management systems.
SNR-D3000 Card Collector
Recommended for standard card collection and return applications.
SNR-D3000-RF RFID Card Collector
Recommended for RFID card collection projects that require credential verification.
FAQ
What is SNR-K750C used for?
SNR-K750C is used for RFID card issuing, encoding, verification and card collection in visitor management systems, access control platforms, membership card programs, transportation card systems and self-service kiosks.
Does SNR-K750C include an RFID card reader/writer?
Yes. SNR-K750C includes an integrated RFID card reader/writer module for 13.56MHz RFID/NFC card reading and writing.
What RFID protocols does SNR-K750C support?
SNR-K750C supports ISO14443 Type A / Type B, ISO15693 and MIFARE card applications.
Can SNR-K750C write data to RFID cards before issuing?
Yes. The built-in RFID reader/writer can encode compatible RFID cards before they are issued.
Does SNR-K750C support card collection?
Yes. SNR-K750C supports card collection and includes a recycle box for rejected or abnormal cards.
What is the card hopper capacity?
The standard card hopper capacity is 50 cards. Optional 100, 150 and 200-card stackers are available.
What is the recycle box capacity?
The recycle box capacity is approximately 15 cards based on 0.76mm standard card thickness.
What interface does SNR-K750C use?
SNR-K750C uses an RS232 communication interface.
Does SNR-K750C support SDK or API integration?
Yes. SDK, API, DLL and demo software support can be provided for Windows, Linux and Android platforms.
What is the difference between SNR-K750C and SNR-K750-L?
SNR-K750C is mainly used for RFID card issuing, encoding and card collection. SNR-K750-L is designed for circulating card workflows that require card issuing, collection, storage and re-issuing.
Is SNR-K750C suitable for visitor management systems?
Yes. It can issue and encode temporary visitor cards or RFID visitor badges in visitor management kiosks.
Is SNR-K750C suitable for access control card issuing?
Yes. It can be used to encode and issue RFID access cards for employees, visitors, contractors and temporary access users.
