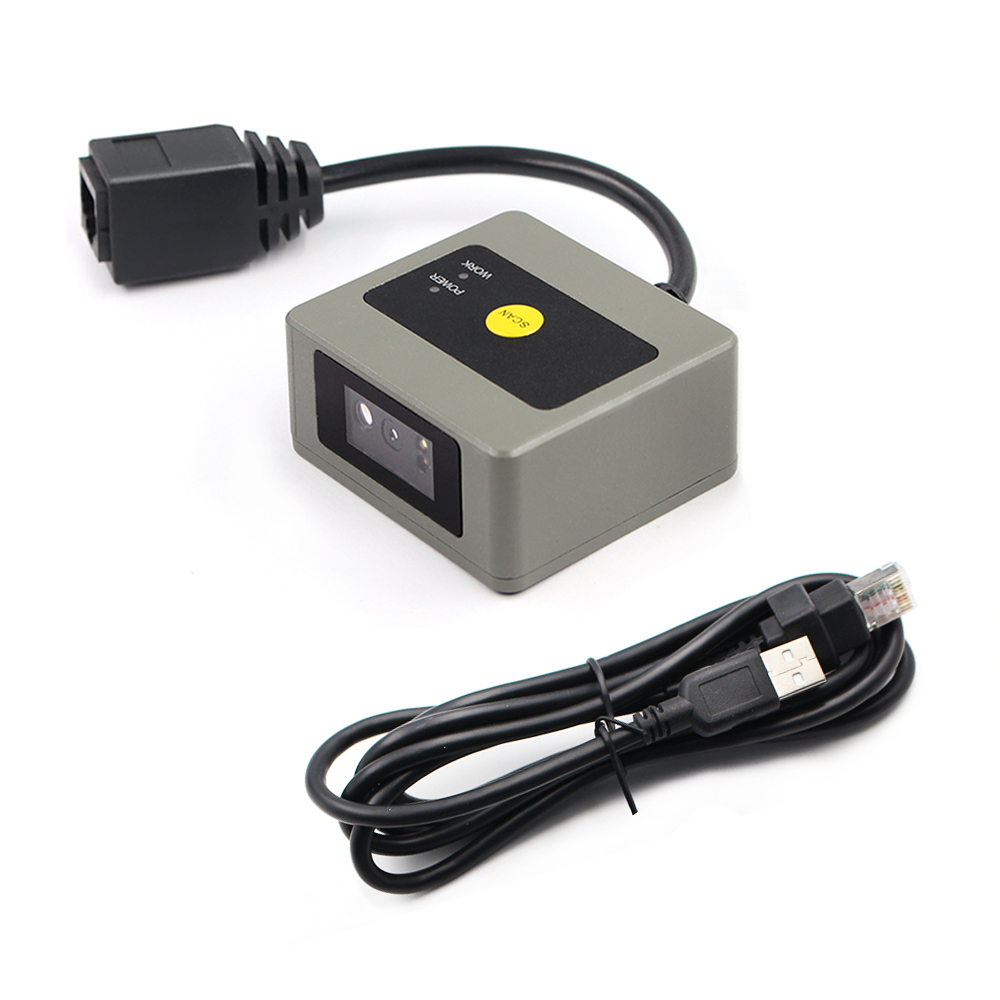

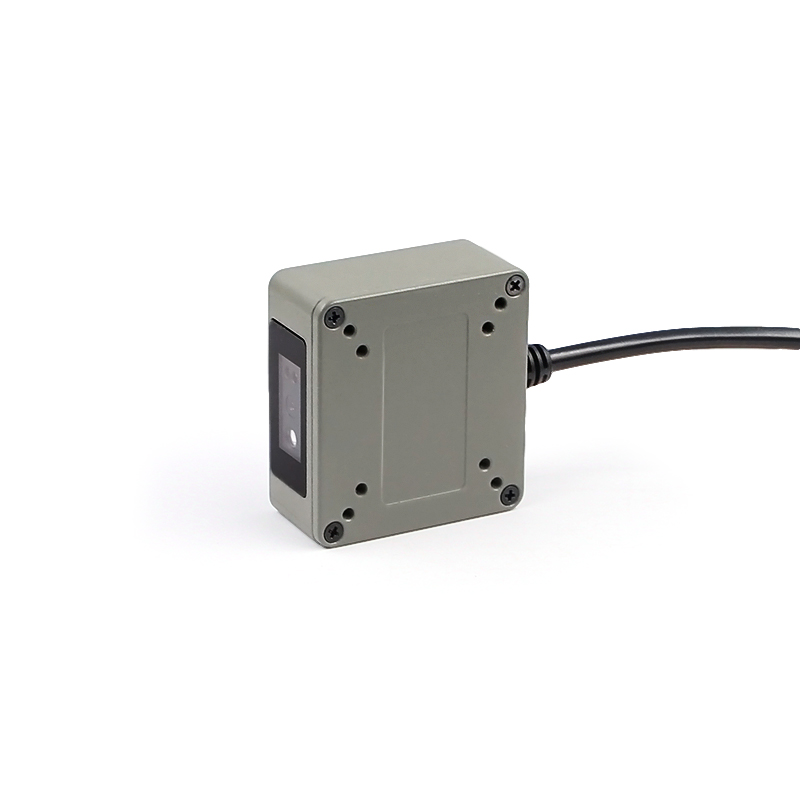

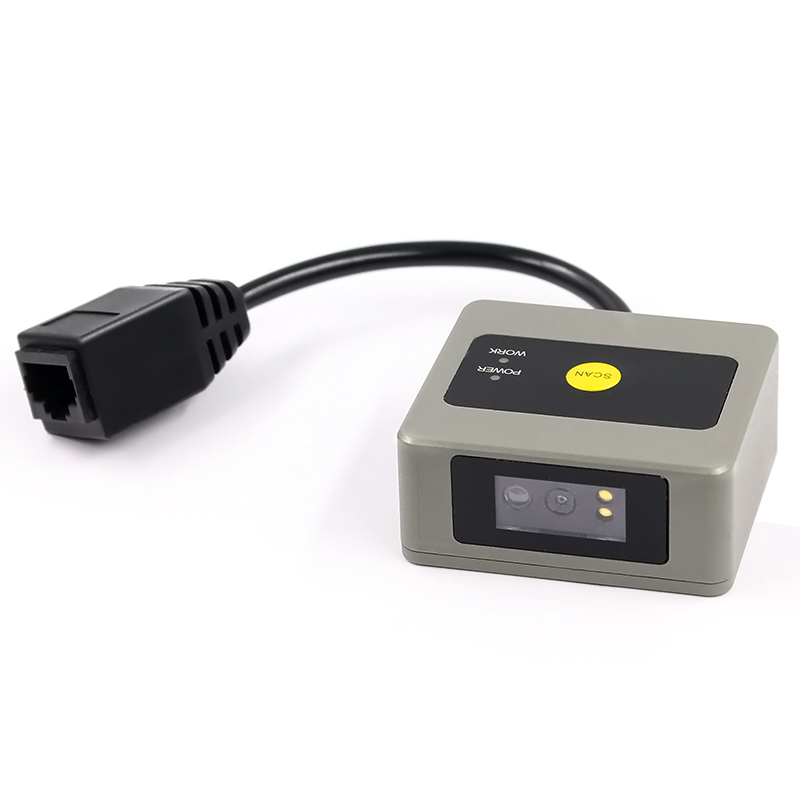

SNR-ES2300 Fixed Mount Barcode Scanner
SNR-EP2300 is a compact fixed mount barcode scanner designed for kiosks, POS terminals, access control devices, ticketing machines and embedded equipment. It supports 1D / 2D barcode reading, QR code scanning, mobile screen code reading, USB / RS232 interfaces, CMOS 640 × 480 image sensor, zinc alloy housing, IP52 protection and low power consumption.
"*" indicates required fields
Compact 2D Barcode Scanner Module for Kiosks, POS Terminals and Embedded Equipment
The SNR-ES2300 fixed mount barcode scanner is a compact embedded barcode reader designed for kiosks, POS terminals, access control devices, ticketing machines and other automated equipment.
Built with a 640 × 480 CMOS image sensor, red LED and white LED illumination, SNR-ES2300 provides reliable 1D and 2D barcode reading for printed codes and mobile screen codes. With a compact zinc alloy housing, USB / RS232 interface options and low power consumption, it is suitable for OEM equipment manufacturers and system integrators who need a stable and easy-to-integrate scanner module.
Key Features
- Compact fixed mount barcode scanner for embedded equipment
- Supports 1D and 2D barcode reading
- 640 × 480 CMOS image sensor
- Reads printed barcodes and mobile screen codes
- Red LED + white LED illumination
- USB and RS232 interface options
- Compact size: 55.5 × 50.5 × 25mm
- Zinc alloy housing for durability and heat dissipation
- Typical power consumption: 650mW
- Ambient light adaptability: 0–100,000 LUX
- IP52 protection, excluding interface
- LED decode indicator and buzzer
- Suitable for kiosks, POS terminals, access control and ticketing equipment
Applications
- POS terminals
- Self-service kiosks
- Payment kiosks
- Access control devices
- Ticketing machines
- Ticket validation terminals
- Vending machines
- Smart terminals
- Embedded industrial equipment
- Automated service equipment
- QR code payment terminals
- Membership verification systems
Integration Options
SNR-ES2300 is designed for OEM equipment manufacturers and system integrators that need a compact barcode scanner with simple integration.
Available interfaces:
USB
RS232
Configuration method:
Programming barcode configuration
Optional cables:
USB cable
RS232 cable
User indicators:
LED decode indicator
Buzzer
The scanner can be integrated into POS terminals, kiosks, access control systems, ticketing machines, vending machines and other embedded devices that require reliable barcode reading in limited installation space.
Technical Specifications
| Item | Specification |
|---|---|
| Model | SNR-ES2300 |
| Product Type | Fixed Mount Barcode Scanner |
| Image Sensor | CMOS 640 × 480 |
| Light Source | Red LED + White LED |
| Resolution | ≥5mil |
| Symbol Contrast | ≥20% |
| Scan Angle | Skew ±60°, Pitch ±60°, Roll 360° |
| Field of View | Diagonal 51°, Horizontal 42°, Vertical 31° |
| Interfaces | USB / RS232 |
| Operating Voltage | 5VDC ±5% |
| Operating Current | 130mA typical, 230mA max @ 5VDC |
| Standby Current | 110mA @ 5VDC |
| Sleep Current | 90mA @ 5VDC |
| Power Consumption | 650mW typical |

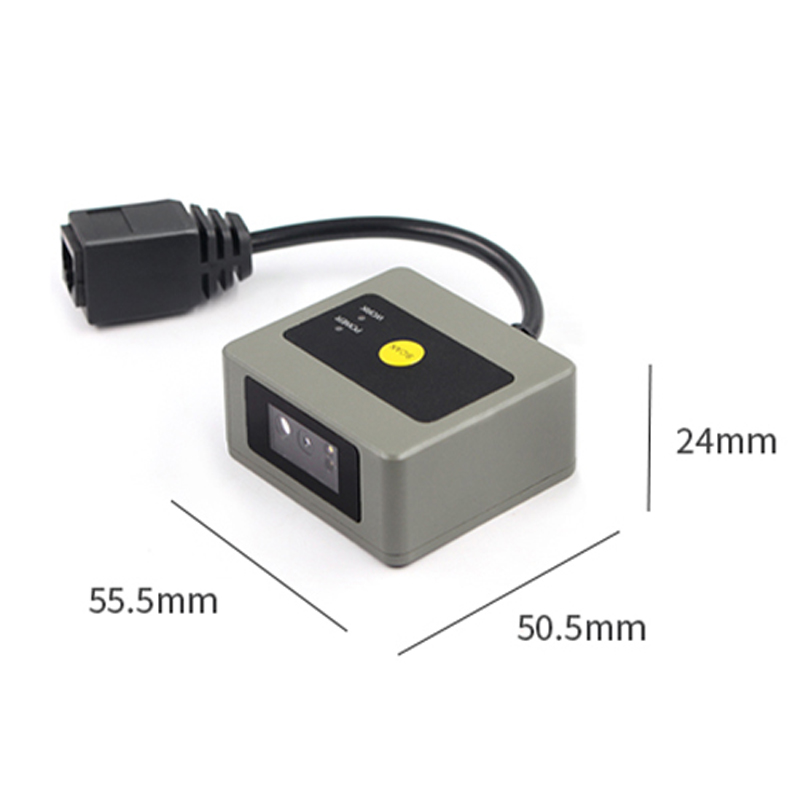

| Dimensions | 55.5(W) × 50.5(D) × 25(H) mm |
| Housing | Zinc alloy |
| Color | Gray |
| Net Weight | Approx. 164g, including adapter cable |
| Keyboard Support | US keyboard default, multi-country keyboards available |
| User Indicators | LED decode indicator, buzzer |
| Operating Temperature | -10℃ to +50℃ |
| Storage Temperature | -20℃ to +60℃ |
| Humidity | 5% to 95%, non-condensing |
| Drop Specification | Multiple 1m drops to concrete ground |
| Protection Rating | IP52, excluding interface |
| ESD Protection | EN61000-4-2, ±15KV air discharge, ±8KV contact discharge |
| Ambient Light | 0 to 100,000 LUX |
| LED Safety Level | IEC 62471 |
| Optional Cables | USB cable / RS232 cable |
Supported Barcode Types
2D barcodes:
QR Code,Micro QR Code,Data Matrix,PDF417,Micro PDF417,Aztec Code,HANXIN
1D barcodes:
EAN-8,EAN-13,UPC-A,UPC-E,Codabar,Code 11,Code 128,Code 39,Code 32,Code 93,Matrix 2 of 5,Industrial 2 of 5,GS1-128,Interleaved 2 of 5,GS1 DataBar,MSI Plessey
Typical Decode Range
| Barcode Type | Decode Range |
|---|---|
| Code 39, 5mil | 60mm – 120mm |
| EAN-13, 13mil | 50mm – 260mm |
| QR Code, 15mil | 40mm – 190mm |
Why Choose SNR-EP2300?
SNR-ES2300 is suitable for embedded equipment projects that require compact size, reliable barcode reading and simple USB / RS232 integration.
Compared with handheld scanners, SNR-ES2300 is designed for fixed installation inside equipment housings, front panels and scanning windows. Its zinc alloy housing, low power consumption, 1D / 2D barcode support, mobile screen code reading capability and ambient light adaptability make it a practical choice for kiosks, POS terminals, access control devices, ticketing systems and automated service equipment.
Related Models
SNR-ES3000 – Embedded barcode scanner module for kiosks and automated equipment
SNR-ES8000 – Fixed mount barcode scanner for higher-performance embedded scanning applications
SNR-ES2600 – Compact barcode reader for POS, kiosk and access control integration
SNR-ES8280 – Fixed mount barcode scanner for self-service terminals and embedded systems
FAQ
What is SNR-EP2300 used for?
SNR-EP2300 is used as a compact fixed mount barcode scanner for POS terminals, kiosks, access control devices, ticketing equipment and embedded automated systems.
Is SNR-EP2300 suitable for embedded installation?
Yes. SNR-EP2300 is designed for fixed or embedded installation inside equipment housings, panels and terminal structures.
Does SNR-EP2300 support QR code scanning?
Yes. SNR-EP2300 supports QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF417 and Aztec Code.
Can SNR-EP2300 read 1D barcodes?
Yes. It supports common 1D barcode formats including Code 39, Code 128, EAN-13, UPC-A, UPC-E, GS1-128 and more.
Can SNR-EP2300 read barcodes from mobile phone screens?
Yes. It can read both printed barcodes and mobile screen codes.
What interfaces does SNR-EP2300 support?
SNR-EP2300 supports USB and RS232 interfaces.
Can SNR-EP2300 work in strong light environments?
Yes. It supports ambient light adaptability from 0 to 100,000 LUX.
What is the size of SNR-EP2300?
The scanner size is 55.5(W) × 50.5(D) × 25(H) mm.
What is the protection rating?
SNR-EP2300 supports IP52 protection, excluding the interface.
