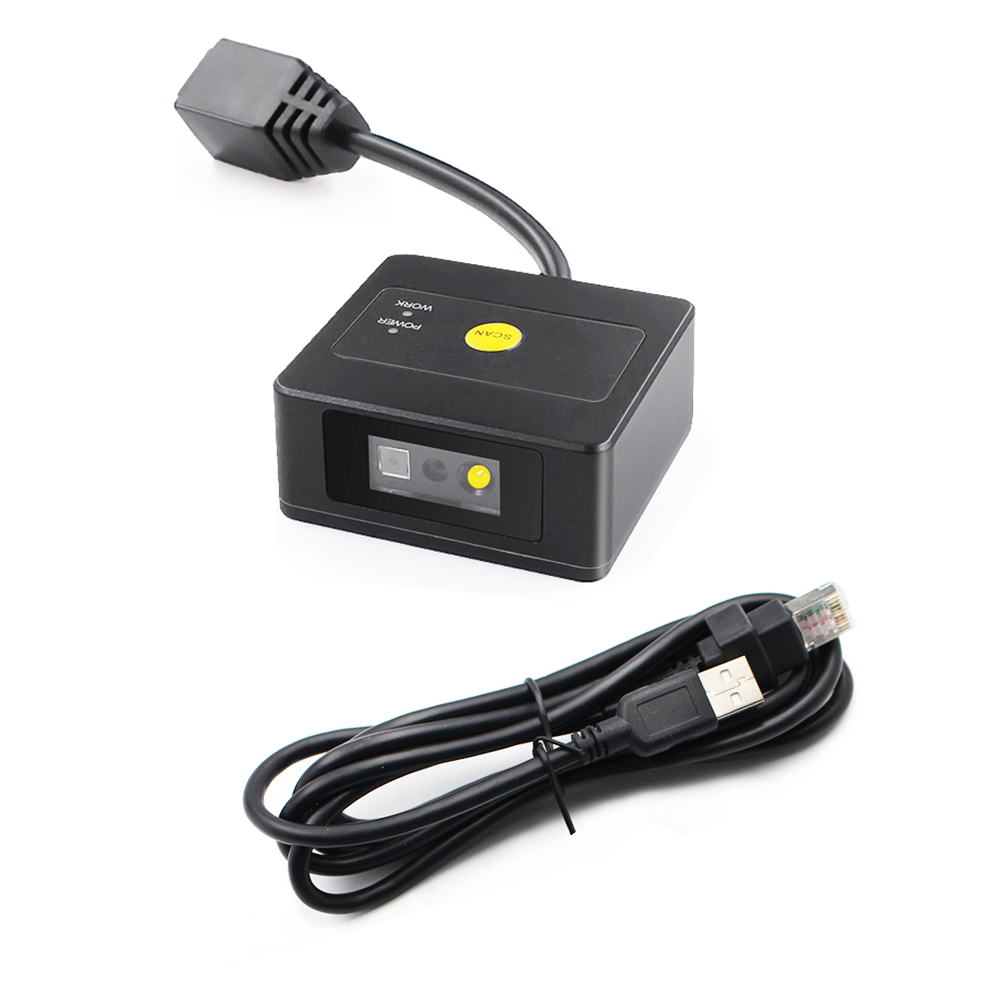

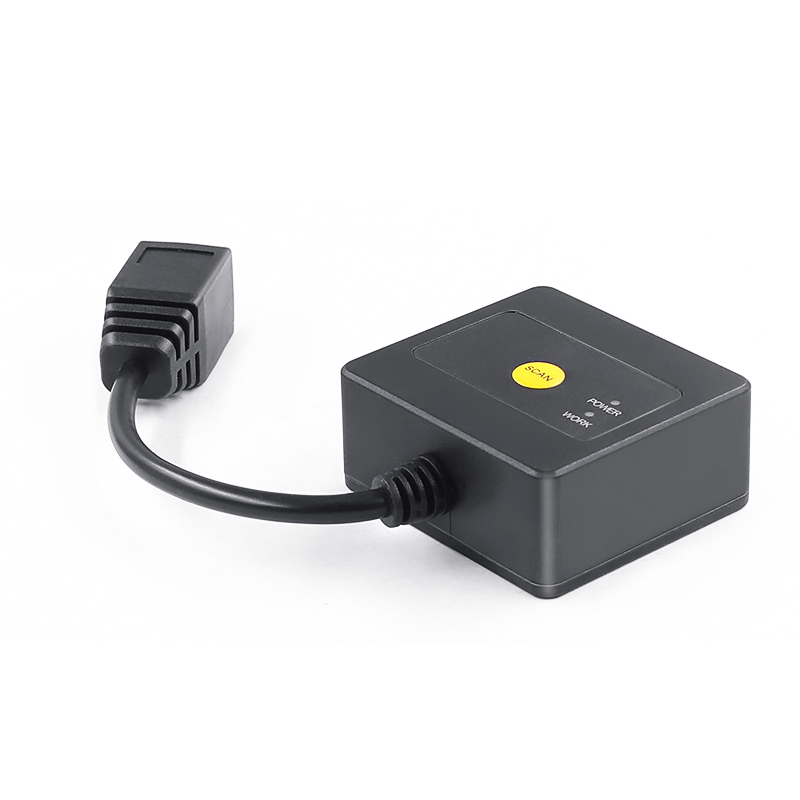

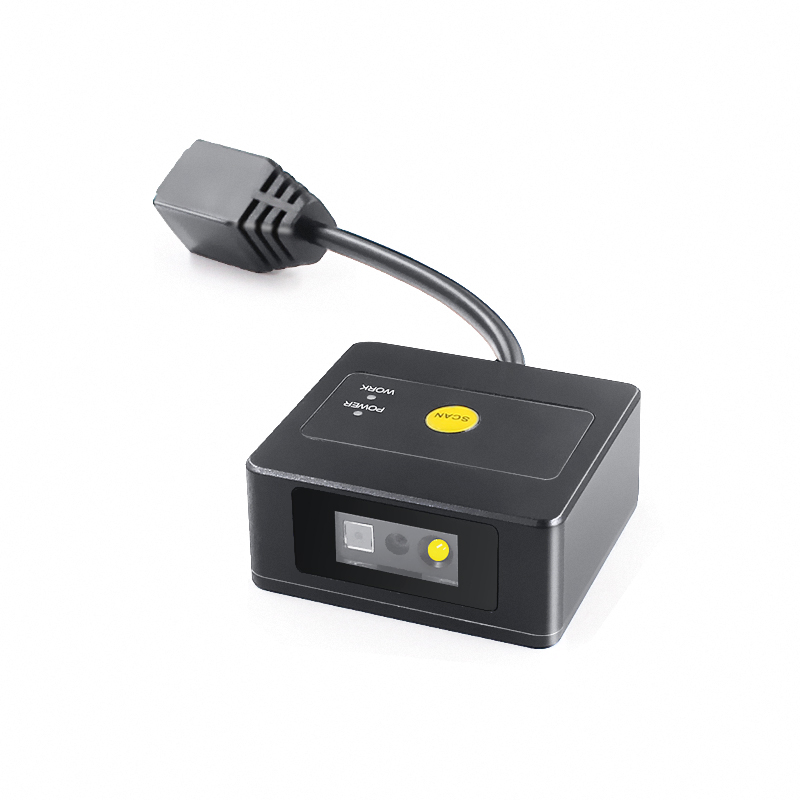

SNR-ES2600 Fixed Mount Barcode Scanner
SNR-ES2600 is a compact fixed mount barcode scanner designed for kiosks, POS terminals, access control devices, ticketing machines and embedded equipment. It supports 1D / 2D barcode reading, QR code scanning, mobile screen code reading, USB / RS232 interfaces, 1280 × 800 CMOS sensor, red cross laser aiming, zinc alloy housing and IP52 protection.
"*" indicates required fields
Compact 2D Barcode Scanner Module for Kiosks, POS Terminals and Embedded Integration
The SNR-ES2600 fixed mount barcode scanner is a compact embedded barcode reader designed for kiosks, POS terminals, access control devices, ticketing machines, vending machines and other automated equipment.
Built with a 1280 × 800 CMOS image sensor, red cross laser aiming and white LED illumination, SNR-ES2600 provides reliable 1D and 2D barcode reading for printed codes and mobile screen codes. With a compact zinc alloy housing, USB / RS232 interface options and plug-and-play operation, it is suitable for OEM equipment manufacturers and system integrators who need a durable and easy-to-integrate scanner module.
Key Features
- Compact fixed mount barcode scanner for embedded equipment
- Supports 1D and 2D barcode reading
- High-resolution 1280 × 800 CMOS image sensor
- Reads printed barcodes and mobile screen codes
- Red cross laser aiming for easier barcode positioning
- White LED illumination for stable scanning performance
- USB and RS232 interface options
- Supports USB keyboard mode, USB virtual serial mode and serial communication mode
- Compact size: 55.5 × 50.5 × 25mm
- Zinc alloy housing for durability and heat dissipation
- Ambient light adaptability: 0–100,000 LUX
- IP52 protection, excluding interface
- LED decode indicator and buzzer
- Suitable for kiosks, POS terminals, access control, ticketing and embedded equipment
Applications
- POS terminals
- Self-service kiosks
- Payment kiosks
- Access control terminals
- Ticketing machines
- Ticket validation equipment
- Vending machines
- Industrial control devices
- Smart terminals
- Automated service equipment
- QR code payment terminals
- Coupon and membership verification systems
- Order pickup verification systems
Integration Options
SNR-ES2600 is designed for OEM equipment manufacturers and system integrators that need a compact barcode scanner with simple integration.
Available interfaces:
USB
RS232
Supported communication modes:
USB keyboard mode
USB virtual serial mode
Serial communication mode
Optional cables:
USB cable
RS232 cable
User indicators:
LED decode indicator
Buzzer
The scanner can be integrated into POS terminals, kiosks, access control devices, ticketing machines, vending machines, industrial control equipment and other embedded systems that require reliable 1D / 2D barcode reading in limited installation space.
Technical Specifications
| Item | Specification |
|---|---|
| Model | SNR-ES2600 |
| Product Type | Fixed Mount Barcode Scanner |
| Image Sensor | CMOS 1280 × 800 |
| Light Source | Red cross laser aiming + white LED |
| Resolution | ≥5mil |
| Symbol Contrast | ≥20% |
| Scan Angle | Skew ±60°, Pitch ±60°, Roll 360° |
| Field of View | Diagonal 49°, Horizontal 42°, Vertical 28° |
| Interfaces | USB / RS232 |
| Operating Voltage | 5VDC ±5% |
| Operating Current | 260mA typical, 350mA max @ 5VDC |
| Standby Current | 140mA @ 5VDC |
| Sleep Current | 30mA @ 5VDC |
| Power Consumption | 1300mW typical |

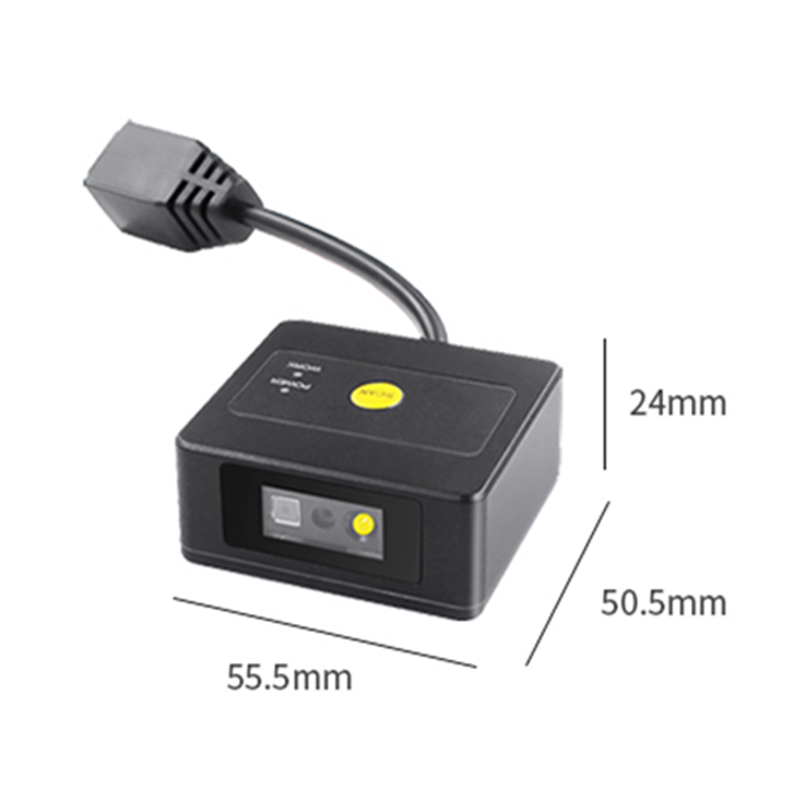

| Dimensions | 55.5(W) × 50.5(D) × 25(H) mm |
| Housing | Zinc alloy |
| Color | Black |
| Net Weight | Approx. 164g, including adapter cable |
| Keyboard Support | US keyboard default, multi-country keyboards available |
| User Indicators | LED decode indicator, buzzer |
| Operating Temperature | -10℃ to +50℃ |
| Storage Temperature | -20℃ to +60℃ |
| Humidity | 5% to 95%, non-condensing |
| Drop Specification | Multiple 1m drops to concrete ground |
| Protection Rating | IP52, excluding interface |
| ESD Protection | EN61000-4-2, ±15KV air discharge, ±8KV contact discharge |
| Ambient Light | 0 to 100,000 LUX |
| LED Safety Level | IEC 62471 |
| Optional Cables | USB cable / RS232 cable |
Supported Barcode Types
2D barcodes:
QR Code,Micro QR Code,Aztec Code,Data Matrix,PDF417,Micro PDF417
1D barcodes:
Codabar,Code 39,Code 32,Interleaved 2 of 5,Matrix 2 of 5,Code 93,Code 11,Code 128,GS1-128,UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,GS1 DataBar,ISBT-128,MSI Plessey,Febraban,Industrial 2 of 5
Typical Decode Range
| Barcode Type | Decode Range |
|---|---|
| Code 39, 5mil | 80mm – 260mm |
| EAN-13, 13mil | 60mm – 550mm |
| QR Code, 15mil | 60mm – 260mm |
Why Choose SNR-ES2600?
SNR-ES2600 is suitable for embedded equipment projects that require higher-resolution barcode scanning, compact installation and stable USB / RS232 integration.
Compared with entry-level embedded scanner modules, SNR-ES2600 uses a 1280 × 800 CMOS sensor and red cross laser aiming, helping improve barcode positioning and scanning performance in practical deployment environments. Its compact zinc alloy housing, IP52 protection, wide ambient light adaptability and support for mainstream 1D / 2D barcodes make it a practical choice for kiosks, POS terminals, access control systems, ticketing equipment, vending machines and industrial embedded devices.
Related Models
SNR-ES2300 – Compact fixed mount barcode scanner with 640 × 480 CMOS sensor
SNR-ES3000 – Embedded barcode scanner module for kiosk and automated equipment integration
SNR-ES8000 – Higher-performance fixed mount barcode scanner for demanding embedded scanning applications
SNR-ES8280 – Fixed mount barcode scanner for self-service terminals and embedded systems
FAQ
What is SNR-ES2600 used for?
SNR-ES2600 is used as a compact fixed mount barcode scanner for POS terminals, kiosks, access control devices, ticketing equipment, vending machines and embedded automated systems.
Is SNR-ES2600 suitable for embedded installation?
Yes. SNR-ES2600 is designed for fixed or embedded installation inside equipment housings, front panels and terminal structures.
Does SNR-ES2600 support QR code scanning?
Yes. SNR-ES2600 supports QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF417 and Aztec Code.
Can SNR-ES2600 read 1D barcodes?
Yes. It supports common 1D barcode formats including Code 39, Code 128, EAN-13, UPC-A, UPC-E, GS1-128 and more.
Can SNR-ES2600 read barcodes from mobile phone screens?
Yes. It can read both printed barcodes and mobile screen codes.
What interfaces does SNR-ES2600 support?
SNR-ES2600 supports USB and RS232 interfaces.
What communication modes are supported?
It supports USB keyboard mode, USB virtual serial mode and serial communication mode.
Can SNR-ES2600 work in strong light environments?
Yes. It supports ambient light adaptability from 0 to 100,000 LUX.
What is the size of SNR-ES2600?
The scanner size is 55.5(W) × 50.5(D) × 25(H) mm.
What is the protection rating?
SNR-ES2600 supports IP52 protection, excluding the interface.
