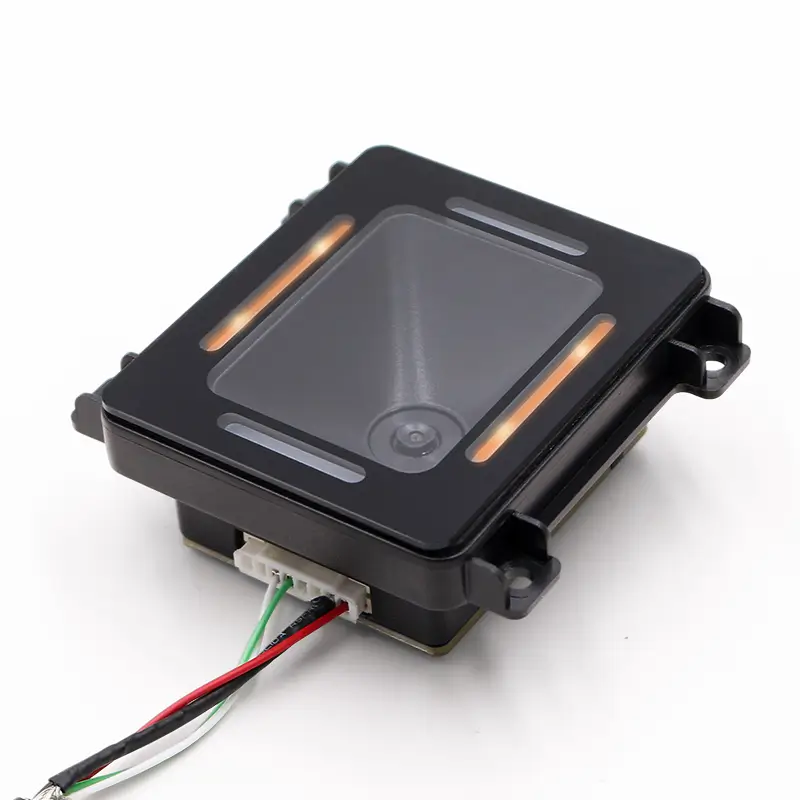

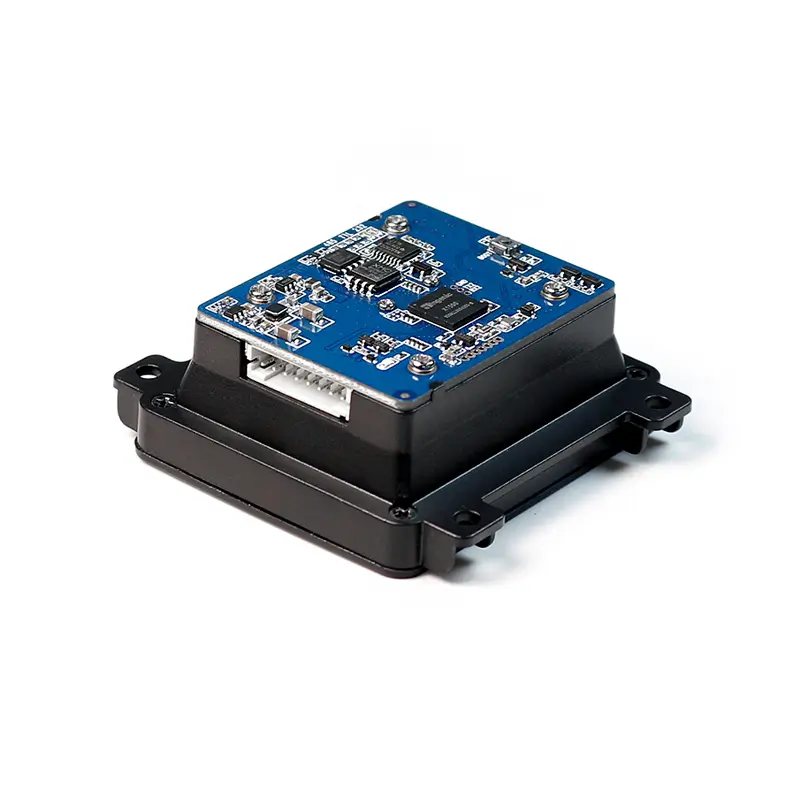

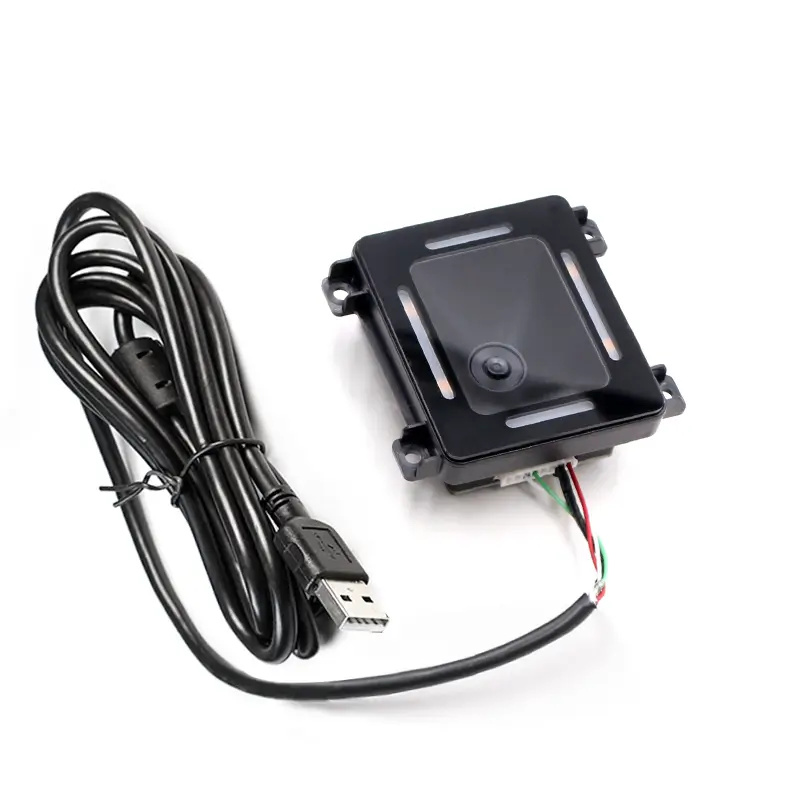

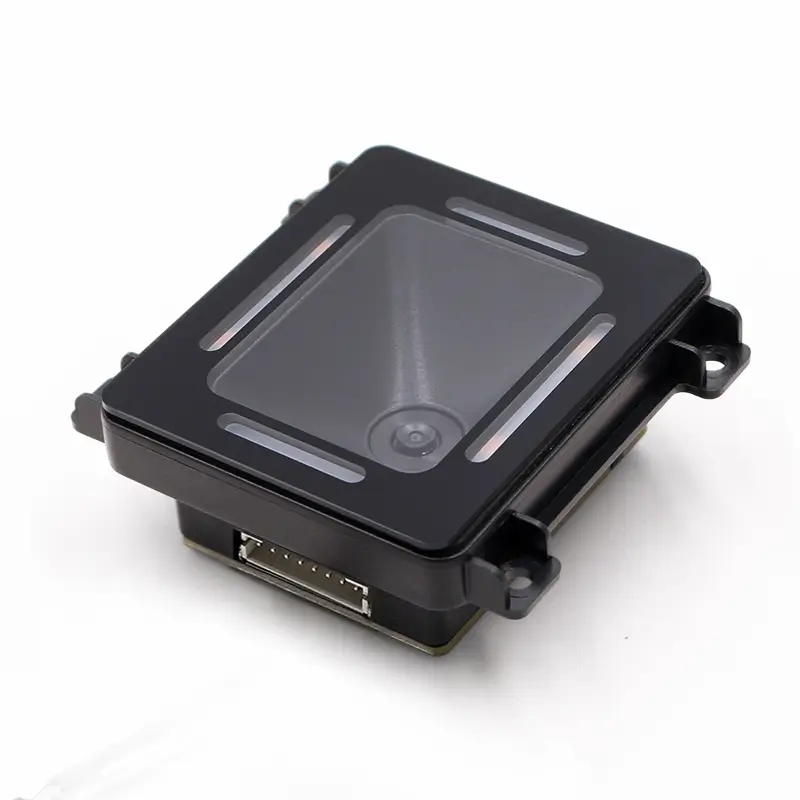

SNR-ES8280 Fixed Mount 2D Barcode Scanner
SNR-ES8280 is a compact fixed mount 2D barcode scanner designed for kiosks, access control systems, ticketing machines, smart lockers, parking terminals and OEM embedded equipment. It supports printed and mobile screen barcode reading, 640 × 480 CMOS imaging, white LED illumination, USB HID, USB CDC, RS232, TTL-232, RS485, Wiegand 26 and Wiegand 34 interfaces.
"*" indicates required fields
Embedded Barcode Scanner for Kiosks, Access Control and Self-Service Terminals
The SNR-ES8280 fixed mount 2D barcode scanner is a compact embedded barcode reader designed for self-service kiosks, ticketing machines, access control systems, smart lockers, parking terminals and OEM integration projects.
Powered by a CMOS imaging engine and intelligent decoding algorithm, SNR-ES8280 delivers fast and reliable scanning of both printed barcodes and mobile screen QR codes, even in challenging lighting conditions. Its compact size, industrial-grade stability and multiple communication interfaces make it suitable for unattended self-service and embedded equipment applications.
Key Features
- Fixed mount 2D barcode scanner for embedded integration
- Supports 1D and 2D barcode reading

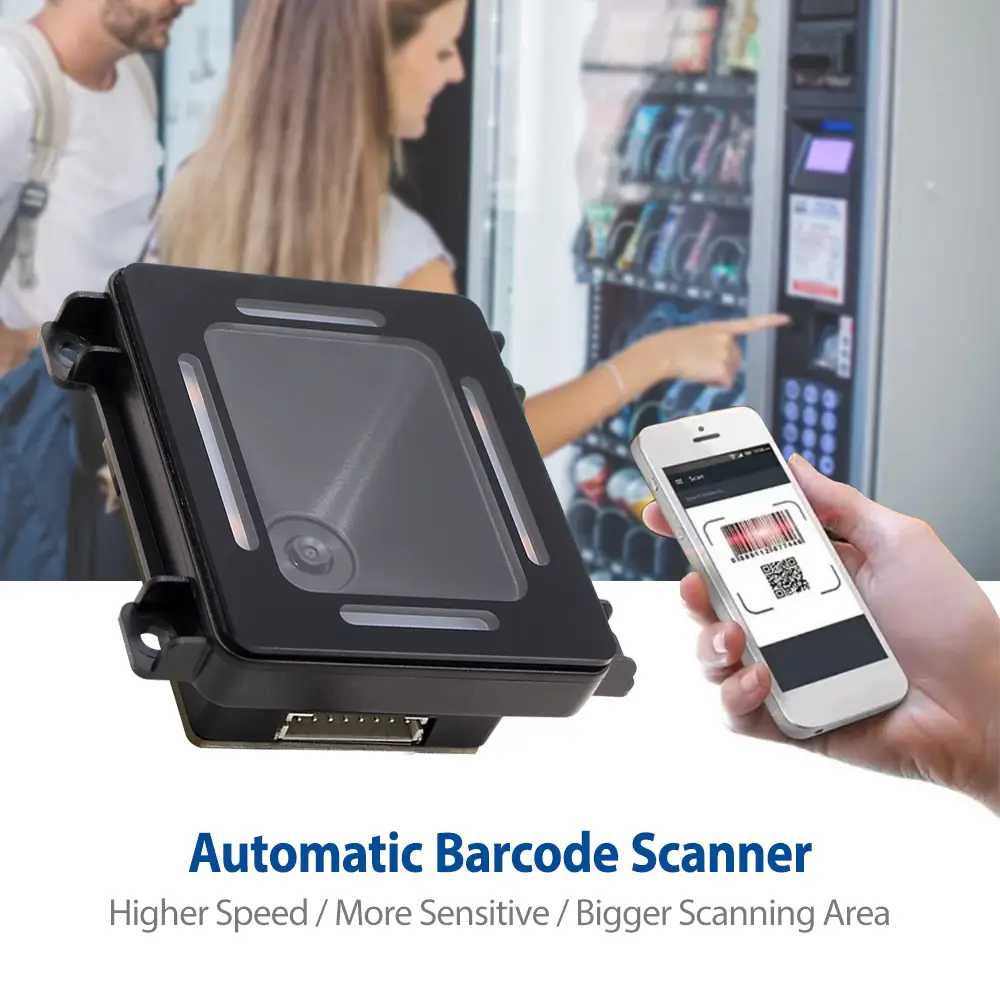

- Reads printed labels and mobile phone screen codes
- 640 × 480 CMOS image sensor
- White LED illumination
- Area image scanning technology
- Wide field of view: H74° × V65°
- Multiple interface options: USB HID, USB CDC, RS232, TTL-232, RS485, Wiegand 26 and Wiegand 34

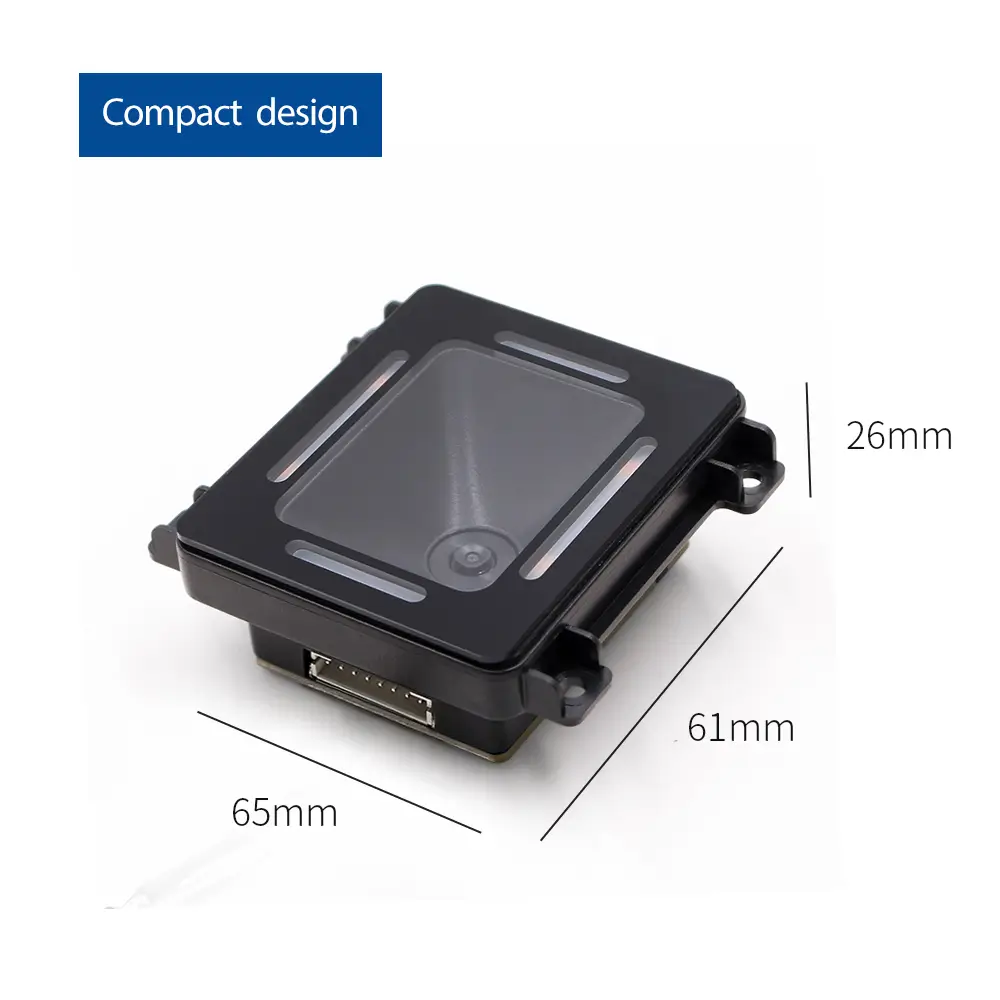

- Compact size: 61.1 × 64.8 × 26mm

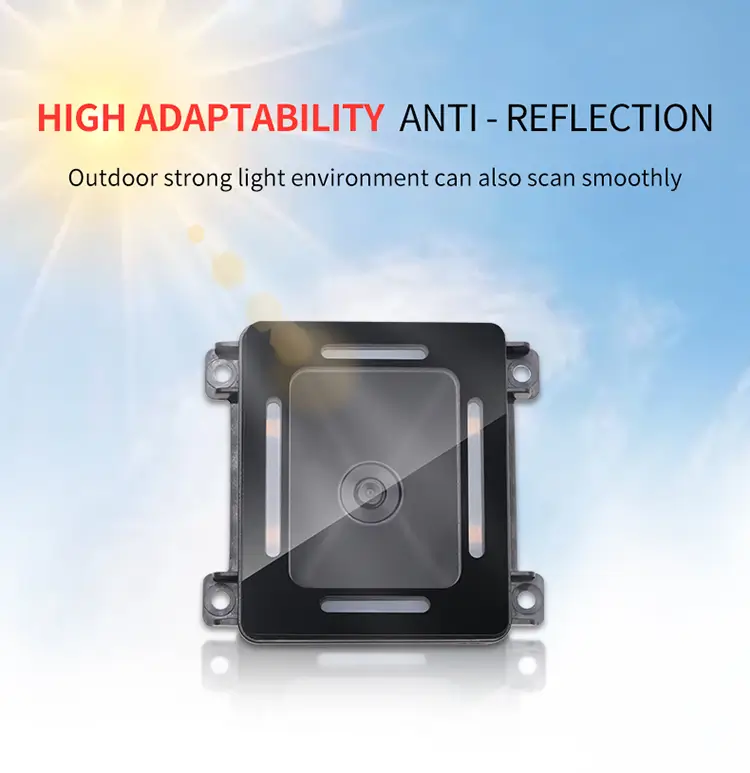

- Ambient light tolerance up to 100,000 Lux
- Suitable for kiosks, access control, smart lockers and ticket validation
- Supports unattended operation
- OEM / ODM customization available
Applications
- Self-service kiosks
- Payment kiosks
- Information kiosks
- Ticket vending machines
- Ticket validation terminals
- Access control systems
- QR code entry terminals
- Visitor registration systems
- Employee attendance systems
- Smart lockers
- Parcel pickup terminals
- Parking payment terminals
- Parking entry and exit control
- POS terminals
- OEM embedded equipment

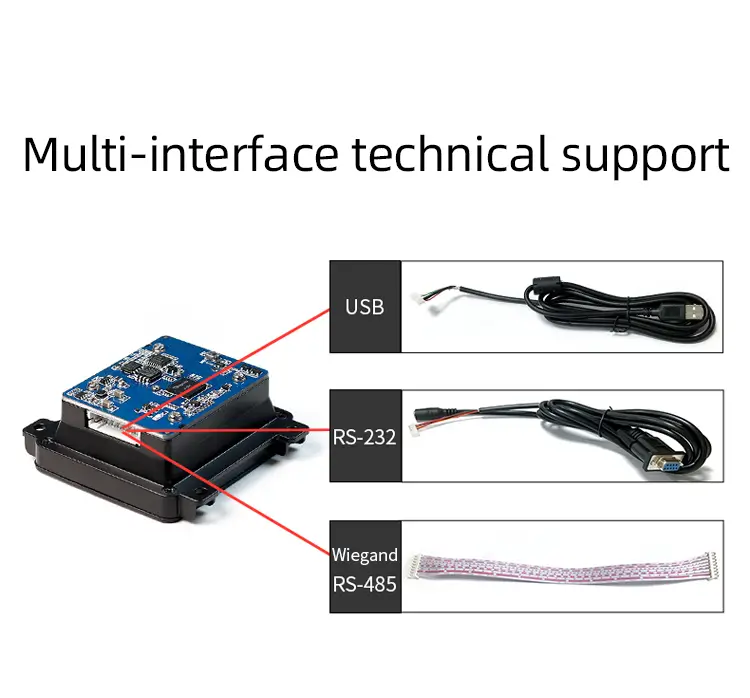

Integration Options
SNR-ES8280 is designed for equipment manufacturers and system integrators that need a compact scanner module with flexible communication options.
Available interfaces:
USB HID,USB CDC,RS232,TTL-232,RS485,Wiegand 26,Wiegand 34
Typical host systems:
Kiosk control boards
Access control controllers
POS terminals
Embedded Linux / Windows systems
Industrial control platforms
Custom OEM hardware
The scanner can be integrated into equipment housings, front panels and scanning windows for barcode-based payment, access control, ticket validation, pickup verification and user identification workflows.
Technical Specifications
| Item | Specification |
|---|---|
| Model | SNR-ES8280 |
| Product Type | Fixed Mount 2D Barcode Scanner |
| Sensor | 640 × 480 CMOS |
| Scan Type | Area Image Scanner |
| Illumination | White LED |
| Reading Angle | Pitch ±70°, Skew ±70°, Roll 360° |
| Field of View | H74° × V65° |
| Minimum Contrast | ≥20% PCS |
| Interfaces | USB HID / USB CDC / RS232 / TTL-232 / RS485 / Wiegand 26 / Wiegand 34 |
| Voltage | 5V DC ±5% |
| Operating Current | 210mA typical |
| Max Current | 250mA |
| Power Consumption | 1050mW |
| Dimensions | 61.1 × 64.8 × 26mm |
| Operating Temperature | -10℃ to 60℃ |
| Storage Temperature | -40℃ to 70℃ |
| Humidity | 5%–95% RH |
| Ambient Light | 0–100,000 Lux |
Supported Barcode Types
2D barcodes:
QR Code,Micro QR,PDF417,Micro PDF417,Data Matrix,Aztec,Han Xin
1D barcodes:
Code128,GS1-128,Code39,Code93,Code11,Codabar,ITF,UPC-A,UPC-E,EAN-8,EAN-13,MSI,GS1 DataBar
Typical Reading Distance
| Barcode Type | Density | Reading Distance |
|---|---|---|
| EAN-13 | 13mil | 5–100mm |
| PDF417 | 6mil | 5–65mm |
| Code39 | 5mil | 18–55mm |
| Data Matrix | 10mil | 5–70mm |
| QR Code | 15mil | 5–90mm |
Why Choose SNR-ES8280?
SNR-ES8280 is suitable for embedded projects that require compact size, stable 1D / 2D barcode reading and flexible interface integration.
Compared with basic embedded scanner modules, SNR-ES8280 provides multiple communication interfaces including USB HID, USB CDC, RS232, TTL-232, RS485 and Wiegand, making it practical for both kiosk systems and access control projects. Its compact mechanical design, mobile screen code reading capability and 100,000 Lux ambient light tolerance help improve scanning reliability in unattended terminals and front-facing user interaction devices.
Related Models
SNR-ES2300 – Compact fixed mount barcode scanner with 640 × 480 CMOS sensor
SNR-ES2600 – Fixed mount barcode scanner with 1280 × 800 CMOS sensor and red cross aiming
SNR-ES8000Y – Wide-angle fixed mount barcode scanner with Wiegand interface for access control
SNR-ES3000 – Embedded barcode scanner module for kiosk and automated equipment integration
FAQ
What is SNR-ES8280 used for?
SNR-ES8280 is used as a fixed mount 2D barcode scanner for self-service kiosks, access control systems, ticketing machines, smart lockers, parking terminals and OEM embedded equipment.
Can SNR-ES8280 read mobile phone screen QR codes?
Yes. SNR-ES8280 can read both printed barcodes and mobile phone screen codes.
What interfaces does SNR-ES8280 support?
SNR-ES8280 supports USB HID, USB CDC, RS232, TTL-232, RS485, Wiegand 26 and Wiegand 34.
Is SNR-ES8280 suitable for access control systems?
Yes. With Wiegand 26 / Wiegand 34 support, SNR-ES8280 is suitable for QR code access control, visitor management and attendance systems.
What is the size of SNR-ES8280?
The scanner size is 61.1 × 64.8 × 26mm.
What barcode types does SNR-ES8280 support?
It supports common 1D and 2D barcodes, including QR Code, Micro QR, PDF417, Data Matrix, Aztec, Code128, Code39, EAN-13, UPC-A and GS1 DataBar.
Can SNR-ES8280 work in bright environments?
Yes. It supports ambient light tolerance from 0 to 100,000 Lux.
What is the operating voltage?
SNR-ES8280 supports 5V DC ±5% operating voltage.
