SNR-ES3000Y Fixed Mount Barcode Scanner
SNR-ES3000Y is a compact fixed mount barcode scanner designed for kiosks, access control terminals, ticketing machines, barcode payment devices and self-service equipment. It supports 1D / 2D barcode reading, mobile screen QR code scanning, 640 × 480 CMOS sensor, white LED illumination, USB, RS232, RS485, TTL and Wiegand interfaces.
"*" indicates required fields
2D Barcode Scanner Module for Kiosks, Access Control and Self-Service Terminals
The SNR-ES3000Y fixed mount barcode scanner is designed for embedded installation in kiosks, access control terminals, ticketing machines, barcode payment devices, smart lockers and other self-service equipment.
It supports mainstream 1D and 2D barcode reading, including QR Code, Data Matrix, PDF417, Code 39, Code 128, EAN and UPC codes. With USB, RS232, RS485, TTL and Wiegand interface options, SNR-ES3000Y is suitable for OEM equipment manufacturers and system integrators who need a compact scanner module for reliable unattended operation.
Key Features
- Fixed mount 2D barcode scanner for embedded equipment
- Supports 1D and 2D barcode reading

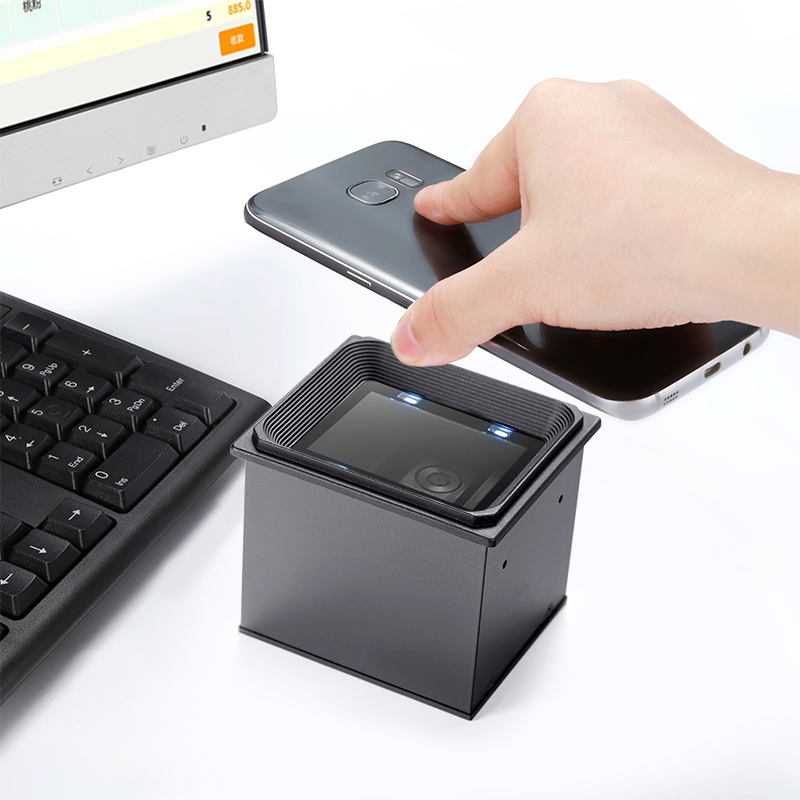

- Reads printed barcodes and mobile screen QR codes
- 640 × 480 CMOS image sensor
- White LED illumination
- USB, RS232, RS485, TTL and Wiegand interface options
- Compact embedded size: 76 × 66 × 64mm max
- Supports QR Code, Data Matrix, PDF417, Aztec, Code 39, Code 128, EAN and UPC
- Ambient light adaptability: 0–100,000 LUX
- Operating voltage range: 4.8–20VDC
- Suitable for kiosks, access control, ticketing, smart lockers and barcode payment devices
- Designed for unattended self-service equipment integration
Applications
- Self-service kiosks
- Payment kiosks
- Information kiosks
- Barcode payment devices
- Access control terminals
- QR code entry systems
- Visitor verification systems
- Ticketing machines
- Ticket validation terminals
- Smart lockers
- Parcel pickup terminals
- Membership verification terminals
- Order pickup verification devices
- Industrial embedded equipment
- OEM self-service hardware

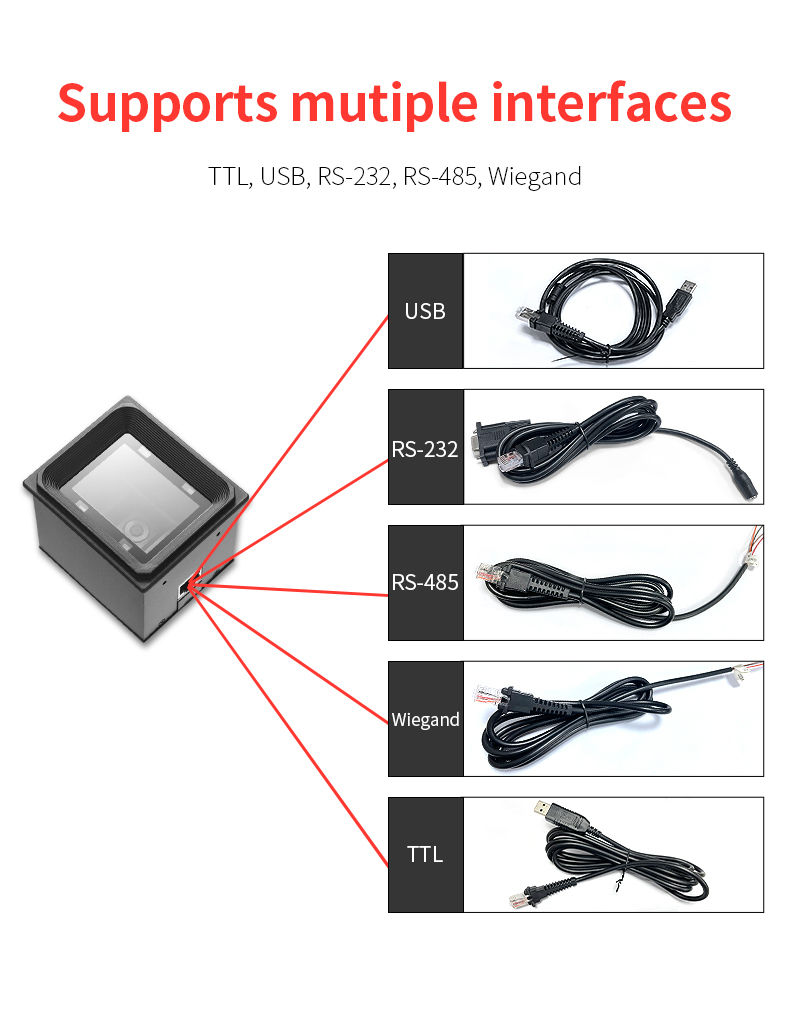

Integration Options
SNR-ES3000Y is suitable for equipment manufacturers that need flexible communication options during hardware development.
Available interfaces:
USB
RS232
RS485
TTL
Wiegand
Typical host systems:
Kiosk control boards
Access control controllers
Embedded Linux / Windows platforms
Industrial control boards
POS terminals
Barcode payment systems
Custom OEM hardware
Its Wiegand interface option makes it suitable for access control terminals, visitor systems and QR code entry devices, while USB and serial interfaces support kiosk, POS and self-service terminal integration.

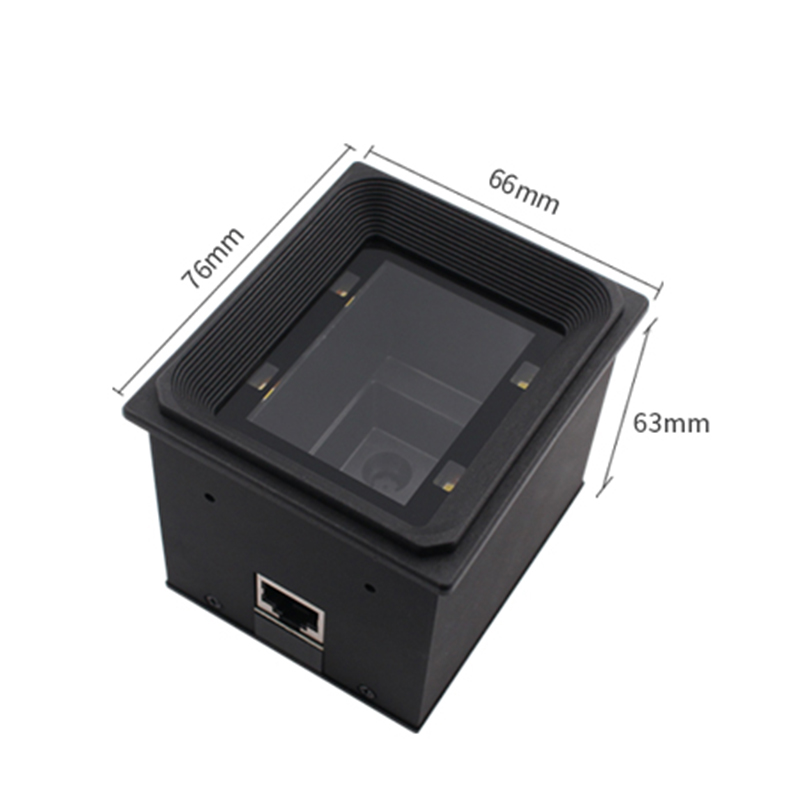

Dimensions and Installation
The SNR-ES3000Y scanner module has a maximum size of:
76(W) × 66(D) × 64(H) mm
Its fixed mount structure supports embedded installation inside equipment housings, front panels or scanning windows. This makes it suitable for OEM product development where mechanical space, scanning angle and front-panel layout need to be considered during design.
Technical Specifications
| Item | Specification |
|---|---|
| Model | SNR-ES3000Y |
| Product Type | 2D Fixed Mount Barcode Scanner |
| Image Sensor | 640 × 480 CMOS |
| Illumination | White LED |
| Resolution | ≥5mil |
| Symbol Contrast | ≥20% |
| Scan Angle | Skew ±70°, Pitch ±70°, Roll 360° |
| Field of View | Diagonal 52.8°, Horizontal 39°, Vertical 29° |
| Interfaces | USB / RS232 / RS485 / TTL / Wiegand |
| Dimensions | 76(W) × 66(D) × 64(H) mm max |
| Operating Voltage | 4.8–20VDC |
| Power Consumption | 1000mW typical |
| Operating Current | 200mA RMS typical, 300mA RMS max @ 5VDC |
| Standby Current | 150mA |
| Operating Temperature | 0℃ to +60℃ |
| Storage Temperature | -40℃ to +70℃ |
| Operating Humidity | 5% to 95%, non-condensing |
| Ambient Light | 0 to 100,000 LUX |
Supported Barcode Types
2D barcodes:
PDF417，QR Code，Micro QR，Data Matrix，Aztec，Hanxi Code
1D barcodes:
Codabar，Code 39，Code 32，Industrial 2 of 5，Interleaved 2 of 5，Standard 2 of 5，Matrix 2 of 5，Code 93，Code 11，Code 128，UPC-A，UPC-E，EAN/JAN-8，EAN/JAN-13，GS1 DataBar
Typical Decode Range
| Barcode Type | Decode Range |
|---|---|
| EAN-13, 13mil | 0mm – 70mm |
| PDF417, 6mil | 0mm – 25mm |
| Code 39, 6.6mil | 0mm – 25mm |
| Data Matrix, 10mil | 0mm – 15mm |
| QR Code, 15mil | 0mm – 60mm |
Why Choose SNR-ES3000Y?
SNR-ES3000Y is suitable for embedded self-service applications where compact size, multiple interfaces and reliable 1D / 2D barcode reading are required.
Compared with general barcode scanner modules, SNR-ES3000Y provides interface coverage for both kiosk and access control integration, including USB, RS232, RS485, TTL and Wiegand. Its compact structure, mobile screen QR code reading capability and 100,000 LUX ambient light adaptability help equipment manufacturers reduce integration complexity and improve user interaction in unattended terminals.
Related Models
SNR-ES8280 – Compact fixed mount 2D barcode scanner with USB, RS232, RS485 and Wiegand interfaces
SNR-ES8200 – Waterproof fixed mount 2D barcode scanner for parking systems and outdoor-facing kiosks
SNR-ES8000Y – Wide-angle fixed mount barcode scanner for access control and kiosk integration
SNR-ES2600 – Fixed mount barcode scanner with 1280 × 800 CMOS sensor and red cross aiming
FAQ
What is SNR-ES3000Y used for?
SNR-ES3000Y is used as an embedded barcode scanner module for kiosks, access control systems, ticketing terminals, barcode payment devices, smart lockers and other self-service equipment.
Is SNR-ES3000Y a fixed mount barcode scanner?
Yes. SNR-ES3000Y is designed for fixed installation inside equipment housings, front panels or terminal structures.
Does SNR-ES3000Y support QR code scanning?
Yes. It supports QR Code, Micro QR, Data Matrix, PDF417, Aztec and other 2D barcode formats.
Can SNR-ES3000Y scan mobile phone screen codes?
Yes. SNR-ES3000Y can scan mobile screen QR codes as well as printed barcodes.
What interfaces does SNR-ES3000Y support?
SNR-ES3000Y supports USB, RS232, RS485, TTL and Wiegand interfaces.
Is SNR-ES3000Y suitable for access control systems?
Yes. With Wiegand and other interface options, SNR-ES3000Y is suitable for access control terminals, visitor systems and QR code entry devices.
What is the size of SNR-ES3000Y?
The maximum size is 76(W) × 66(D) × 64(H) mm.
What is the operating voltage range?
SNR-ES3000Y supports an operating voltage range of 4.8–20VDC.
