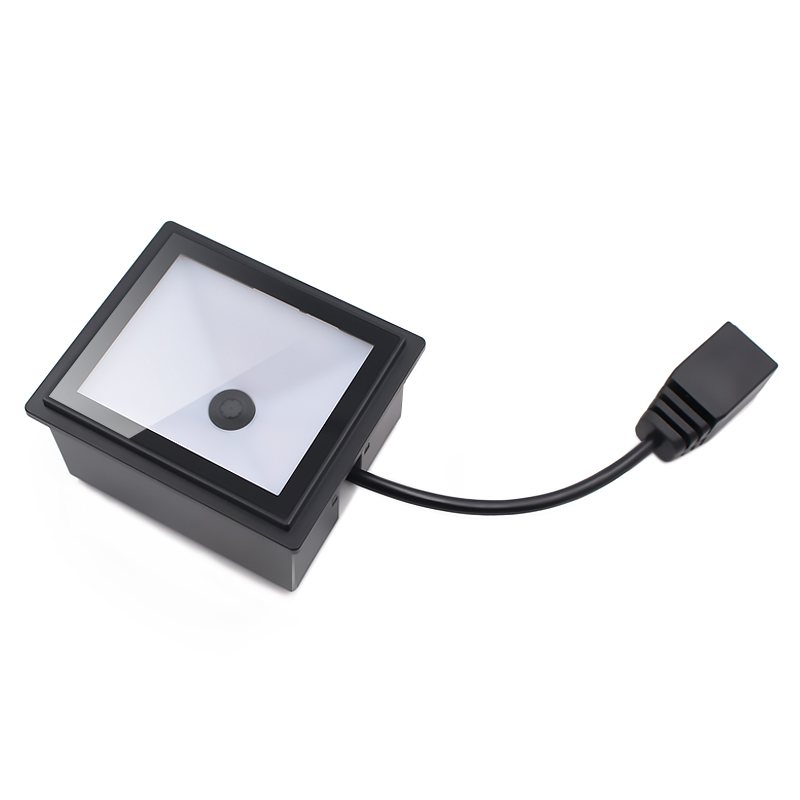

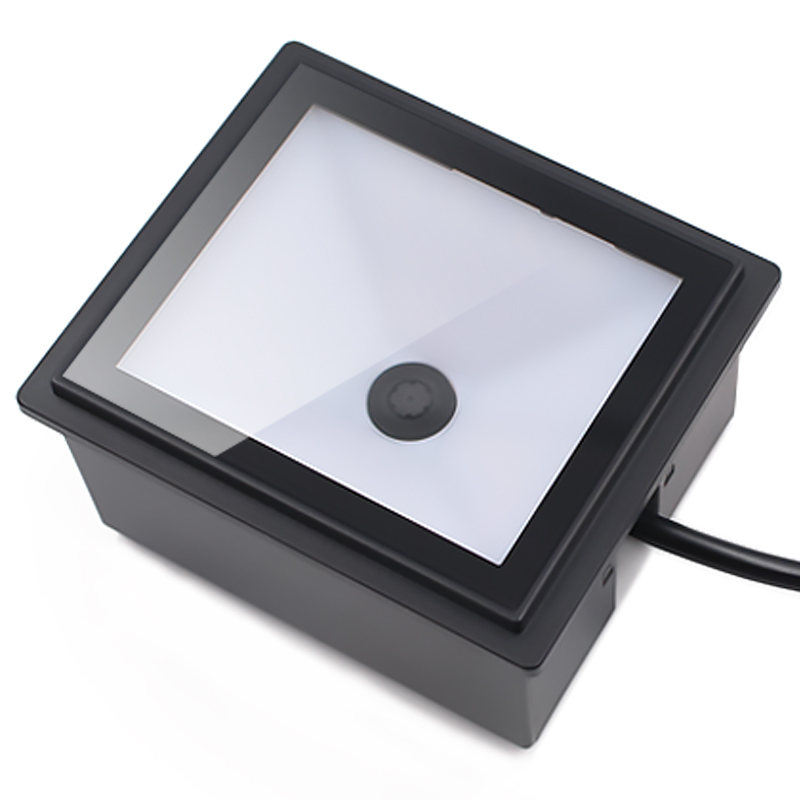

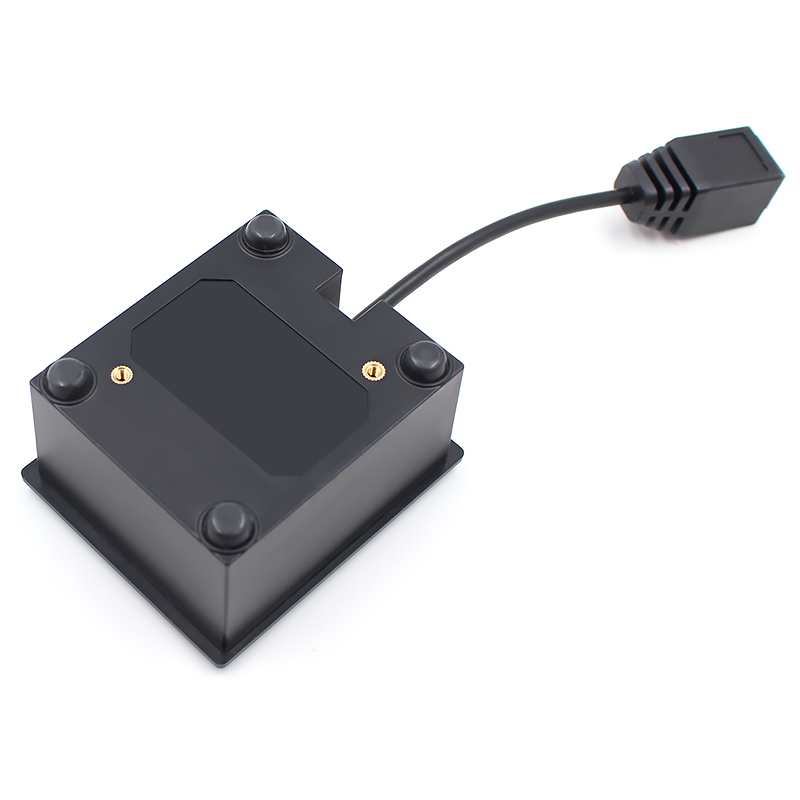

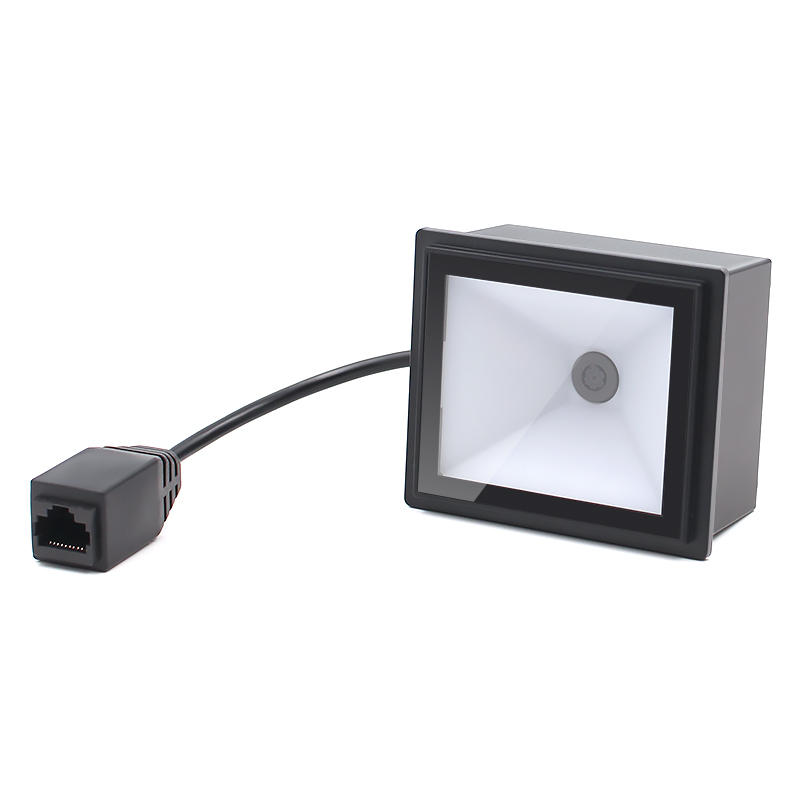

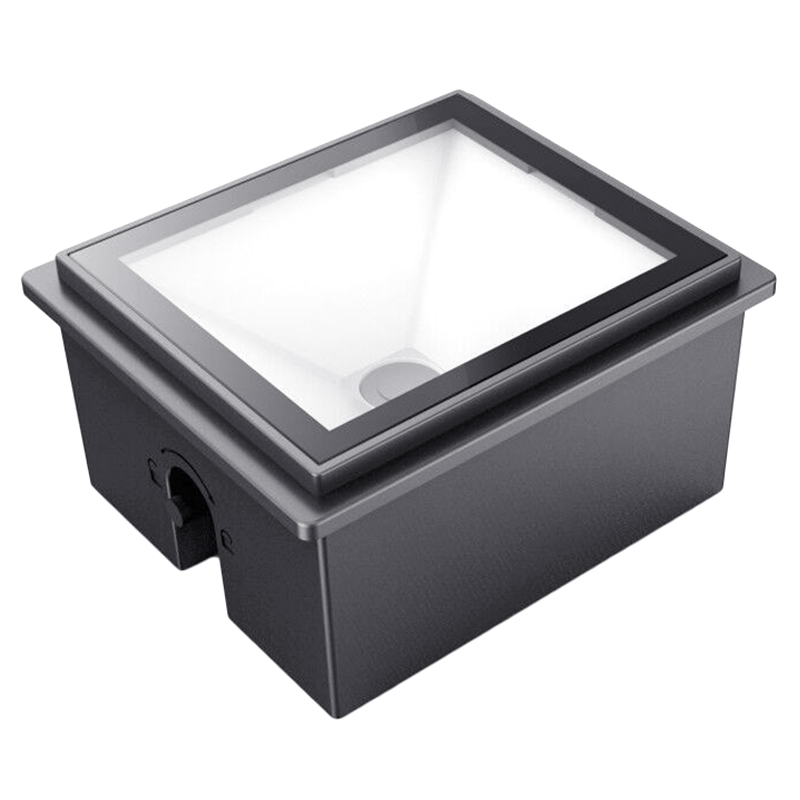

SNR-ES8000Y Fixed Mount Barcode Scanner
SNR-ES8000Y is a wide-angle fixed mount barcode scanner designed for access control terminals, self-service kiosks, POS terminals, ticketing machines and smart lockers. It supports 1D / 2D barcode reading, mobile screen QR code scanning, 640 × 480 CMOS sensor, white LED illumination, wide field of view and USB / RS232 / RS485 / TTL / Wiegand interfaces.
"*" indicates required fields
Wide-Angle 2D Barcode Scanner Module for Kiosks, Access Control and POS Terminals
The SNR-ES8000Y fixed mount barcode scanner is a wide-angle embedded barcode reader designed for access control terminals, self-service kiosks, ticketing machines, POS terminals, smart lockers and other automated equipment.
With a 640 × 480 CMOS image sensor, wide-angle scanning design, white LED illumination and multiple interface options including USB, RS232, RS485, TTL and Wiegand, SNR-ES8000Y provides reliable 1D and 2D barcode reading for printed codes and mobile screen QR codes in unattended self-service environments.
Key Features
- Wide-angle fixed mount barcode scanner
- Supports 1D and 2D barcode reading
- 640 × 480 CMOS image sensor
- Reads printed barcodes and mobile screen QR codes
- Wide field of view: 87.1° diagonal, 74° horizontal, 65° vertical
- White LED illumination
- USB, RS232, RS485, TTL and Wiegand interface options
- Suitable for access control and QR code entry systems
- Compact embedded size: 78 × 66.2 × 41mm max
- Ambient light adaptability: 0–100,000 LUX
- Supports QR Code, Data Matrix, PDF417, Aztec, Code 39, Code 128, EAN and UPC
- Designed for kiosks, POS terminals, ticketing equipment and smart lockers
Applications
- Access control terminals
- QR code entry systems
- Visitor verification devices
- Self-service kiosks
- Payment kiosks
- Ticketing machines
- Ticket validation terminals
- POS terminals
- Smart lockers
- Pickup code scanning terminals
- E-ticket verification systems
- Membership identification terminals
- Coupon and payment code scanning
- Automated service equipment
Integration Options
SNR-ES8000Y is designed for OEM equipment manufacturers and system integrators that need flexible interface options for embedded barcode scanning.
Available interfaces:
USB，RS232，RS485，TTL，Wiegand
The scanner can be integrated with kiosk systems, access control controllers, embedded Linux / Windows platforms, POS terminals, industrial control boards and custom OEM hardware.
Its Wiegand interface option makes it especially suitable for access control terminals, visitor management systems and QR code entry devices.
Technical Specifications
| Item | Specification |
|---|---|
| Model | SNR-ES8000Y |
| Product Type | 2D Fixed Mount Barcode Scanner |
| Image Sensor | 640 × 480 CMOS |
| Illumination | White LED |
| Resolution | ≥5mil |
| Symbol Contrast | ≥20% |
| Scan Angle | Skew ±70°, Pitch ±70°, Roll 360° |
| Field of View | Diagonal 87.1°, Horizontal 74°, Vertical 65° |
| Interfaces | USB / RS232 / RS485 / TTL / Wiegand |

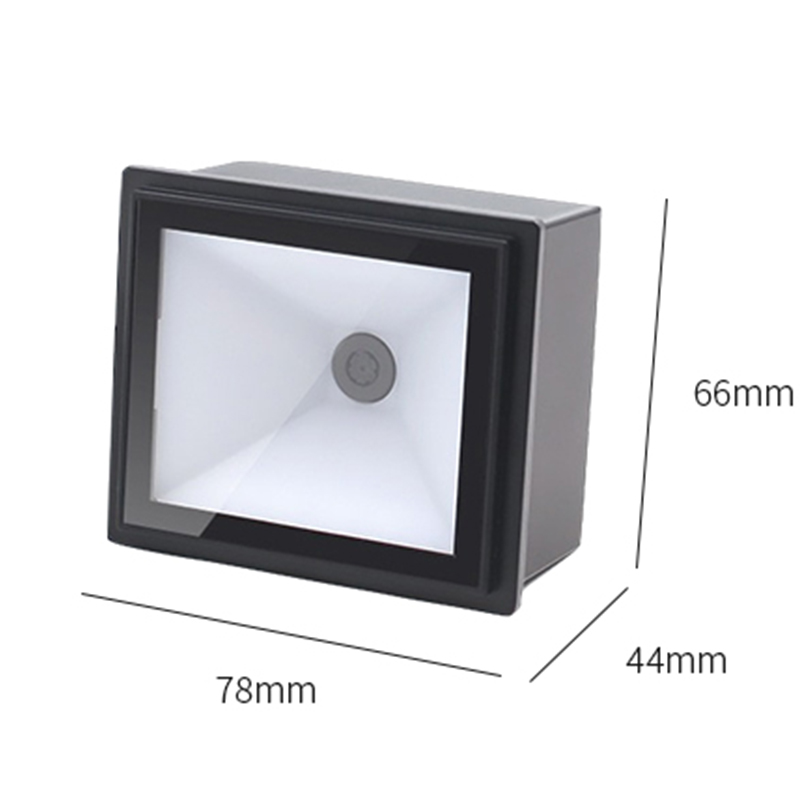

| Dimensions | 78(W) × 66.2(D) × 41(H) mm max |
| Operating Voltage | 5VDC ±5% |
| Power Consumption | 1400mW typical |
| Operating Current | 280mA RMS typical, 300mA RMS max @ 5VDC |
| Standby Current | 150mA |
| Operating Temperature | 0℃ to +60℃ |
| Storage Temperature | -40℃ to +70℃ |
| Operating Humidity | 5% to 95%, non-condensing |
| Ambient Light | 0 to 100,000 LUX |
Supported Barcode Types
2D barcodes:
PDF417，QR Code，Micro QR，Data Matrix，Aztec，Hanxi Code
1D barcodes:
Codabar，Code 39，Code 32，Industrial 2 of 5，Interleaved 2 of 5，Standard 2 of 5，Matrix 2 of 5，Code 93，Code 11，Code 128，UPC-A，UPC-E，EAN/JAN-8，EAN/JAN-13，GS1 DataBar
Typical Decode Range
| Barcode Type | Decode Range |
|---|---|
| EAN-13, 13mil | 5mm – 90mm |
| PDF417, 6mil | 5mm – 55mm |
| Code 39, 6.6mil | 18mm – 45mm |
| Data Matrix, 10mil | 5mm – 60mm |
| QR Code, 15mil | 5mm – 80mm |
Why Choose SNR-ES8000Y?
SNR-ES8000Y is suitable for embedded equipment projects that require wide-angle barcode reading, flexible interface support and stable unattended operation.
Compared with standard embedded scanner modules, SNR-ES8000Y provides a wider field of view, helping improve scanning usability when users present mobile QR codes or printed barcodes from different angles. With USB, RS232, RS485, TTL and Wiegand interfaces, it is especially practical for access control, kiosk, POS, ticketing and smart locker integration projects.
Related Models
SNR-ES2300 – Compact fixed mount barcode scanner with 640 × 480 CMOS sensor
SNR-ES2600 – Fixed mount barcode scanner with 1280 × 800 CMOS sensor and red cross aiming
SNR-ES3000 – Embedded barcode scanner module for kiosk and automated equipment integration
SNR-ES8280 – Fixed mount barcode scanner for self-service terminals and embedded systems
FAQ
What is SNR-ES8000Y used for?
SNR-ES8000Y is used as an embedded barcode scanner module for access control systems, self-service kiosks, ticketing terminals, POS terminals, smart lockers and other automated equipment.
Is SNR-ES8000Y a fixed mount barcode scanner?
Yes. SNR-ES8000Y is designed for fixed installation inside equipment housings, front panels or terminal structures.
Does SNR-ES8000Y support QR code scanning?
Yes. It supports QR Code, Micro QR, Data Matrix, PDF417, Aztec and other 2D barcode formats.
Can SNR-ES8000Y scan mobile phone screen codes?
Yes. SNR-ES8000Y can scan mobile screen QR codes as well as printed barcodes.
What interfaces does SNR-ES8000Y support?
SNR-ES8000Y supports USB, RS232, RS485, TTL and Wiegand interfaces.
Is SNR-ES8000Y suitable for access control systems?
Yes. With Wiegand and multiple communication interface options, SNR-ES8000Y is suitable for access control terminals, visitor systems and QR code entry devices.
What is the size of SNR-ES8000Y?
The maximum size is 78(W) × 66.2(D) × 41(H) mm.
What is the operating voltage?
SNR-ES8000Y supports 5VDC ±5% operating voltage.
