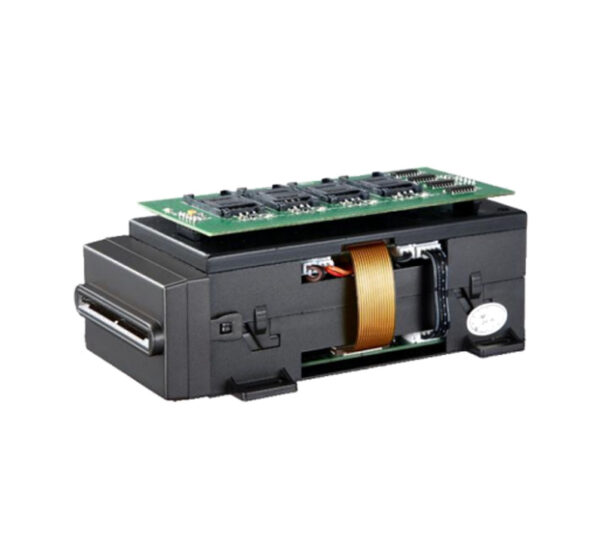

SNR-MR100 Motorized IC/RFID/Magnetic Card Reader Writer
SNR-MR100 is a motorized IC / RFID / magnetic card reader writer designed for ATMs, banking kiosks, SIM terminals, gaming kiosks, parking systems and unattended self-service equipment. It supports ISO7816 IC card read/write, ISO14443 RFID card read/write, magnetic stripe card reading, RS232 communication, dual protective gates, power-down card eject, optional PSAM and EMV / PBOC certification.
"*" indicates required fields
Motorized Card Reader Writer for Banking Kiosks, ATMs, SIM Terminals and Self-Service Systems
The SNR-MR100 is a motorized card reader writer designed for unattended self-service terminals that require secure card insertion, retention, reading, writing and controlled card ejection.
It integrates contact IC card read/write, RFID contactless card read/write and magnetic stripe card reading in one compact device. With a dual protective gate design, modular structure, power-down eject support and industrial-grade card transport mechanism, SNR-MR100 is suitable for banking kiosks, ATMs, telecom SIM terminals, gaming kiosks, lottery terminals, parking systems and toll collection equipment.
The card passage structure uses high-strength composite plastic with stainless steel reinforcement on both sides, improving mechanical strength, card positioning accuracy and long-term durability.
Key Features
- Motorized IC / RFID / magnetic card reader writer
- Contact IC card read/write support
- Contactless RFID card read/write support
- Magnetic stripe card reading support
- Dual protective gate design
- Primary mechanical gate for dust and foreign object protection
- Secondary motorized gate for enhanced card entry control
- Supports power-down card eject function
- Optional PSAM support
- Dust-resistant and foreign-object-resistant bezel design
- RS232 communication interface
- Compatible with multiple card communication protocols
- Modular structure for easier maintenance
- Supports SIM card operation
- EMV and PBOC certified
- Suitable for unattended kiosk and financial terminal applications
Applications
- ATMs
- Banking self-service kiosks
- Financial service terminals
- Telecom SIM vending terminals
- SIM card activation terminals
- Gaming kiosks
- Lottery terminals
- Player tracking systems
- VIP loyalty card systems
- Parking payment kiosks
- Toll collection systems
- Access control terminals
- Government service kiosks
- Membership card terminals
- Industrial self-service terminals
Technical Specifications
Card Support
| Item | Specification |
|---|---|
| Model | SNR-MR100 |
| Product Type | Motorized IC / RFID / Magnetic Card Reader Writer |
| Contact IC Card | ISO7816-1 / 2 / 3 / 4 standard |
| CPU Card Protocol | T=0, T=1 CPU card |
| PSAM Card Protocol | T=0, T=1 PSAM card |
| Contactless Card | ISO/IEC 14443 Type A & Type B |
| RFID Card Support | Mifare 1 S50, S70, UL card, Mifare Plus, Mifare Desfire |
| Magnetic Card | ISO/IEC 7810 ID-1, ISO/IEC 7811-1 / 2 / 6 |
| Magnetic Card Function | Read only |
| IC / RFID Function | Read and write |
Card Specification
| Item | Specification |
|---|---|
| Card Material | Paper card and PC card |
| Card Width | 54 ± 0.5mm |
| Card Length | 85 ± 0.5mm |
| Card Thickness | 0.76–0.9mm |
Electrical and Interface
| Item | Specification |
|---|---|
| Power Supply | DC12V |
| Idle Current | <0.1A |
| Peak Current | <2A |
| Interface | RS232 |
| Power-Down Card Handling | Supports power-down eject card function |
| PSAM | Optional |
Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temperature | -5℃ to 50℃ |
| Operating Humidity | 0%–90% RH |
Reliability and Certification
| Item | Specification |
|---|---|
| Drive Parts Lifetime | 800,000 cycles |
| Magnetic Head Lifetime | 1,000,000 cycles |
| IC Card Contact Lifetime | 800,000 cycles |
| Certification | EMV / PBOC |
| Weight | About 0.4kg |
Functional Design
Dual Protective Gate Structure
SNR-MR100 uses a dual protective gate design. The primary mechanical gate helps block dust and foreign objects, while the secondary motorized gate provides additional card entry control. This design improves operational reliability in unattended terminals and helps reduce card passage contamination.
Multi-Card Reading and Writing
The device supports contact IC cards, RFID contactless cards and magnetic stripe cards in one integrated module. It is suitable for applications where one terminal needs to support multiple card technologies.
Power-Down Card Protection
SNR-MR100 supports power-down card eject functionality. This helps prevent user cards from being retained inside the terminal during unexpected power failure, reducing service risk and improving user experience.
Modular Maintenance Design
The modular assembly structure helps simplify maintenance, replacement and field service. This is especially useful for large-scale deployments of banking, telecom, gaming and parking kiosks.
Why Choose SNR-MR100?
SNR-MR100 is suitable for self-service systems that require secure card control, multi-card compatibility and long-term mechanical reliability.
Compared with standard manual card readers, SNR-MR100 provides motorized card transport, controlled card retention, power-down card handling, dual protective gates, IC / RFID read-write capability and magnetic stripe reading in one module. These features make it practical for high-security and unattended environments such as banking kiosks, ATMs, SIM vending terminals, parking payment machines and gaming systems.
For projects requiring reliable motorized card handling and multi-standard card support, SNR-MR100 provides an integrated card reader writer solution.
Related Models
SNR Card Dispenser Series – Motorized card dispensing modules for kiosks and self-service terminals
SNR Motorized Card Reader Series – Card reader modules for banking, access control and payment terminals
SNR-KP802-VX – Heavy-duty kiosk thermal printer for unattended self-service systems
SNR-KP800-VX – Industrial kiosk printer for tickets and receipts
SNR-ES8200 – Fixed mount 2D barcode scanner for kiosks and access control terminals
FAQ
What is SNR-MR100 used for?
SNR-MR100 is used as a motorized card reader writer for ATMs, banking kiosks, telecom SIM terminals, gaming kiosks, lottery systems, parking payment terminals and other self-service equipment.
What card types does SNR-MR100 support?
It supports contact IC cards, contactless RFID cards and magnetic stripe cards. IC and RFID cards support read/write operation, while magnetic stripe cards support reading.
Does SNR-MR100 support EMV smart cards?
Yes. SNR-MR100 supports ISO7816 contact IC cards and is EMV / PBOC certified.
Does it support contactless RFID cards?
Yes. It supports ISO/IEC 14443 Type A and Type B contactless cards, including Mifare 1 S50, S70, UL, Mifare Plus and Mifare Desfire.
Does it support magnetic stripe cards?
Yes. SNR-MR100 supports magnetic stripe card reading compliant with ISO/IEC 7810 ID-1 and ISO/IEC 7811 standards.
What communication interface does SNR-MR100 use?
The standard specification lists RS232 as the communication interface.
Does SNR-MR100 support power-down card eject?
Yes. It supports power-down eject card functionality to help prevent card retention during unexpected power failure.
Is PSAM supported?
Yes. PSAM support is available as an option.
Is SNR-MR100 suitable for banking kiosks?
Yes. Its motorized card handling, dual protective gate design, EMV / PBOC certification and IC / RFID / magnetic card support make it suitable for banking kiosks and ATM-related applications.
What is the expected service life?
The drive parts support up to 800,000 cycles, the magnetic head supports up to 1,000,000 cycles, and the IC card contact supports up to 800,000 cycles.
