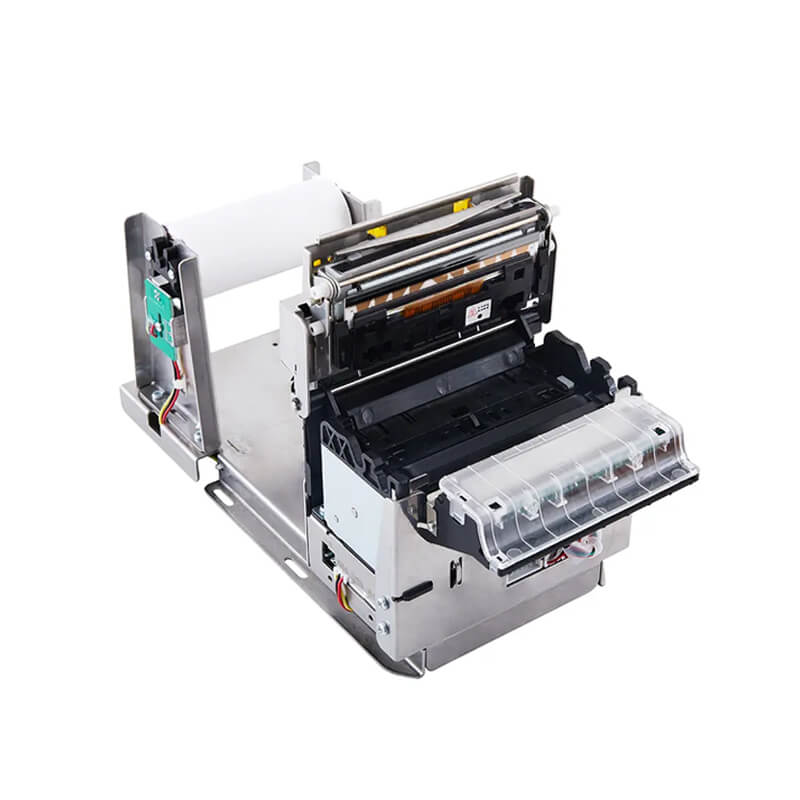

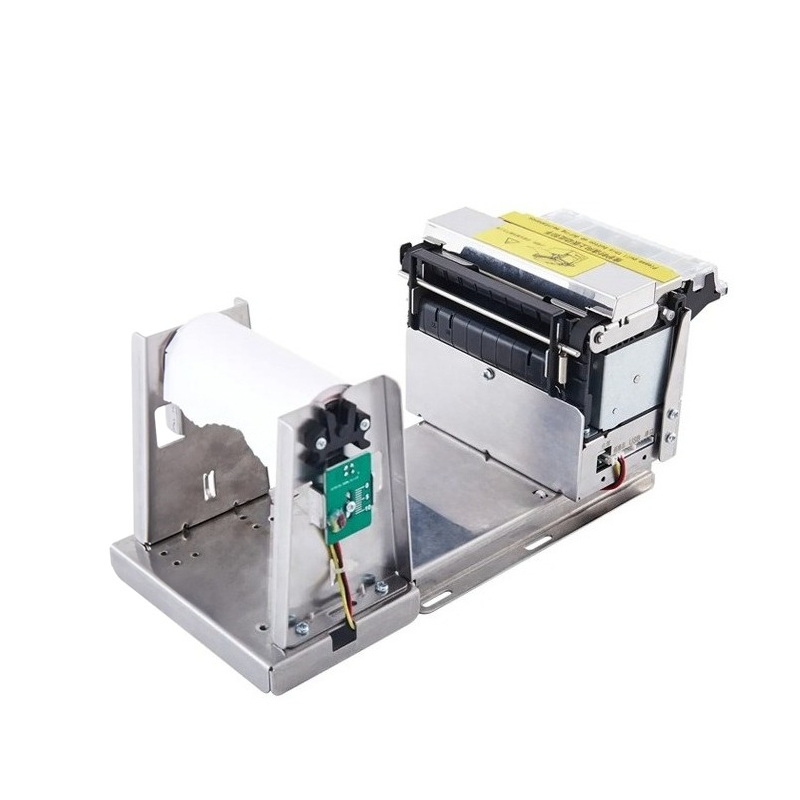

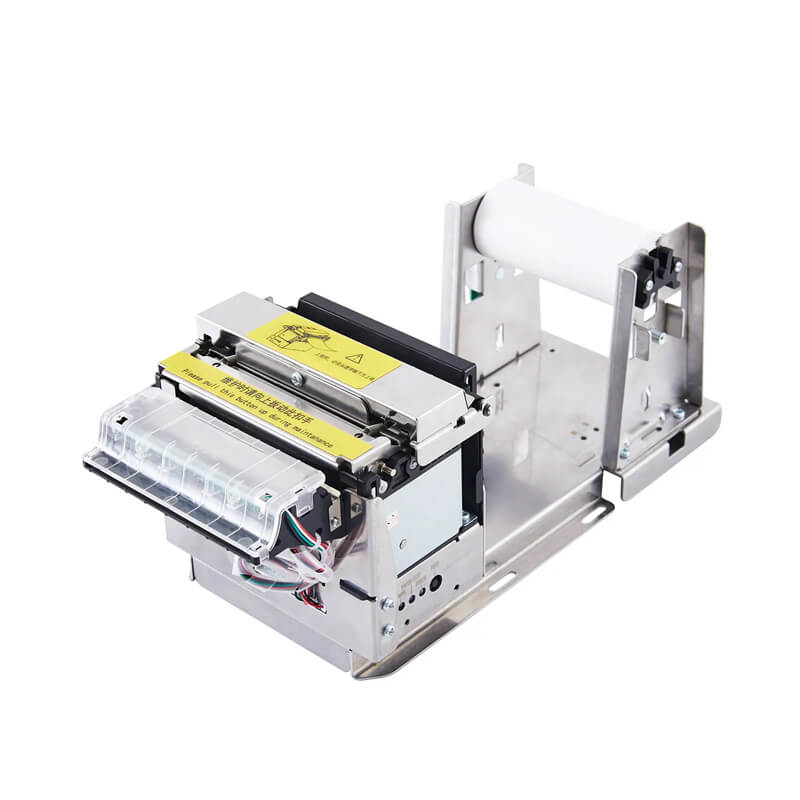

SNR-KP805 Kiosk Thermal Printer Module
SNR-KP805 is an 80mm kiosk thermal printer module designed for banking kiosks, parking payment terminals, queue management systems, ticket machines and self-service kiosks. It features 150mm/s printing speed, 203 dpi resolution, 72mm effective print width, 80mm / 82.5mm paper support, 150mm paper roll capacity, USB + RS232 interfaces, anti-jam and anti-pull protection, 1,000,000-cut auto cutter and 100km print head life.
"*" indicates required fields
80mm Kiosk Thermal Printer for Banking, Parking, Queuing and Self-Service Systems
The SNR-KP805 is an 80mm kiosk thermal printer module designed for banking kiosks, parking payment terminals, queue management systems, ticket machines, self-service checkout terminals and unattended vending kiosks.
With a maximum printing speed of 150mm/s, support for 80mm / 82.5mm thermal paper, large paper roll capacity up to 150mm, USB + RS232 interfaces and heavy-duty auto cutter, SNR-KP805 provides reliable receipt and ticket printing for high-traffic public self-service environments.
Its anti-jamming and anti-pulling protection helps reduce service interruptions caused by paper blockage, user interference or improper ticket pulling, making it suitable for unattended terminals that require stable long-term operation.
Key Features
- 80mm kiosk thermal printer module
- Supports 80mm and 82.5mm thermal paper
- Printing speed up to 150mm/s
- 203 dpi resolution, 8 dots/mm
- 576 dots per line
- Effective printing width up to 72mm
- Large paper roll support up to 150mm diameter
- Supports thermal receipt paper and black mark paper
- Heavy-duty auto cutter
- Cutter life up to 1,000,000 cuts
- Print head life up to 100km
- Anti-jamming protection
- Anti-pulling paper protection
- Emergency cut protection against user interference
- USB + RS232 communication interfaces
- Adjustable baud rate from 1200bps to 115200bps
- Drop-in paper loading for easier maintenance
- Suitable for high-frequency unattended operation
- Flexible integration with bracket or non-bracket installation options
Applications
- Banking kiosks
- ATM receipt printing
- Bank POS terminals
- Queue management systems
- Hospital registration kiosks
- Government service terminals
- Parking payment terminals
- Parking ticket dispensers
- Bus ticket machines
- Rail ticket machines
- Ticket vending machines
- Self-service checkout systems
- Retail service kiosks
- Unattended vending kiosks
- Public service terminals
Technical Specifications
Printing Specifications
| Category | Item | Specification |
|---|---|---|
| Printing | Printing Method | Direct line thermal printing |
| Printing | Printing Speed | 150mm/s max |
| Printing | Resolution | 8 dots/mm, 203 dpi |
| Printing | Dots Per Line | 576 dots/line |
| Printing | Effective Printing Width | 72mm |
| Printing | Paper Type | Thermal receipt paper / black mark paper |
| Printing | Paper Width | 79.5 ± 0.5mm / 82 ± 0.5mm |
| Printing | Paper Thickness | 0.06–0.08mm |
| Printing | Paper Roll Diameter | 150mm max |
Reliability
| Category | Item | Specification |
|---|---|---|
| Reliability | Print Head Life | 100km |
| Reliability | Cutter Life | 1,000,000 cuts |
Interface and Communication
| Category | Item | Specification |
|---|---|---|
| Interface | Connectivity | USB + RS232 |
| Interface | Baud Rate | 1200bps to 115200bps, adjustable |
Electrical Specifications
| Category | Item | Specification |
|---|---|---|
| Power | Voltage | DC24V ±10% |
| Power | Current | 2A |
Environmental Specifications
| Category | Item | Specification |
|---|---|---|
| Environment | Operating Temperature | 0℃ to 50℃ |
| Environment | Operating Humidity | 10%–80% RH |
Functional Design
Large Paper Roll Capacity
SNR-KP805 supports paper rolls up to 150mm in diameter. This helps reduce paper refill frequency in high-traffic terminals such as banking kiosks, parking payment machines and queue management systems.
Anti-Jamming Protection
The anti-jamming function helps detect and reduce paper blockage risks during continuous unattended operation. This supports higher uptime in public environments.
Anti-Pulling Protection
The anti-pulling structure helps protect the printer when users pull tickets or receipts during output. The system can detect abnormal interference and trigger emergency cutting to reduce paper dislocation or mechanical damage.
Heavy-Duty Auto Cutter
With a cutter life of up to 1,000,000 cuts, SNR-KP805 is suitable for high-frequency ticket and receipt printing applications.
Easy Maintenance Design
Drop-in paper loading and a clean internal paper path help reduce maintenance time for kiosk operators and field service teams.
Why Choose SNR-KP805?
SNR-KP805 is suitable for self-service systems that require 80mm receipt or ticket printing, large paper roll capacity and stable unattended performance.
Compared with smaller 58mm kiosk printers, KP805 provides wider 80mm paper output, 72mm effective print width and up to 150mm paper roll capacity. Compared with standard receipt printer modules, it adds anti-jam and anti-pull protection, making it more suitable for public self-service environments where user behavior can be unpredictable.
For banking, parking, queuing, transportation and retail kiosk projects, SNR-KP805 provides a reliable 80mm kiosk thermal printer module with strong maintenance efficiency and long-life components.
What Experienced Integrators Usually Evaluate
When evaluating a kiosk printer for queue management, banking, parking or ticketing applications, system integrators commonly compare more than print speed alone.
- Paper roll capacity
- Maintenance accessibility
- Linux compatibility
- SDK availability
- Communication interfaces
- Anti-jam protection
- Anti-pull paper handling
- Auto cutter reliability
- Long-term deployment stability
For unattended self-service terminals, these factors often have a greater impact on deployment success than basic printing specifications alone.
Related Resources
- Kiosk Printer Hub
- How to Choose a Kiosk Printer in 2026
- Kiosk Printer Buying Guide
- 58mm vs 80mm Kiosk Printer
- Why Maintenance Accessibility Matters in Self-Service Kiosk Design
- How to Choose a Kiosk Printer for Banking Self-Service Terminals
- How to Choose a Kiosk Printer for Ticket Vending Machines
- Linux Kiosk Printer Integration Guide
- Kiosk Printer SDK Guide
- Why Paper Roll Capacity Matters More Than Many Teams Expect
- Banking Self-Service Terminal Hardware Solutions
- Queue Management System Hardware
- Parking Ticketing Solutions
- Ticket Vending Machine Hardware Solutions
- Self-Checkout Hardware Solutions
- Visitor Management Kiosk Solutions
Related Technical Downloads
The following technical resources may be useful during evaluation, integration and deployment:
- Kiosk Printer Linux Driver & SDK
- Kiosk Printer Windows Driver
- SDK Resources
- User Manuals
- Communication Protocol Documents
- CAD & Mechanical Drawings
Related Models
- SNR-KP800-VX – Higher printing speed, broader integration flexibility and stronger suitability for parking, banking and ticketing deployments.
- SNR-KP802-VX – High-end 80mm kiosk thermal printer with presenter and optional ticket retract function for unattended ticket delivery.
- SNR-EP602-TM – Compact 58mm / 60mm embedded thermal printer with high-speed output and large paper roll support.
- SNR-KP602-V – Vertical embedded 58mm / 60mm kiosk printer for compact terminals and receipt printing applications.
Frequently Asked Questions
What is SNR-KP805 used for?
SNR-KP805 is used as an 80mm kiosk thermal printer module for banking kiosks, ATMs, queue management systems, hospital registration terminals, parking payment systems, ticket machines, self-service checkout terminals and vending kiosks.
What paper width does SNR-KP805 support?
It supports 79.5 ± 0.5mm and 82 ± 0.5mm thermal paper.
What is the maximum printing speed?
The maximum printing speed is 150mm/s.
What is the maximum paper roll diameter?
The maximum paper roll diameter is 150mm.
Does SNR-KP805 support black mark paper?
Yes. It supports thermal receipt paper and black mark paper.
What is the effective printing width?
The effective printing width is 72mm.
What interfaces are available?
SNR-KP805 supports USB + RS232 interfaces.
What is the cutter lifetime?
The auto cutter is rated for up to 1,000,000 cuts.
What is the print head lifetime?
The print head life is up to 100km.
Is SNR-KP805 suitable for parking systems?
Yes. Its 80mm paper support, large paper roll capacity, anti-jam protection and anti-pull design make it suitable for parking payment terminals and parking ticket dispensers.
Is it suitable for queue management systems?
Yes. SNR-KP805 is suitable for queue ticket printing in banks, hospitals, government offices and customer service centers.
What is the difference between SNR-KP805 and SNR-KP800-VX?
SNR-KP805 is designed as a cost-effective 80mm kiosk printer solution for queue management, visitor registration, parking payment, banking and general self-service applications.
SNR-KP800-VX offers higher printing speed, broader deployment flexibility and is commonly selected for parking, banking and ticketing projects that require stronger integration capability.
When should I choose SNR-KP802-VX instead?
If your project requires presenter functionality, controlled ticket delivery or ticket retract capability, SNR-KP802-VX is generally the preferred solution.
Does SNR-KP805 support Linux integration?
Yes. Linux integration support, SDK resources and technical documentation are available for supported kiosk printer projects.
Read the Linux Kiosk Printer Integration Guide or visit our SDK & Drivers Center for related resources.
Is SNR-KP805 a cost-effective alternative to KP800-VX?
Yes. For projects that require 80mm receipt or ticket printing but do not need the full deployment flexibility of KP800-VX, SNR-KP805 can be considered as a cost-effective alternative.
