SNR-KP602-V Embedded Thermal Kiosk Printer
SNR-KP602-V is a compact 58mm / 60mm embedded thermal kiosk printer designed for self-service terminals, queue management systems, visitor kiosks, parking machines and ticketing equipment. It features vertical structure, side-flip cover, 200mm/s printing speed, 80mm paper roll support, automatic paper feeding, full / half auto cutting, anti-jam and anti-pull paper outlet, optional black mark function, RS232 / USB interfaces and SDK support for Windows, Linux, Android and Raspberry Pi.
"*" indicates required fields
58mm / 60mm Vertical Embedded Thermal Receipt Printer for Self-Service Kiosks
The SNR-KP602-V is a compact 58mm / 60mm embedded thermal printer module designed for self-service kiosks, queue management terminals, visitor registration systems, parking payment machines, ticketing equipment and compact receipt printing applications.
With a vertical structural design, side-flip cover, automatic paper feeding, auto cutter and integrated control board structure, KP602-V helps kiosk manufacturers reduce internal space requirements and simplify printer module integration.
It supports 58mm and 60mm thermal paper, paper roll diameter up to 80mm, printing speed up to 200mm/s, RS232 and USB communication, Windows / Linux driver support, and SDK resources for Windows, Linux, Android and Raspberry Pi platforms.
Key Features
- 58mm / 60mm embedded thermal kiosk printer
- Vertical structural design for slimmer kiosk layouts
- Side-flip cover for easy maintenance
- Supports paper roll diameter up to 80mm
- Automatic paper feeding
- Auto cutter with full cut / half cut support
- Cutter life up to 1,000,000 cuts
- SEIKO print head structure
- Rohm line thermal film for high-speed printing
- Printing speed up to 200mm/s
- Low noise and stable print quality
- Integrated control board and core mechanism
- Anti-jamming paper exit nozzle
- Anti-pulling paper outlet design
- Large gear design for stronger paper feeding force
- Optional black mark function
- Supports thermal paper roll
- RS232 and USB communication interfaces
- Windows driver for Windows 7 / 8 / 10 and Linux
- Demo and SDK for Windows / Linux / Android / Raspberry Pi
- Suitable for compact unattended kiosk systems
Applications
- Queue management systems
- Visitor management kiosks
- Parking entry and payment terminals
- Ticket vending machines
- Self-service kiosks
- Service number ticket machines
- Retail self-service terminals
- Lottery terminals
- Gaming machines
- Access control terminals
- Payment kiosks
- Advertisement machines
- Medical self-service terminals
- Industrial control terminals
- Compact receipt printing systems
Technical Specifications
Printing Specifications
| Item | Specification |
|---|---|
| Model | SNR-KP602-V |
| Product Type | 58mm / 60mm Embedded Thermal Kiosk Printer |
| Printing Method | Thermal dot line printing |
| Dots | 448 dots |
| Printing Speed | 200mm/s max |
| Print Width | 60mm max |
| Paper Width | 60mm max |
| Paper Thickness | 60–120μm |
| Paper Roll Diameter | Ø80mm max |
| Paper Feeding Method | Automatic suction paper, horizontal 180° |
| Paper Cutting Method | Full cut / half cut |
| Paper Feeding and Printing Life | 100km |
| Print Format | Invert, underline, italic, bold, etc. |
| Cutter Life | 1,000,000 cuts |
Fonts and Communication
| Item | Specification |
|---|---|
| Print Baud Rate | 9600 / 19200 / 38400 / 57600 / 115200 |
| ASCII Font | 9 × 17, 12 × 24 |
| Chinese Font | 24 × 24 dots |
| Communication Interface | RS232 / USB |
Detection Functions
| Detection Item | Specification |
|---|---|
| Print Head Temperature Detection | Temperature sensor |
| Rod Lift Detection | Mechanical switch |
| Paperless Detection | Photoelectric sensor |
| Black Mark Detection | Optional / Supported |
| Joint Detection | Supported |
Electrical Specifications
| Item | Specification |
|---|---|
| Operating Voltage | DC24V ±5%, 2A |
| Average Current | 2A @ 24V |
| Peak Current | 5.5A |
Thermal Paper Specifications
| Item | Specification |
|---|---|
| Paper Type | Thermal paper roll |
| Thermal Layer Position | Outer side of roll paper |
| Recommended Paper | TF50KS-E 65μm / PD160R 75μm / P350 62μm / Hansol Thermo 65 65μm |
Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temperature | -10℃ to 50℃, no condensation |
| Operating Humidity | 20%–85% RH, 80%RH at 40℃ |

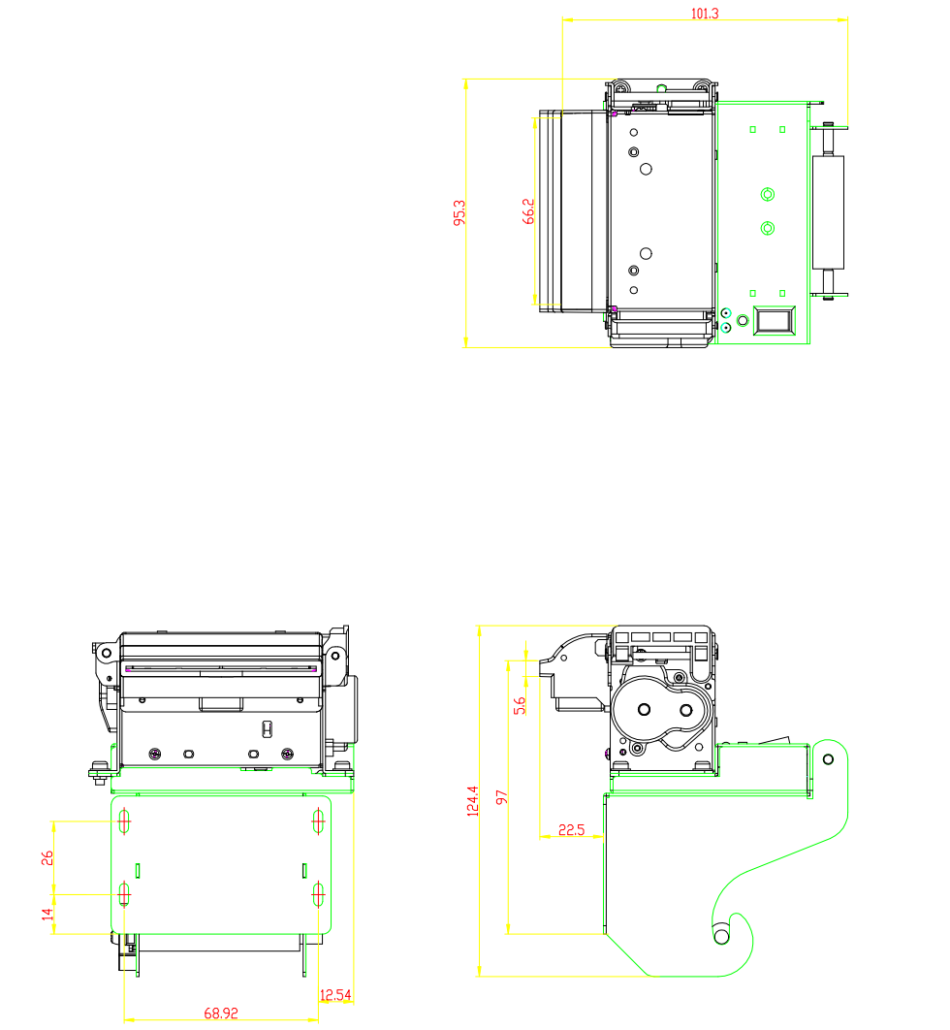

Mechanical Specifications
| Item | Specification |
|---|---|
| Length | 95.3mm |
| Width | 101.3mm |
| Height | 124.4mm |
| Weight | About 0.30kg, without paper roll, paper outlet and bracket |
Functional Design
Vertical Compact Structure
The vertical structural design helps reduce the printer footprint inside compact kiosk cabinets. It is suitable for slim self-service terminals where internal installation space is limited.
Side-Flip Cover for Easy Maintenance
The side-flip cover allows easier access for paper replacement and maintenance. This helps reduce service time in unattended kiosk deployments.
Auto Feeding and Auto Cutting
KP602-V supports automatic paper feeding and automatic cutting. Full cut and half cut can be configured according to receipt, ticket or kiosk application requirements.
Anti-Jam and Anti-Pull Design
The anti-jamming and anti-pulling paper exit structure helps reduce service interruptions caused by paper blocking, forced paper pulling or improper user interaction.
Black Mark Printing Option
The optional black mark function allows the printer to support black mark thermal paper for applications requiring accurate ticket positioning or fixed-length ticket output.
Why Choose SNR-KP602-V?
SNR-KP602-V is suitable for compact self-service terminals that need reliable 58mm / 60mm receipt or ticket printing in a limited installation space.
Compared with standard POS receipt printers, KP602-V provides an embedded vertical structure, integrated control board, side-flip cover, auto cutter, anti-jam paper outlet, anti-pull design and SDK support for multiple platforms. These features make it practical for queue management systems, visitor kiosks, parking systems, ticketing equipment and other unattended terminals.
For projects requiring a compact embedded thermal printer with automatic cutting and reliable kiosk integration, SNR-KP602-V provides a practical printer module solution.
What Experienced Integrators Usually Evaluate
When selecting a compact embedded kiosk printer, system integrators commonly evaluate:
- Installation space limitations
- Paper roll capacity
- Maintenance accessibility
- Linux compatibility
- SDK availability
- Communication interfaces
- Auto cutter reliability
- Expected print volume
- Ticket or receipt format requirements
For compact self-service terminals, these factors often have a greater impact on deployment success than print speed alone.
Related Resources
- Kiosk Printer Hub
- How to Choose a Kiosk Printer in 2026
- Kiosk Printer Buying Guide
- Presenter Printer vs Auto Cutter Printer
- 58mm vs 80mm Kiosk Printer
- Presenter kiosk printer for parking systems
- Why Kiosk Printers Jam in Real Self-Service Deployments
- Why Maintenance Accessibility Matters in Self-Service Kiosk Design
- Parking Ticketing Solutions
- Queue Management System Hardware
- Self-Checkout Hardware Solutions
- Visitor Management Kiosk Solutions
- How to Choose a Kiosk Printer for Ticket Vending Machines
- How to Choose a Kiosk Printer for Banking Self-Service Terminals
- Linux Kiosk Printer Integration Guide
- Kiosk Printer SDK Guide
- Why Paper Roll Capacity Matters More Than Many Teams Expect
Related Models
SNR-KP602-H – 58mm / 60mm high-speed kiosk thermal printer with horizontal structure and 250mm/s printing speed
SNR-KP602-VX – Compact kiosk printer model for self-service terminal applications
SNR-KP800-VX – 80mm kiosk thermal printer for ticket and receipt applications
SNR-KP802-VX – Heavy-duty 80mm kiosk printer for unattended self-service systems
SNR-EP602-TM – 58mm / 60mm embedded thermal printer with cutter
Related Technical Downloads
- Kiosk Printer Linux Driver & SDK
- Kiosk Printer Windows Driver
- SDK Resources
- User Manuals
- Communication Protocol Documents
- CAD Drawings
Frequently Asked Questions
What is SNR-KP602-V used for?
SNR-KP602-V is used as an embedded thermal printer for self-service kiosks, queue management systems, visitor management terminals, parking payment machines, ticketing systems and compact receipt printing applications.Common applications include queue management, visitor management, ticket vending and compact self-service terminals.
What paper width does SNR-KP602-V support?
It supports 58mm and 60mm thermal paper, with a maximum paper width of 60mm.
What is the maximum printing speed?
The maximum printing speed is 200mm/s.
What is the maximum paper roll diameter?
The maximum paper roll diameter is Ø80mm.
Does SNR-KP602-V support auto cutting?
Yes. It supports automatic cutting, with full cut and half cut options.
What is the cutter lifetime?
The cutter lifetime is up to 1,000,000 cuts.
Does SNR-KP602-V support black mark paper?
Yes. Black mark function is available as an option.
Does the printer support presenter functionality?
No. SNR-KP602-V is designed for embedded receipt and ticket output with auto cutting and anti-pull paper handling. For controlled presenter delivery or retract functions, other kiosk printer models should be selected according to the project requirement.
What interfaces are available?
SNR-KP602-V supports RS232 and USB communication interfaces.
Does it support Linux?
Yes. Linux driver support is available. SDK and demo resources are also available for Windows, Linux, Android and Raspberry Pi platforms.Read Linux Kiosk Printer Integration Guide.
Is SNR-KP602-V suitable for visitor management kiosks?
Yes. It is suitable for visitor registration terminals that issue check-in receipts, visitor tickets or access documents.Learn more about Visitor Management System Hardware.
Does SNR-KP602-V support SDK integration?
Yes. SDK resources are available for Windows, Linux, Android and Raspberry Pi platforms.Visit our SDK & Drivers Center for development resources.
Is SNR-KP602-V suitable for ticket vending applications?
Yes. KP602-V is suitable for compact ticket vending systems requiring receipt or ticket output in limited installation space.Learn more about Ticket Vending Machine Hardware Solutions.
