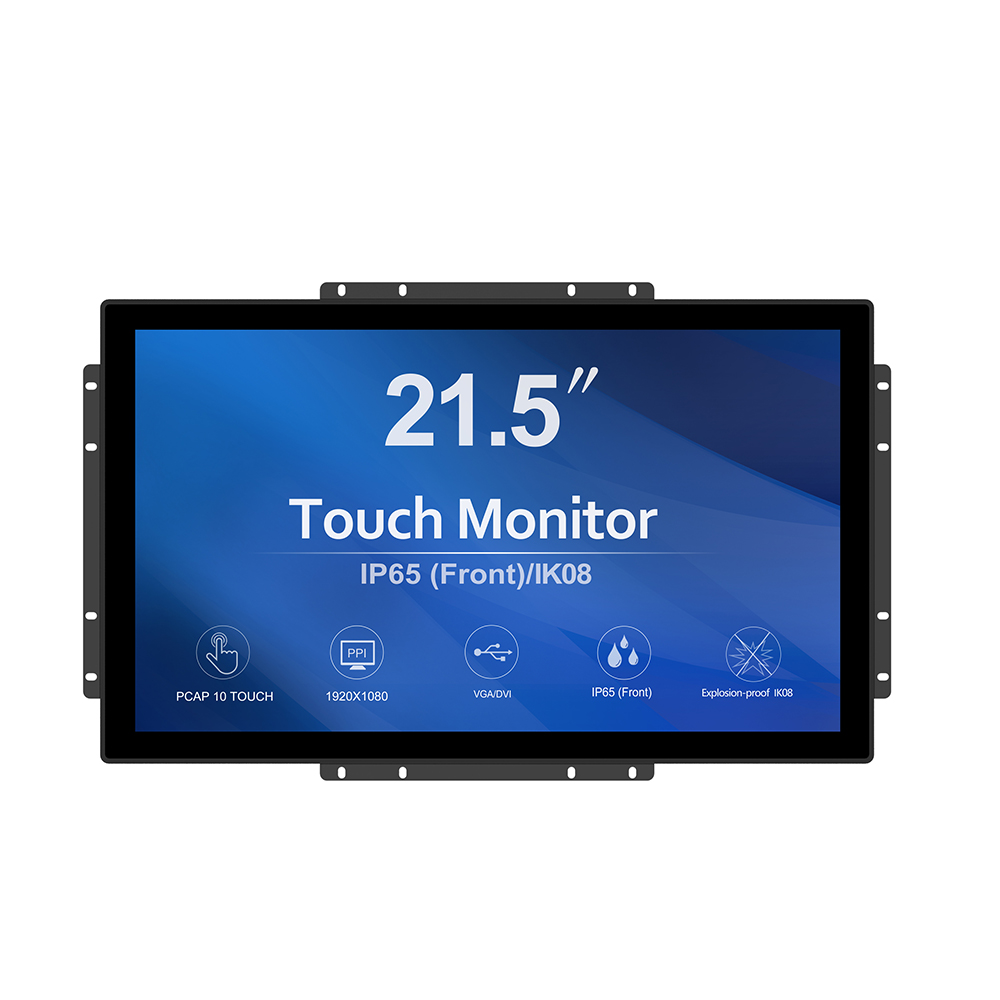

TM-2152C Open Frame LCD Touch Monitor
TM-2152C is a 21.5 inch open frame LCD touch monitor designed for kiosks, industrial automation, gaming systems and self-service terminals. It features 1920 × 1080 Full HD resolution, projected capacitive 10-point touch, G+G touch structure, 3mm tempered glass, front IP65 protection, IK08 vandal resistance, VGA / DVI / HDMI inputs and open bracket or VESA mounting.
"*" indicates required fields
21.5 Inch Projected Capacitive Touch Monitor for Kiosks, Industrial Automation and Commercial Display

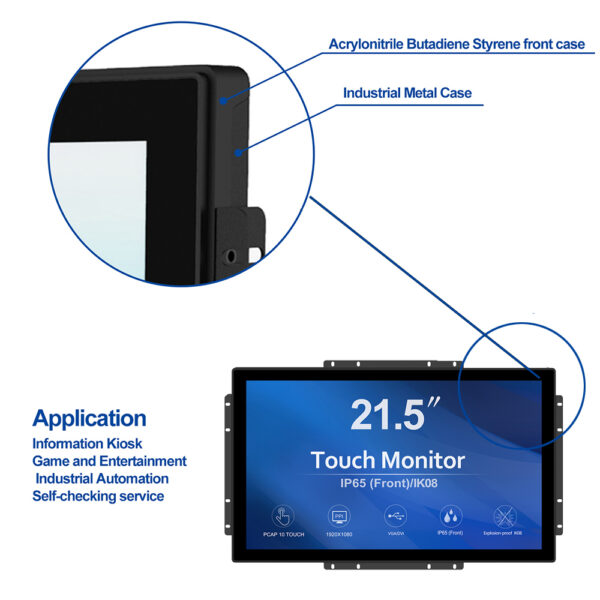

The TM-2152C open frame LCD touch monitor is a 21.5 inch commercial-grade touch display designed for information kiosks, self-service terminals, gaming systems, industrial automation equipment and embedded display applications.
Built with a 21.5 inch Full HD TFT-LCD panel, projected capacitive 10-point touch technology, tempered cover glass and rich display interfaces including VGA, DVI and HDMI, TM-2152C provides a reliable open frame touch display solution for system integrators and equipment manufacturers.
Its front touch surface is sealed to help protect against dust, dirt and liquid, supporting front IP65 water-resistant requirements. With open bracket mounting and VESA mounting options, it is suitable for embedded installation in kiosks, machines and professional display systems.
Key Features
- 21.5 inch open frame LCD touch monitor
- Full HD resolution: 1920 × 1080 @ 60Hz
- Projected capacitive 10-point touch
- G+G touch structure for optical clarity and touch durability
- 3mm tempered cover glass
- Front IK08 vandal-resistant protection
- Sealed touch surface for dust, dirt and liquid resistance
- Front IP65 water-resistant design
- VGA, DVI and HDMI input interfaces
- Optional DP input
- 16:9 widescreen aspect ratio
- 250 cd/m² brightness
- 1000:1 contrast ratio
- 5ms response time
- Digital OSD control
- Open bracket mounting and VESA mounting
- Commercial-grade design for embedded and self-service applications
- 50,000-hour demonstrated MTBF
Applications
- Information kiosks
- Self-service terminals
- Self-checking service terminals
- Industrial automation equipment
- Gaming and entertainment systems
- Retail display systems
- Ticketing machines
- Payment kiosks
- Queue management terminals
- Smart lockers
- Hotel self check-in kiosks
- Visitor registration terminals
- Embedded machine displays
- Commercial interactive displays
- Public service terminals
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Touch Screen Monitor |
| Model No. | TM-2152C |
| Product Type | Open Frame LCD Touch Monitor |
| Display Type | Active Matrix TFT-LCD, LED Backlight |
| Touch Technology | Projected Capacitive, 10 Points |
| Touch Structure | G+G |
| Cover Glass | 3mm tempered glass |
| Front Protection | IP65 water-resistant requirement |
| Vandal Resistance | IK08 front protection |
| Case / Frame Color | Black |
| Diagonal Size | 21.5 inch |
| Aspect Ratio | 16:9 |
| Overall Dimensions | 532(W) × 319(H) × 47(T) mm |
| Active Area | 476.6(H) × 268.1(V) mm |
| Display Colors | 16.7M |
| Resolution | 1920 × 1080 @ 60Hz |
| Brightness | 250 cd/m² |
| Response Time | 5ms |
| Viewing Angle | L/R: 89° / 89°, U/D: 89° / 89° |
| Contrast Ratio | 1000:1 typical |
| Input | VGA / DVI / HDMI, optional DP |
| Video Signal Connector | DE-15 VGA, DVI-D Dual-Link, HDMI connector |
| OSD | Digital OSD |
| User Controls | Menu, Up, Down, Select, Power |
| Power Input | External DC 12V |
| Operating Temperature | 0℃ to 40℃ |
| Storage Temperature | -20℃ to 60℃ |
| Operating Humidity | 20%–80% |
| Storage Humidity | 10%–90% |

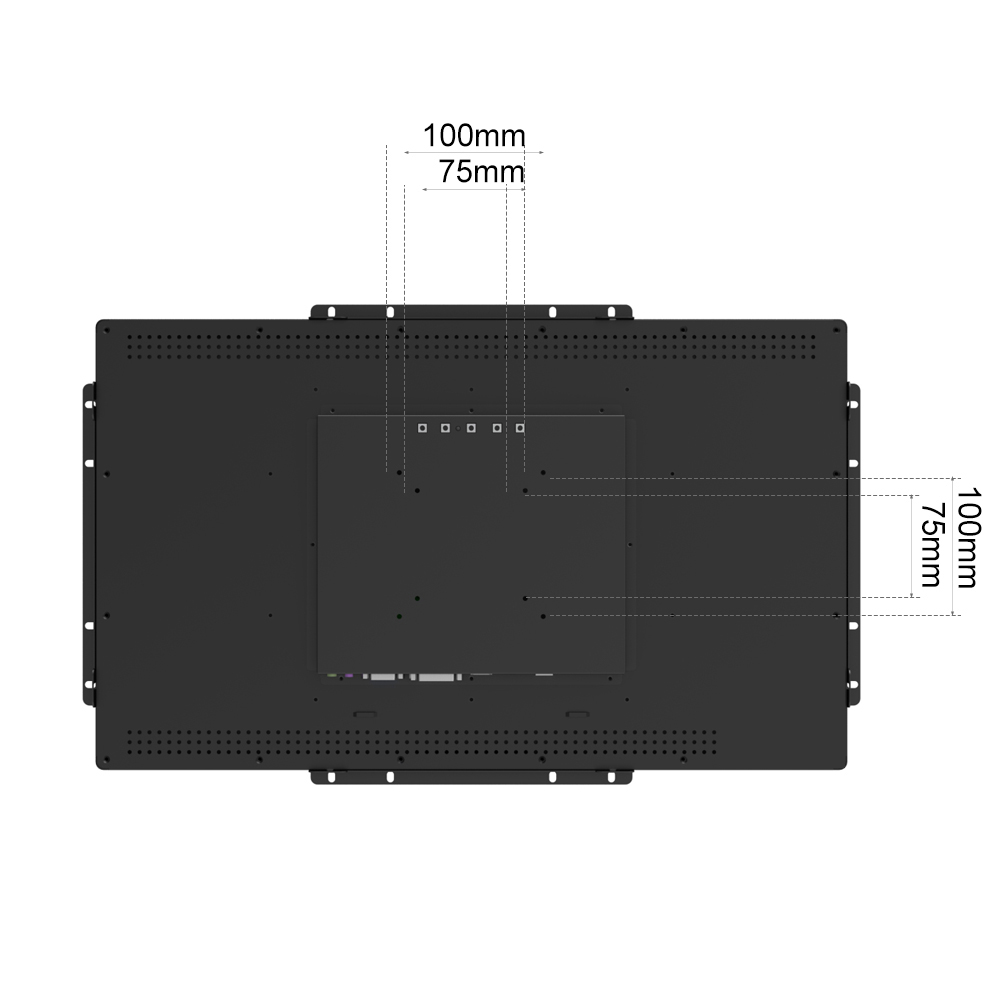

| Installation Options | Open bracket mounting / VESA mounting |
| Warranty | 1 year |
| Certificates | FCC / CE / RoHS / CB / HDMI |
| MTBF | 50,000 hours demonstrated |
Other Size Options
| Size | Model | Ratio | Overall Dimensions | Active Area | Brightness | Resolution | Net Weight |
|---|---|---|---|---|---|---|---|
| 10.1 inch | TM-1012C | 16:10 | 265 × 179.5 × 45mm | 216.96 × 135.6mm | 330 cd/m² | 1280 × 800 @60Hz | 2.8kg |
| 15 inch | TM-1502C | 4:3 | 355 × 279 × 47mm | 304 × 228mm | 330 cd/m² | 1024 × 768 @60Hz | 4.21kg |
| 15.6 inch | TM-1562C | 16:9 | 398 × 248 × 47mm | 344 × 193.5mm | 400 cd/m² | 1920 × 1080 @60Hz | 3.67kg |
| 17 inch | TM-1702C | 5:4 | 385 × 317 × 47mm | 337.9 × 270.3mm | 250 cd/m² | 1280 × 1024 @60Hz | 4.97kg |
| 18.5 inch | TM-1852C | 16:9 | 457 × 281 × 47mm | 409.8 × 230.4mm | 250 cd/m² | 1366 × 768 @60Hz | 4.98kg |
| 19 inch | TM-1902C | 5:4 | 430 × 355 × 47mm | 376.3 × 301mm | 250 cd/m² | 1280 × 1024 @60Hz | 5.9kg |
| 21.5 inch | TM-2152C | 16:9 | 532 × 319 × 47mm | 476.6 × 268.1mm | 250 cd/m² | 1920 × 1080 @60Hz | 6.3kg |
| 22 inch | TM-2202C | 16:10 | 527.2 × 350 × 60mm | 473.7 × 296.1mm | 250 cd/m² | 1680 × 1050 @60Hz | 7.5kg |
| 23.6 inch | TM-2362C | 16:9 | 581.8 × 350.8 × 60mm | 521.2 × 293.2mm | 250 cd/m² | 1920 × 1080 @60Hz | 7.7kg |
| 23.8 inch | TM-2382C | 16:9 | 586 × 356 × 47mm | 527 × 296.4mm | 250 cd/m² | 1920 × 1080 @60Hz | 7.55kg |
| 27 inch | TM-2702C | 16:9 | 655.7 × 396 × 55mm | 597.8 × 336.3mm | 300 cd/m² | 1920 × 1080 @60Hz | 10.38kg |
| 32 inch | TM-3202C | 16:9 | 749.1 × 452.7 × 65mm | 698.4 × 392.8mm | 400 cd/m² | 1920 × 1080 @60Hz | 13.3kg |
| 43 inch | TM-4302C | 16:9 | 1007.3 × 596.6 × 69mm | 940.8 × 529.2mm | 400 cd/m² | 1920 × 1080 @60Hz | 15.2kg |
| 49 inch | TM-4902C | 16:9 | 1141.9 × 672.2 × 71mm | 1073.7 × 604mm | 380 cd/m² | 1920 × 1080 @60Hz | 18.2kg |
| 55 inch | TM-5502C | 16:9 | 1277.7 × 748.5 × 70mm | 1209.6 × 680.4mm | 400 cd/m² | 1920 × 1080 @60Hz | 20.2kg |
Why Choose TM-2152C?
TM-2152C is suitable for professional projects that require a reliable open frame touch monitor with strong touch durability, flexible mounting and commercial-grade stability.
Compared with standard desktop monitors, TM-2152C provides projected capacitive 10-point touch, G+G structure, tempered cover glass, front IP65 sealing, IK08 vandal resistance and open frame installation support. These features make it practical for kiosks, industrial automation, gaming machines, public terminals and self-service equipment.
For system integrators building embedded touch display systems, TM-2152C offers a balanced 21.5 inch Full HD solution with stable display performance and durable front-panel protection.
What is TM-2152C used for?
TM-2152C is used as an open frame LCD touch monitor for information kiosks, self-service terminals, gaming systems, industrial automation equipment and embedded commercial displays.
What screen size does TM-2152C use?
TM-2152C uses a 21.5 inch TFT-LCD panel with 1920 × 1080 resolution.
Does TM-2152C support touch operation?
Yes. TM-2152C supports projected capacitive 10-point touch technology.
What display inputs are available?
TM-2152C supports VGA, DVI and HDMI inputs. DP input is optional.
Does TM-2152C support front IP65 protection?
Yes. The touch screen is sealed to meet front IP65 water-resistant requirements.
Is the front glass vandal-resistant?
Yes. TM-2152C uses 3mm tempered cover glass and supports front IK08 vandal-resistant protection.
What mounting methods are supported?
TM-2152C supports open bracket mounting and VESA mounting.
Is TM-2152C suitable for kiosks?
Yes. Its open frame structure, touch function, IP65 front protection and multiple input interfaces make it suitable for information kiosks, payment terminals and self-service equipment.
What operating temperature range does it support?
The operating temperature range is 0℃ to 40℃.
| Weight | N/A |
|---|---|
| Configuration | With Touchscreen, Non-Touchscreen |
