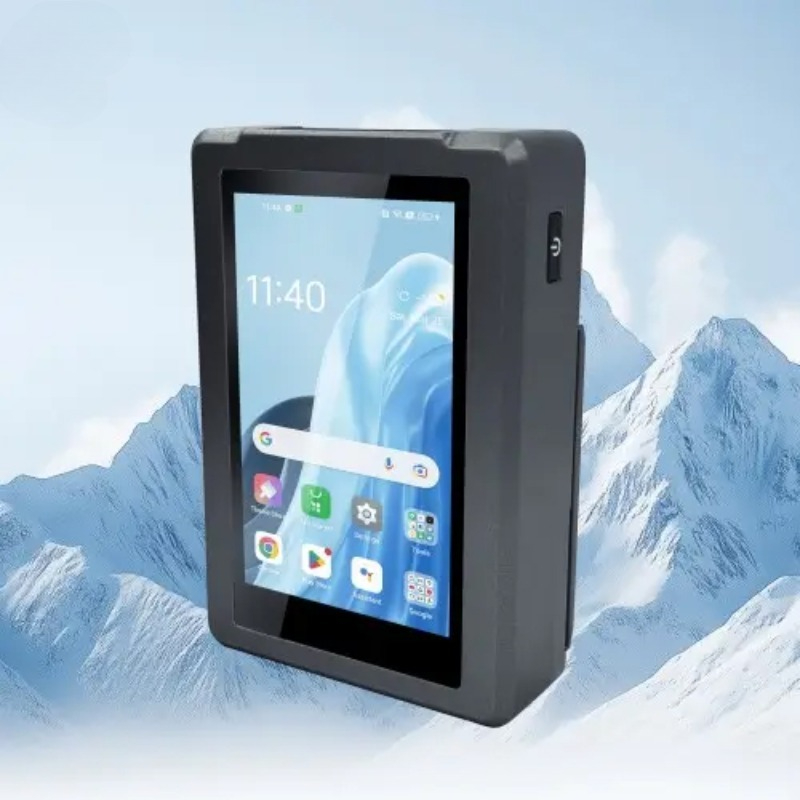

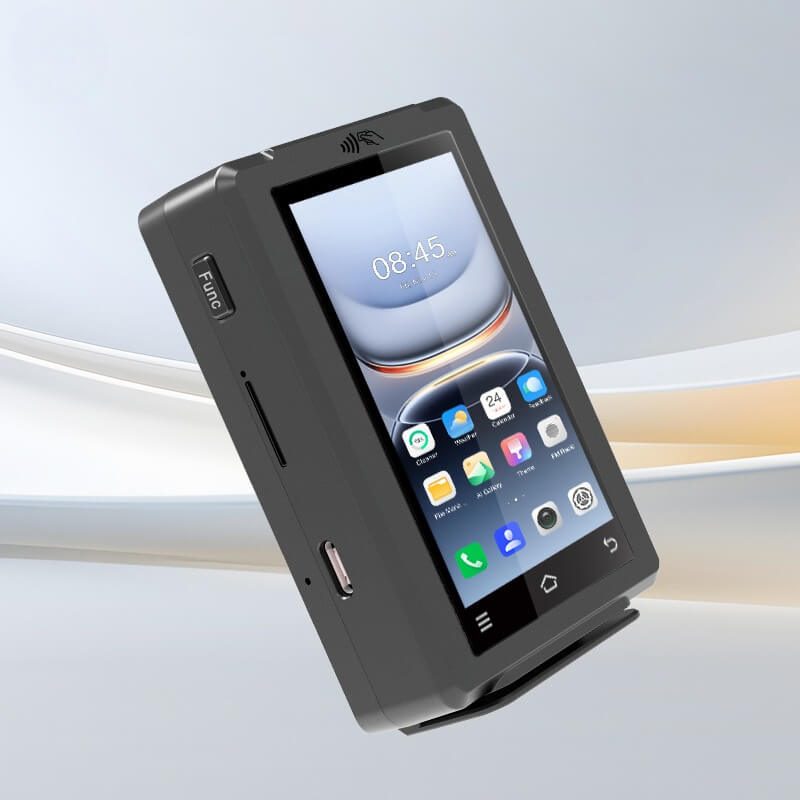

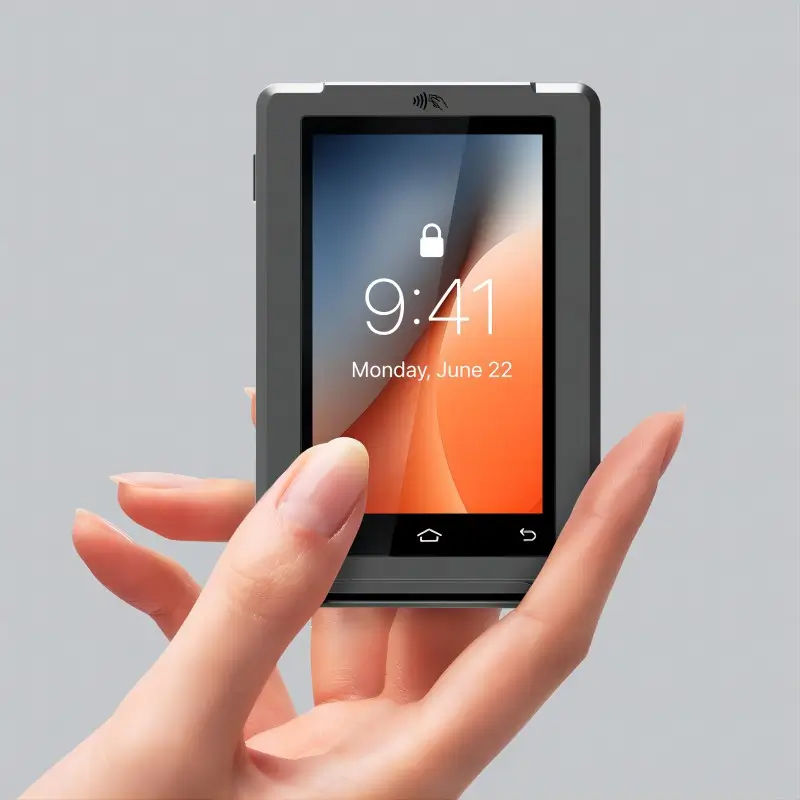

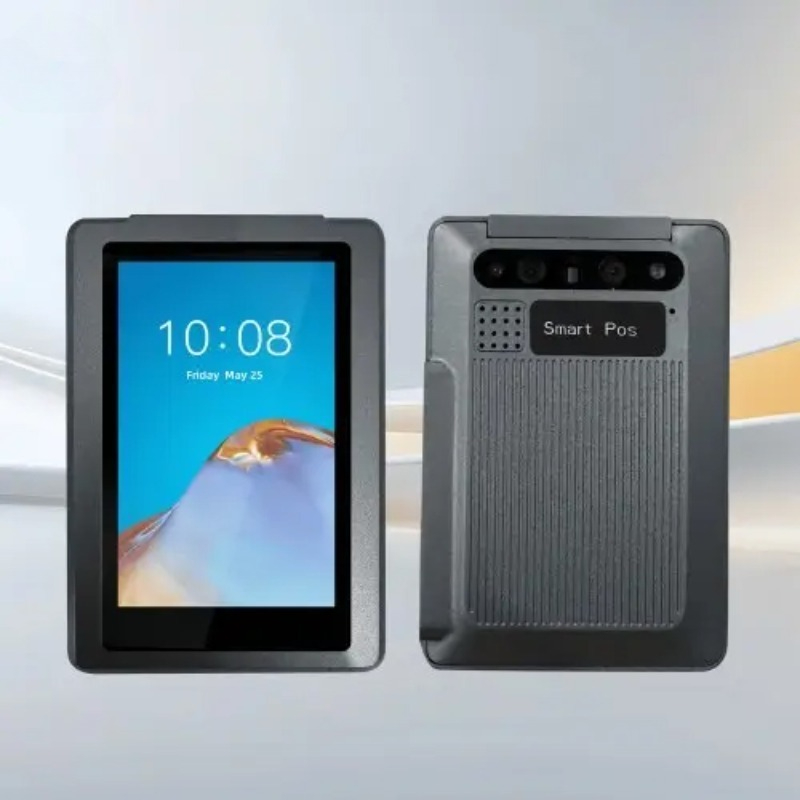

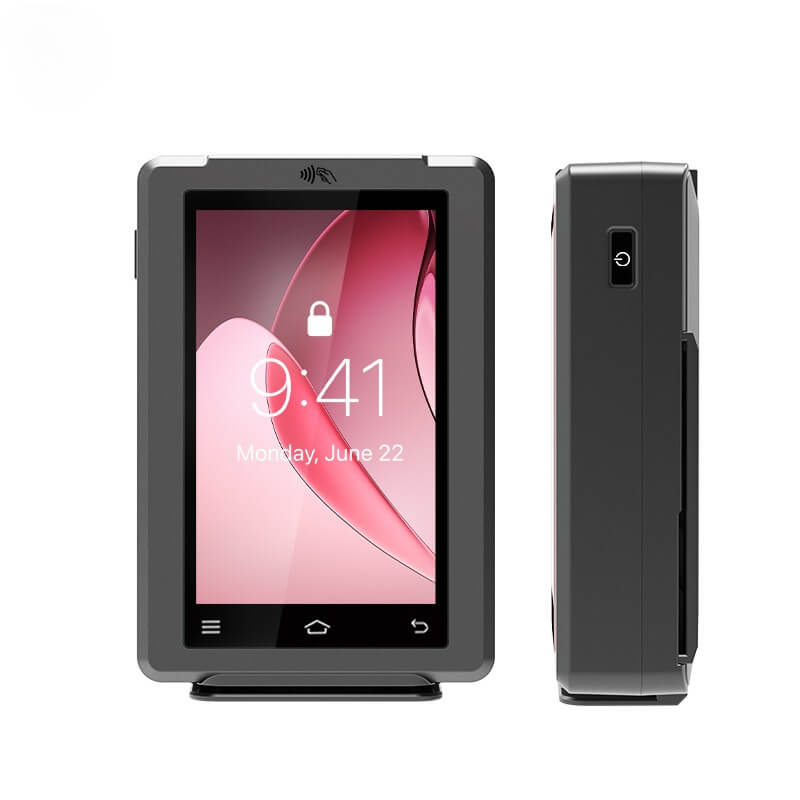

SNR-Z81 Mini Handheld Android POS Terminal
The SNR-Z81 Mini Handheld Android POS Terminal is an ultra-compact, pocket-sized smart merchant device engineered for absolute mobility, speed, and rugged field durability. Manufactured by a premier POS hardware provider with over 16 years of R&D expertise, the SNR-Z81 packs full enterprise desktop POS functionality into an ergonomic handset. Powered by the advanced Android 13 operating system and a high-performance quad-core processing unit, the terminal features a crisp 3.1-inch touch display, a built-in contactless NFC payment reader, and an incredibly versatile modular hardware framework. The SNR-Z81 represents the ultimate all-in-one data acquisition and payment clearing hub for logistics routing, mobile catering, pop-up retail, and transit ticket validation networks globally.
"*" indicates required fields
Compact Android 13 Mobile POS Terminal with NFC, QR Scanner, 4G LTE, Wi-Fi and TMS Support
The SNR-Z81 is a mini handheld Android POS terminal designed for mobile payment, retail checkout, hospitality ordering, courier delivery confirmation, event sales, public transportation ticketing and field service applications.
Built on Android 13, the SNR-Z81 integrates a smart POS runtime system, contactless NFC reader, 1D / 2D QR barcode scanning, dual SIM 4G LTE, dual-band Wi-Fi, Bluetooth 5.0, A-GPS and enterprise TMS support in one compact palm-sized device.
With optional hardware expansion such as fingerprint authentication, external secure PIN pad and external scanner support, SNR-Z81 provides a flexible mobile POS platform for merchants, service operators and system integrators.
Key Features
- Mini handheld Android POS terminal
- Compact all-in-one palm-grip design
- Android 13 operating system
- Quad-core processor up to 2.0GHz
- 2GB / 3GB LPDDR memory options
- 16GB / 32GB eMMC storage options
- 3.1-inch capacitive multi-touchscreen

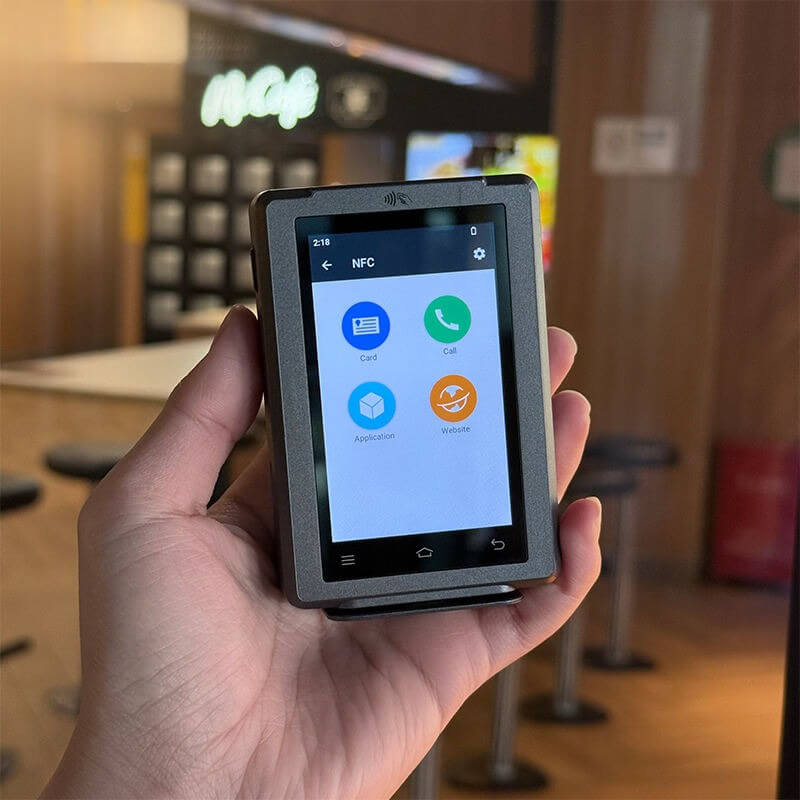

- Built-in NFC contactless card reader
- EMV L1 / L2 support
- PayPass and PayWave support
- Built-in 1D / 2D QR barcode imaging scanner
- Dual SIM card slots
- 4G LTE cellular network support
- GSM backward compatibility
- Dual-band Wi-Fi, 2.4GHz and 5GHz
- Bluetooth 5.0 Low Energy
- Integrated A-GPS location tracking
- TMS support for remote terminal management

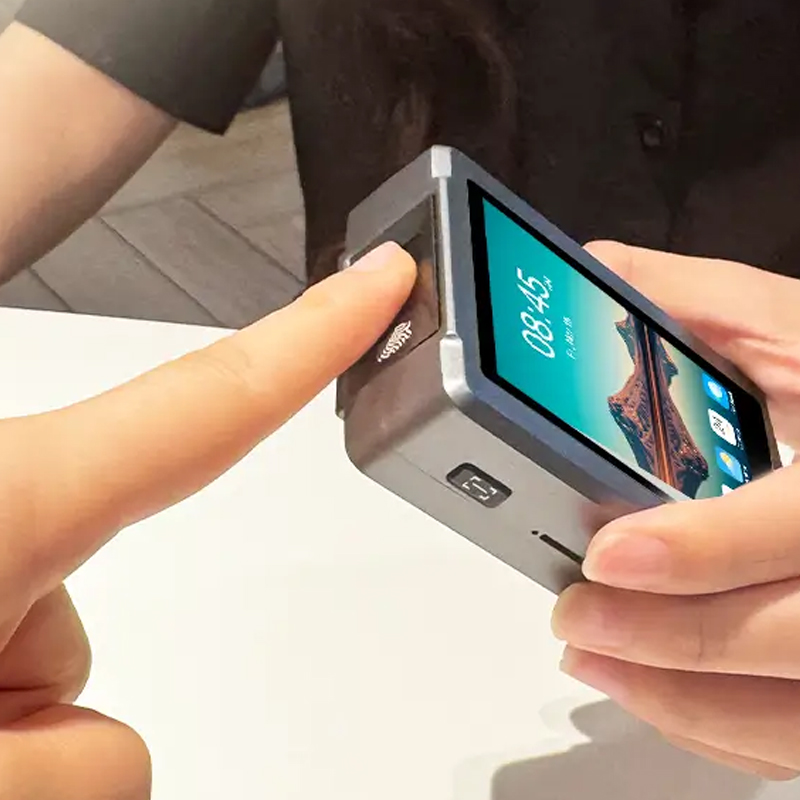

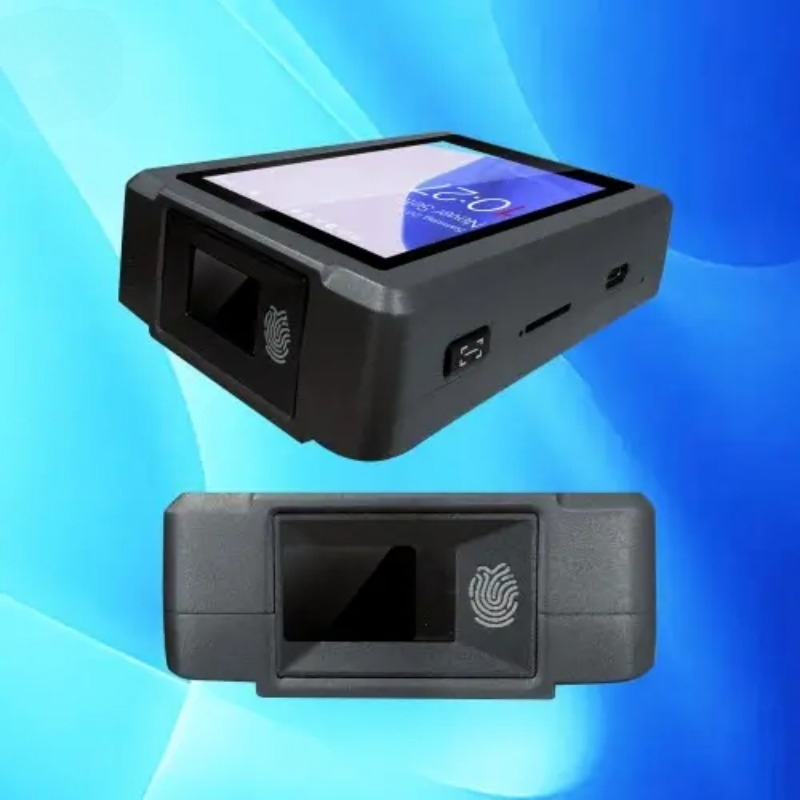

- Optional fingerprint authentication
- Optional external secure PIN pad
- Optional external scanner support
- 2800mAh rechargeable lithium-polymer battery
- Ruggedized handheld casing
- Suitable for mobile POS, ticketing, logistics and field service
Applications
- Mobile POS payment
- Retail store mobile checkout
- Pop-up shops
- Trade exhibition booths
- Food truck and event vendors
- Restaurant ordering
- Hospitality mobile service
- Courier delivery confirmation
- Last-mile logistics
- Package barcode scanning
- Public transportation ticketing
- Digital boarding pass verification
- Event ticket validation
- Inventory stock update
- QR coupon redemption
- Field sales order entry
- Mobile membership verification
Technical Specifications
System Configuration
| Category | Item | Specification |
|---|---|---|
| System | Operating System | Android 13.0 |
| System | Security Support | Security patched, enterprise database framework compatible |
| Processor | CPU | High-efficiency quad-core processor |
| Processor | Clock Speed | Up to 2.0GHz |
| Memory | RAM | 2GB / 3GB LPDDR options |
| Storage | ROM | 16GB / 32GB eMMC |
| Storage | Cloud Support | Supports enterprise cloud data storage depending on system configuration |
Display and User Interface
| Category | Item | Specification |
|---|---|---|
| Display | Screen Size | 3.1-inch |
| Display | Screen Type | High-clarity mini portable capacitive touchscreen |
| Touch | Touch Mode | Multi-touch |
Network and Connectivity
| Category | Item | Specification |
|---|---|---|
| Cellular | Network Type | 4G LTE |
| Cellular | Backward Compatibility | GSM compatible |
| SIM | SIM Slots | Dual SIM card slots |
| Wi-Fi | Wireless LAN | Dual-band Wi-Fi, 2.4GHz and 5GHz |
| Bluetooth | Version | Bluetooth 5.0 Low Energy |
| Navigation | Positioning | Integrated A-GPS |
Card Reading and Scanning
| Category | Item | Specification |
|---|---|---|
| NFC | Contactless Reader | Built-in proximity contactless card reader array |
| NFC | Compliance | EMV L1 & L2, PayPass, PayWave |
| Scanner | Optical Scanning | High-density 1D / 2D QR code imaging scanner |
| Scanner | Scanning Method | Rear camera array based scanning |
Enterprise Management and Expansion
| Category | Item | Specification |
|---|---|---|
| Fleet Management | TMS | Integrated Terminal Management System agent client |
| TMS Function | Bulk Configuration | Supported |
| TMS Function | Remote Firmware Update | Supported |
| TMS Function | OTA Update | Supported |
| Hardware Expansion | Fingerprint Reader | Optional |
| Hardware Expansion | External Secure PIN Pad | Optional |
| Hardware Expansion | External Scanner | Optional |
Battery and Physical Design
| Category | Item | Specification |
|---|---|---|
| Battery | Main Battery | 2800mAh rechargeable lithium-polymer battery |
| Enclosure | Design | Ergonomic single-handed pocket layout |
| Enclosure | Protection | Ruggedized field protective casing |
Compliance
| Category | Specification |
|---|---|
| Quality Compliance | CE, FCC, EMV L1 & L2, PCI, PayPass, PayWave, UnionPay |
| Factory Standard | ISO 9001 production criteria |
Why Choose SNR-Z81?
SNR-Z81 is suitable for projects that require a compact Android mobile POS terminal with NFC, barcode scanning, mobile network connectivity and enterprise management support.
Compared with basic handheld POS devices, SNR-Z81 combines Android 13, dual SIM 4G LTE, dual-band Wi-Fi, Bluetooth 5.0, A-GPS, contactless NFC, QR barcode scanning and TMS management in one small device. This makes it practical for mobile merchants, restaurants, logistics teams, event operators, pop-up shops and transit ticketing systems.
For software vendors and system integrators, SNR-Z81 provides a flexible Android POS platform that can support payment, scanning, data collection, inventory update, ticket validation and remote terminal management.
Related Models
SNR-MR900 – USB magnetic stripe reader writer for POS and hotel key encoding
SNR-MR100 – Compact magnetic stripe card reader for retail POS and membership systems
SNR-CD212-M8 – Single hopper magnetic / IC / RFID card issuing machine for self-service kiosks
SNR-K720 – RFID smart card dispenser for parking systems and access control terminals
SNR-ES8200 – Fixed mount 2D barcode scanner for kiosks and access control systems
FAQ
What is SNR-Z81 used for?
SNR-Z81 is used as a mini handheld Android POS terminal for mobile payment, retail checkout, hospitality ordering, logistics delivery confirmation, event sales, public transportation ticketing and field service applications.
What operating system does it use?
It runs Android 13.0.
Does SNR-Z81 support 4G network?
Yes. It supports 4G LTE cellular network and includes dual SIM card slots.
Does it support Wi-Fi?
Yes. It supports dual-band Wi-Fi, including 2.4GHz and 5GHz.
Does it support NFC contactless card reading?
Yes. It includes a built-in contactless NFC reader and supports EMV L1 / L2, PayPass and PayWave.
Can it scan QR codes and barcodes?
Yes. It supports high-density 1D / 2D QR code imaging scanning through the rear camera array.
Does it support remote terminal management?
Yes. It supports TMS for remote device configuration, firmware updates and fleet management.
What memory and storage options are available?
It supports 2GB / 3GB LPDDR memory options and 16GB / 32GB eMMC storage options.
What is the battery capacity?
The main battery capacity is 2800mAh.
Can the hardware be customized?
Yes. Optional hardware support includes biometric fingerprint reader, external secure PIN pad and external scanner.
