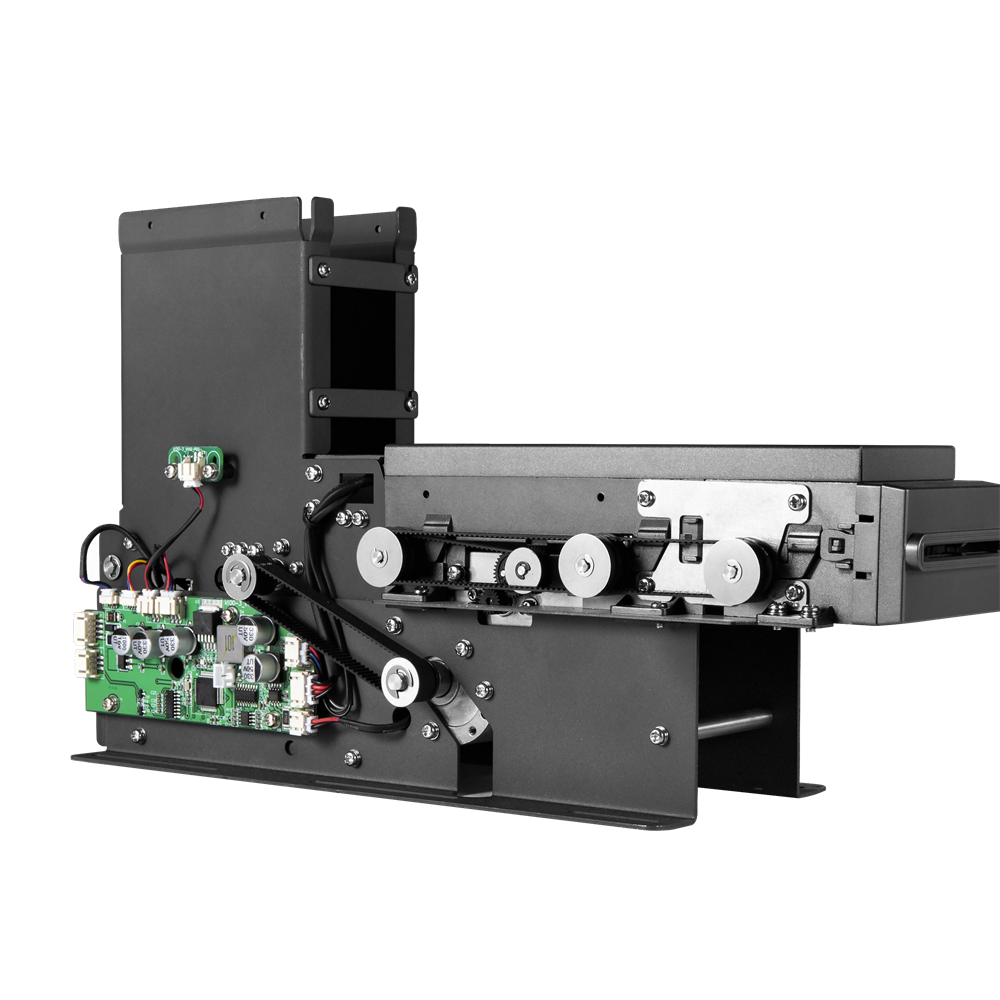

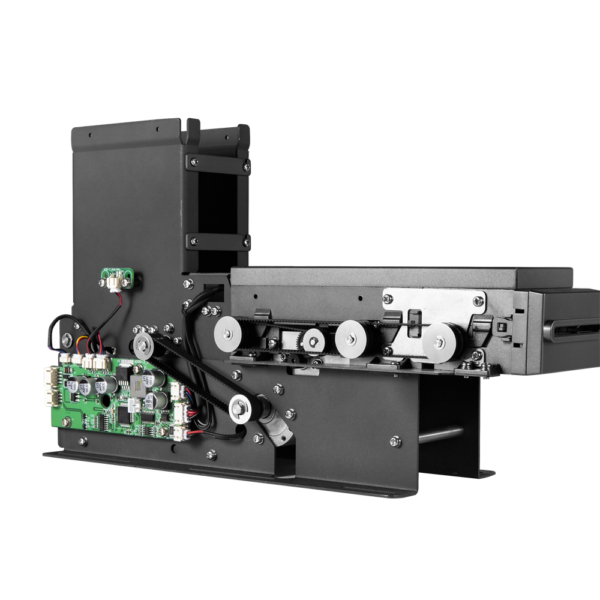

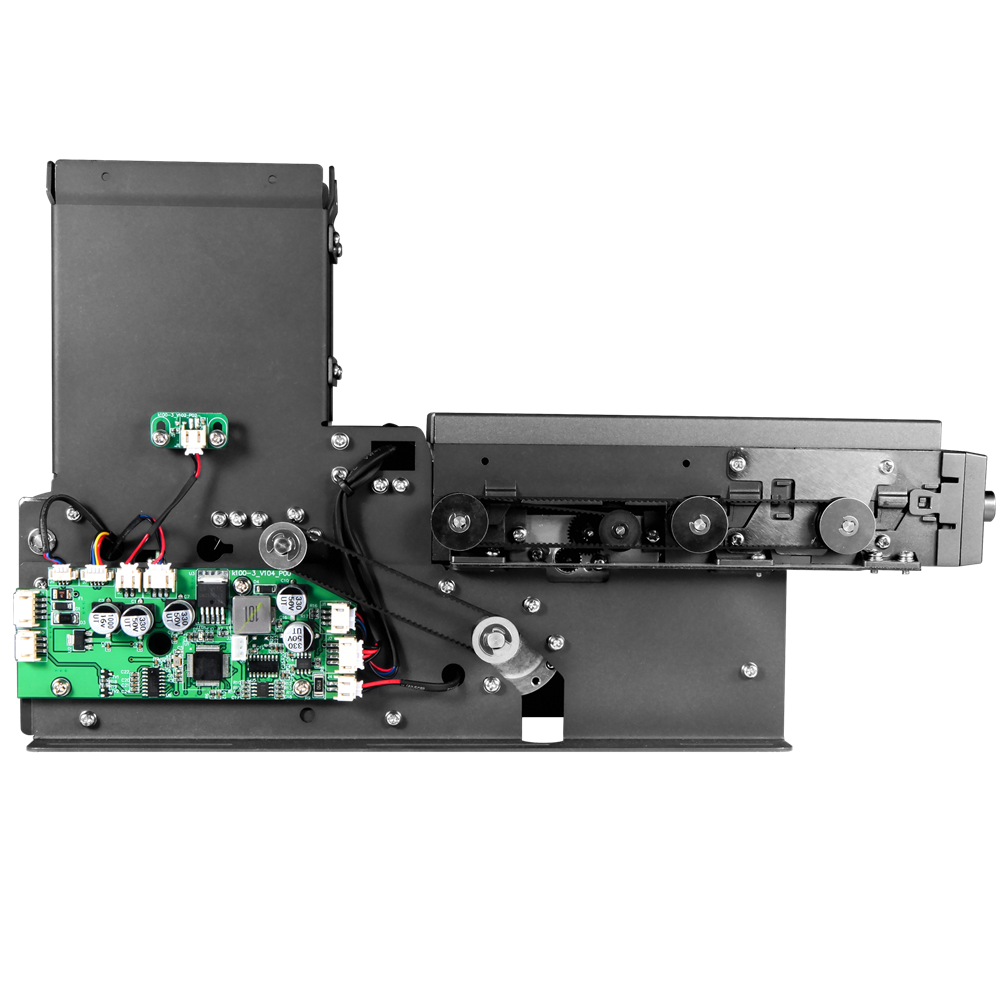

SNR-CD100-M3 Motorized Magnetic / IC / RFID Card Reader Writer and Dispenser
Model: SNR-CD100-M3
"*" indicates required fields
3-in-1 Motorized Card Dispenser with Magnetic, IC and RFID Card Reader Writer
The SNR-CD100-M3 is a motorized card dispenser with integrated magnetic card reader, contact IC card reader / writer and contactless RFID card reader / writer functions. It is designed for hotel room card issuing, parking management systems, vending systems, public transportation card issuing, park ticket vending and card initialization applications.
Unlike a standard card dispenser, SNR-CD100-M3 combines card dispensing, card reading, card writing and card recycling in one industrial module. It supports paper cards and PC cards with thickness from 0.76mm to 0.9mm, and provides RS232 communication, DC24V power input, infrared photoelectric detection, low-card warning, empty-card warning and recycle-box-full warning.
With optional high-capacity card hopper configurations and SDK / DLL / demo software for Windows, Linux and Android, SNR-CD100-M3 is suitable for unattended card issuing systems that require reliable card personalization and high-volume operation.
Key Features
- Motorized card dispenser with 3-in-1 reader / writer
- Supports magnetic card reading
- Supports contact IC card read/write
- Supports contactless RFID / RF card read/write
- Suitable for paper cards and PC cards
- Supports card thickness from 0.76mm to 0.9mm
- Standard hopper capacity: 150 cards
- Optional hopper capacity: 200 / 250 cards
- Extended stacker capacity up to 300 / 400 cards by configuration
- Supports command-triggered card insertion
- Supports magnetic sensor-triggered card insertion
- Infrared photoelectric sensor detection
- Low card warning
- Empty card warning
- Recycle box full warning
- RS232 communication interface
- DC24V power input
- SDK / DLL / demo software for Windows, Linux and Android
- Suitable for hotel room cards, parking cards, transit cards and access cards
Applications
- Hotel room card solution
- Hotel self check-in kiosk
- Parking lot management system
- Parking card issuing terminal
- Automatic vending system
- Subway card issuing machine
- Public transportation card issuing terminal
- Park ticket vending system
- Card initialization machine
- Access control card issuing system
- Membership card issuing terminal
- Visitor card issuing kiosk
- Campus card issuing system
- Prepaid card issuing terminal
- Self-service card personalization kiosk
Technical Specifications
Card Type Support
| Category | Item | Specification |
|---|---|---|
| Magnetic Card | Standard | ISO/IEC 7810 ID-1, ISO/IEC 7811-1 / 2 / 6 |
| Magnetic Card | Coercivity | Supports Lo-Co low coercivity and Hi-Co high coercivity magnetic cards |
| Magnetic Card | Function | Magnetic card reading |
| Contact IC Card | Standard | ISO/IEC 7816-1 / 2 / 3, EMV 4.2, PBOC 3.0 |
| Contact IC Card | Supported Types | CPU cards T=0 protocol, T=1 protocol, SLE4442, SLE4428, T24C01, AT24C02–AT24C64, AT88SC102 |
| Contactless IC Card | Standard | ISO/IEC 14443-1 / 2 / 3 / 4 |
| Contactless IC Card | Supported Types | Mifare Classic, Mifare One S50 / S70 / UL, Type A CPU, Type B CPU |
Card Specification
| Item | Specification |
|---|---|
| Card Material | Paper card and PC card |
| Card Width | 54 ± 0.5mm |
| Card Length | 85 ± 0.5mm |
| Card Thickness | 0.76–0.9mm |
Power and Interface
| Category | Item | Specification |
|---|---|---|
| Power | Operating Voltage | 24VDC ±10%, ripple <200mV |
| Current | Peak Current | <3.0A |
| Current | Quiescent Current | <0.5A |
| Interface | Communication | RS232 standalone asynchronous half-duplex communication |
| Interface | Socket | PH-3pin socket |
Card Hopper and Recycle Box
| Item | Specification |
|---|---|
| Standard Card Hopper Capacity | 150 cards, based on 0.76mm standard thickness |
| Optional Hopper Capacity | 200 cards / 250 cards |
| Extended Stacker Capacity | 300 cards / 400 cards by configuration |
| Hopper Alert Function | Low card warning and empty card warning |
| Recycle Box Quantity | 1 recycle box |
| Recycle Box Capacity | 18–20 cards per box, based on 0.76mm standard thickness |
| Recycle Box Alert Function | Full recycle box warning |
Environmental and Reliability Specifications
| Item | Specification |
|---|---|
| Operating Temperature | 0℃ to 45℃ |
| Operating Humidity | 30%–90% RH |
| MTBF | >200,000 hours, electronic components only |
| Net Weight | About 2.7kg |
Functional Design

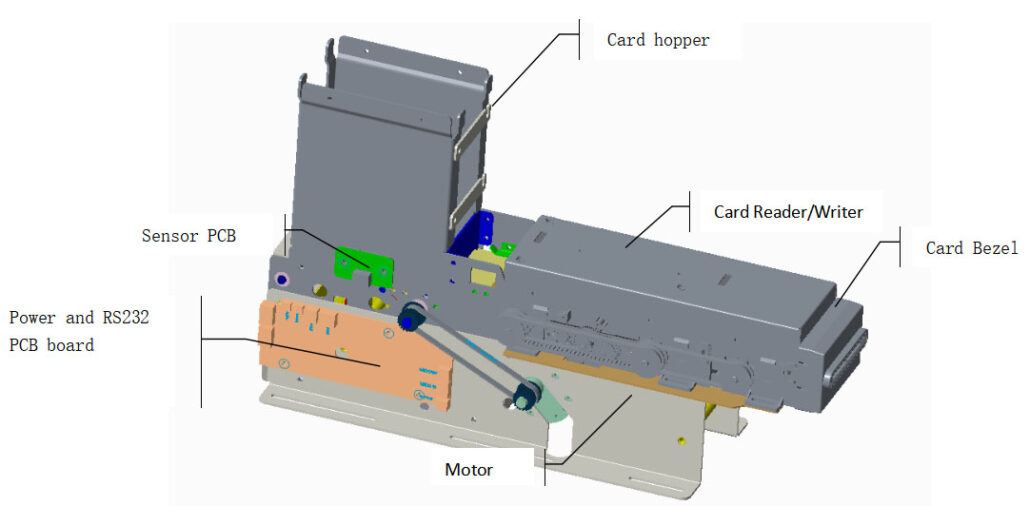

3-in-1 Reader / Writer and Dispenser
SNR-CD100-M3 integrates a motorized card dispenser with magnetic, contact IC and contactless RFID reader / writer functions. This allows the terminal to issue cards and personalize card data in one module.
Multi-Technology Card Support
The device supports magnetic cards, contact IC cards and contactless IC / RFID cards. It is suitable for hotel room cards, parking RFID cards, transit cards, park tickets, access cards and membership cards.
High-Capacity Card Hopper
The standard hopper supports 150 cards based on 0.76mm card thickness, with optional 200 / 250 card configurations. For higher-volume deployments, the stacker capacity can be extended to 300 or 400 cards.
Command and Sensor-Triggered Insertion
SNR-CD100-M3 supports both command-triggered insertion and magnetic sensor-triggered insertion, giving integrators more flexibility in card issuing and card initialization workflows.
Reliable Photoelectric Detection
Infrared photoelectric sensors provide card detection with long service life and low failure rate, helping improve stability in unattended terminal applications.
Card Recycling Support
The built-in recycle box collects abnormal, failed or rejected cards and supports full-box warning, helping reduce service risk and improve maintenance efficiency.
Why Choose SNR-CD100-M3?
SNR-CD100-M3 is suitable for projects that require automatic card dispensing, card personalization and multi-card technology support in one device.
Compared with a basic card dispenser, SNR-CD100-M3 integrates magnetic card reading, contact IC card read/write and contactless RFID card read/write. This makes it practical for hotel self check-in kiosks, parking card systems, public transportation card issuing machines, park ticket vending systems and card initialization equipment.
For unattended applications requiring high-volume card issuing, reliable sensing, card recycling and Windows / Linux / Android integration, SNR-CD100-M3 provides a robust industrial card dispenser solution.
Related Models
SNR-CD100 – Card dispenser with magnetic / IC / RF reader writer for self-service car wash, parking and hotel systems
SNR-CD2000 – Automatic prepaid card dispenser for gift and stored value cards
SNR-K750S – Barcode SIM card dispenser for telecommunication self-service terminals
SNR-K720 – RFID parking card dispenser for parking and access control systems
SNR-MR800 – Motorized magnetic, IC and RFID card reader writer for self-service terminals
Learn more about system architecture: Card Dispenser Hub
FAQ
What is SNR-CD100-M3 used for?
SNR-CD100-M3 is used as a motorized card dispenser with magnetic / IC / RFID reader writer functions for hotel room card issuing, parking management systems, vending systems, public transportation card issuing, park ticket vending and card initialization applications.
Does SNR-CD100-M3 support card writing?
Yes. It supports contact IC card read/write and contactless IC / RFID card read/write. Magnetic cards support reading.
What magnetic card standards are supported?
It supports magnetic cards compliant with ISO/IEC 7810 ID-1 and ISO/IEC 7811-1 / 2 / 6 standards, including Lo-Co and Hi-Co magnetic cards.
What IC card standards are supported?
It supports ISO/IEC 7816-1 / 2 / 3, EMV 4.2 and PBOC 3.0 contact IC card standards.
What contactless card standards are supported?
It supports ISO/IEC 14443-1 / 2 / 3 / 4 contactless card standards, including Mifare Classic, Mifare One S50 / S70 / UL, Type A CPU and Type B CPU cards.
What card thickness does it support?
It supports card thickness from 0.76mm to 0.9mm.
What is the card hopper capacity?
The standard hopper capacity is 150 cards based on 0.76mm card thickness. Optional configurations include 200 and 250 cards, and the stacker capacity can be extended to 300 or 400 cards.
Does it include a recycle box?
Yes. It includes one recycle box with capacity of about 18–20 cards based on 0.76mm card thickness.
What communication interface does it use?
SNR-CD100-M3 uses RS232 standalone asynchronous half-duplex communication.
What software support is available?
SDK, DLL and demo software are available for Windows, Linux and Android integration.
