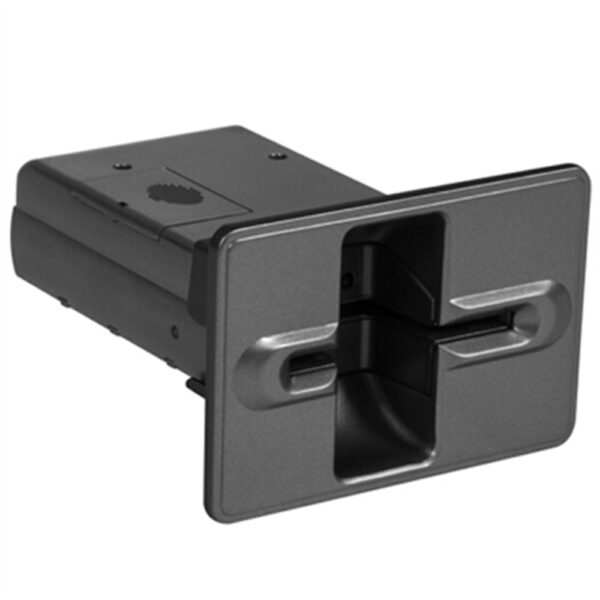

SNR-MIR500 Manual Dip Card Reader Writer for Self-service terminal
Model:SNR-MIR500
- 3 in 1 manual insert card reader writer
- Hybrid functions for magnetic read and IC card Read Write
- Controllable latching lock function to retain and release card
"*" indicates required fields
Description
SNR-MIR500 series Manual card reader adopts industrial design, good resistance to abrasion and corrosion, fit for high or low temperature and dusty environments. Bayonet smooth, make sure it has very good adaptability for all kinds of deformation card. Electric lock will lock card after inserted completely, ensure the card was ejected via command after the reading writing operation completion. Avoid wrong operation .There are two size front mounting rack for your different choice. Also support multiple card read write: IC/RFID card reading and writing ,Magnetic card reading only .It is widly used in many applications,including ATM and self-service terminals, KIOSK terminals and entry/exit control systems.
Features
- Hybrid functions for magnetic read and IC card Read Write
- Long life magnetic modules and active data uploading
- Variety of bezel options,PSAM options
- EMV & PBOC certified
- Customization service
- Controllable latching lock function to retain and release card
Applications
- Fuel Dispensers & Outdoor Gas Pumps: Built to withstand extreme temperatures and rugged outdoor environments, making it ideal for self-service petrol payment terminals.
- Electric Vehicle (EV) Charging Stations: Integrates smoothly into EV charging pillars for secure user authentication via RFID loyalty cards or contact EMV payment cards.
- ATMs & Smart Vending Kiosks: Acts as a space-saving, low-maintenance alternative to motorized readers for retail vending, transit ticketing, and reverse vending machines.
- Access Control Panels: Perfect for secure building turnstiles, parking barriers, and high-security government facility entrances requiring dual card-verification methods.
Specification
| Card type | Magnetic card ISO7810,ISO7811 |
| IC card ISO7816-1,2,3,4 | |
| Support T=0,T=1 CPU card | |
| Support T=0,T=1 PSAM card | |
| RFID card ISO14443 Type A & B | |
| Support Mifare 1 S50,S70,UL card,Mifare Plus, | |
| Mifare Desfire | |
| Card dimension | Width:53.92~54.18mm |
| Length:85.47~85.90mm | |
| Thickness:0.76±0.08mm | |
| Power supply | 5VDC _24VDC(Max current100mA,Static current 30mA) |
| Communication interface | RS-232/USB(powered) |
| Operation current | <250mA |
| Magnetic head | 800,000 cycles |
| IC card contact | 500,000 cycles |
| Latch mechanism | 500,000 cycles |
| M.T.B.F | >100,000hours(electronic components only ) |
| Environmental conditions | Operation:0~50℃/0~90%RH(Non-condensing) |
| Storage -25~80℃/0~95%RH(Non-condensing) | |
| Weight | About 200g |
FAQ
Q1: What card technologies does the SNR-MIR500 support?
A: The SNR-MIR500 features a highly versatile multi-technology design supporting high-precision reading of 3-track Magnetic Stripe cards, alongside full reading and writing of Contact IC cards (ISO7816) and Contactless RFID/NFC cards (13.56MHz).
Q2: Does this manual reader include a card-locking feature?
A: Yes. It is equipped with a high-durability solenoid controlled lock. It secures the card upon insertion to protect transactional data integrity (especially during EMV chip processing) and releases it instantly when the command finishes.
Q3: What communication options and OS drivers are available?
A: It standardizes on dual interface options: RS232 serial and USB (HID/Virtual COM). The device provides plug-and-play, seamless software compatibility across Windows, Linux, and Android platforms.
Q4: How does the SNR-MIR500 handle debris or environmental dust?
A: Its manual dip architecture is inherently less prone to mechanical wear than motorized models. The rugged structure is designed to drain accidental moisture and resist dust, ensuring a long operational lifespan in semi-outdoor kiosks.
