■ 4th: DDR3L SODIMM x1
■ 6/7/8th: DDR4 SODIMM x1
■ 8/10th: DDR4 SOIMM x2

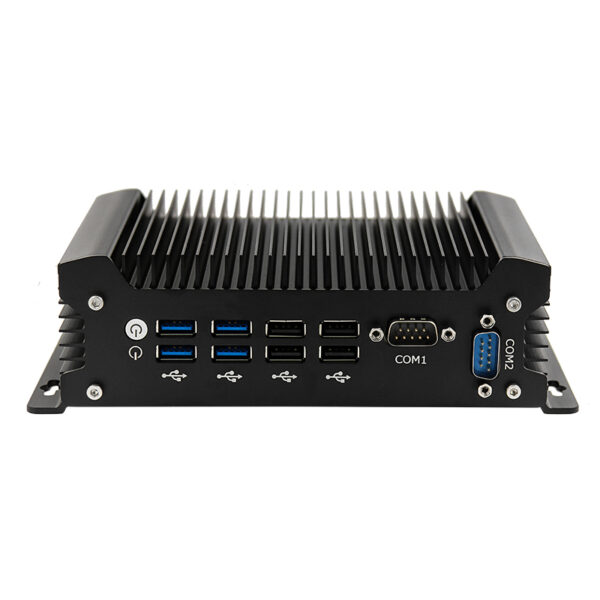

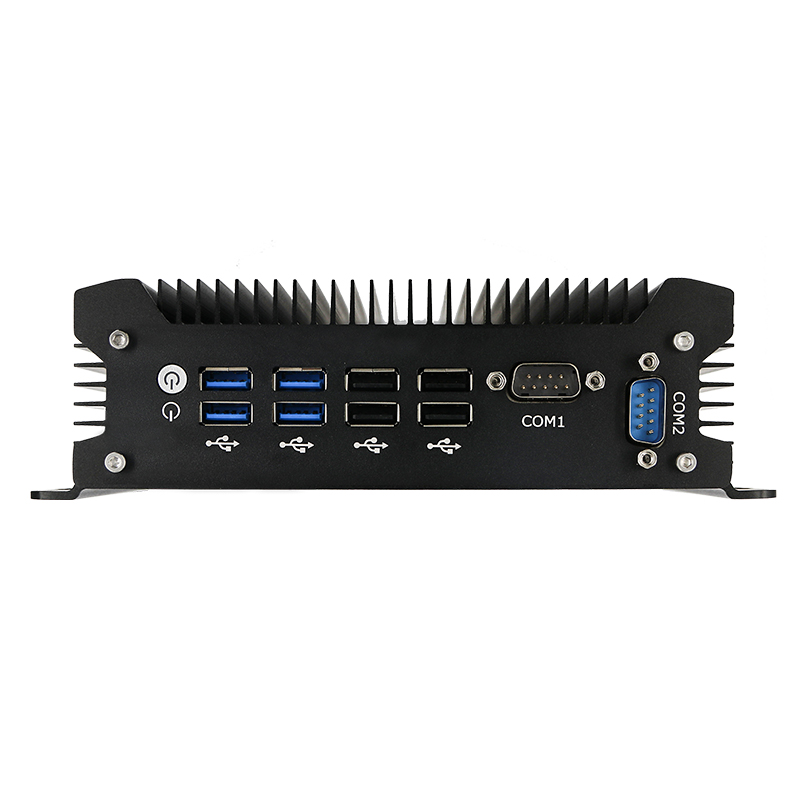

■ 2x RS-232 COM ,4 x USB3.0, 4 x USB2.0
■ 2x GbE RJ45 Realtek 8111H

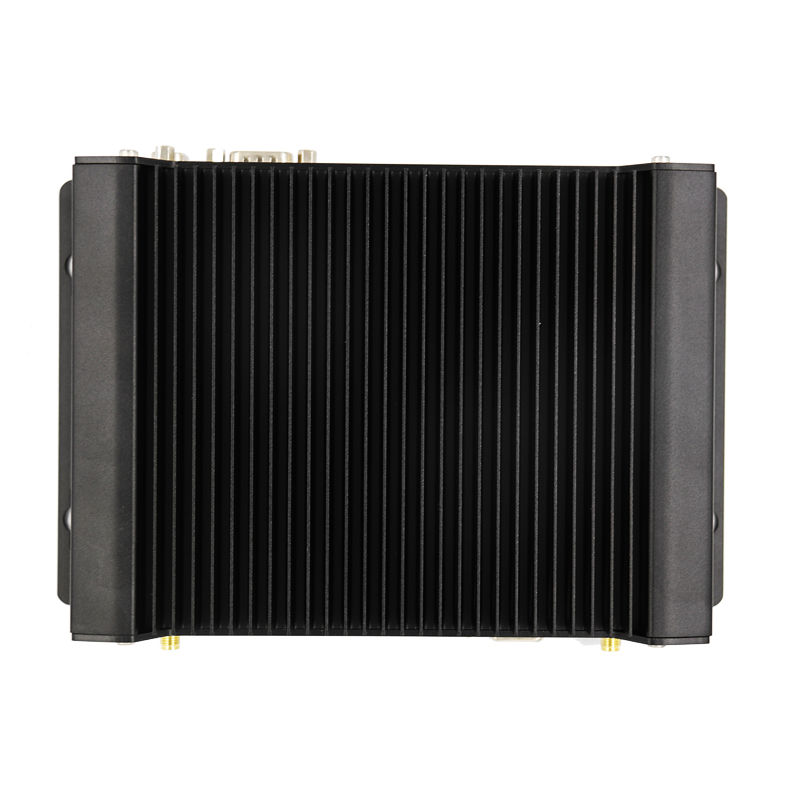

■ Fanless Operation
■ DC Support 12~19V
Model | IBC-N8 |
Color | Black (Color can be customized) |
Material | High-quality all aluminum,surface anodic oxidation |
Processor | Onboard Intel® Celeron® 4th/6th/7th/8th/10th i3/i5/i7 CPU |
System memory | 4th: DDR3L SODIMM x1,Up to 8GB
6/7/8th: DDR4 SODIMM x1,Up to 16GB 8/10th: DDR4 SOIMM x2,Up to 32GB |
Ethernet | 2 x GbE RJ45 Realtek 8111H |
Display Chip | Integrated Intel HD Graphics |

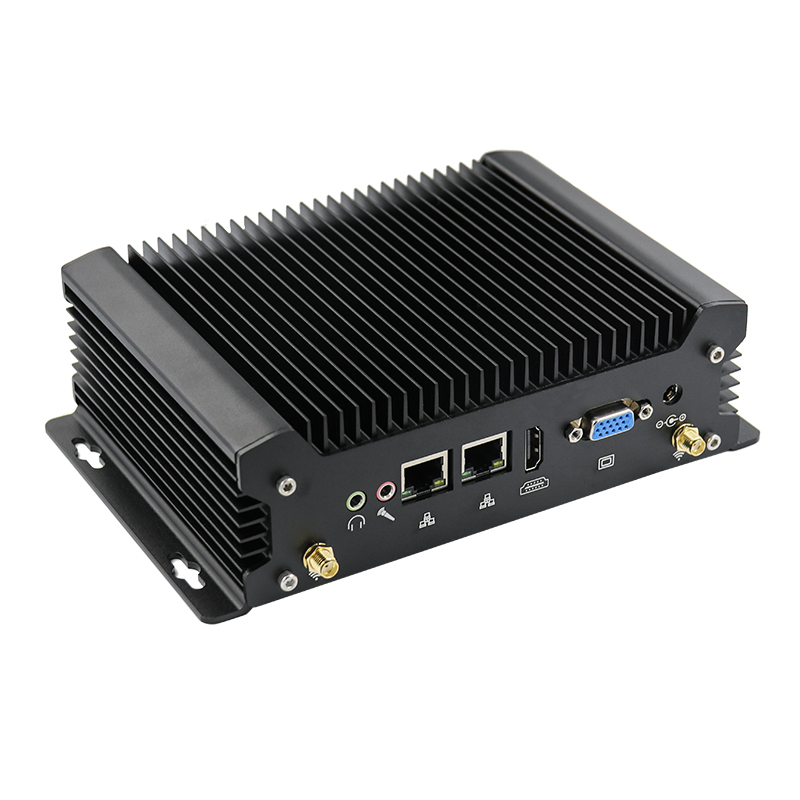

I/O Port | 4 x USB3.0,4 x USB2.0
2 x DB9 COM 1 x HDMI,1 x VGA(or HDMI) 1 x Power Button DC 12-19V input 1 x aduio,1 x Min-in 2 x Antenna interface for WIFI/3G/4G |
Display Port | 1 x HDMI,1 x VGA(or HDMI) |
Storge Disk Driver | 4th: 1x MSATA
6/7/8/10th: 1x M.2 2280 1x 2.5″ HDD/SSD |
OS support | Windows® 7/8/10,WES 7/10,LINUX |
Expansion Slot | Mini-PCIe x1 full size |
half size with SIM Card for 3G/4G or wifi/BLT | |
Network | 2*10/100/1000M RTL8111E 1000M LAN |
Watchdog timer | 255 Levels |
Input Voltage | DC 12V-19V |
Other Function | Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot、Watchdog(0~255 level) |
Work Temp | -30℃ to +70℃ |
Work Humidity | 10%~90% @30℃ non-condensing |
Certificates | CE、 CCC、 FCC Class A、 ROHS |
Dimension | 193.9 x 127 x 57.2 mm |
Net Weight | 1 kg |
Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc. |
