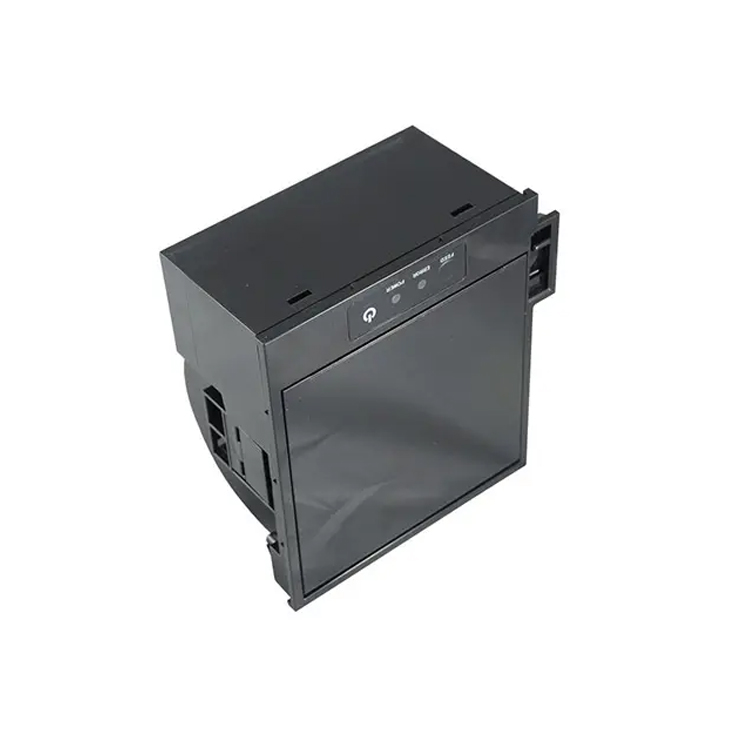

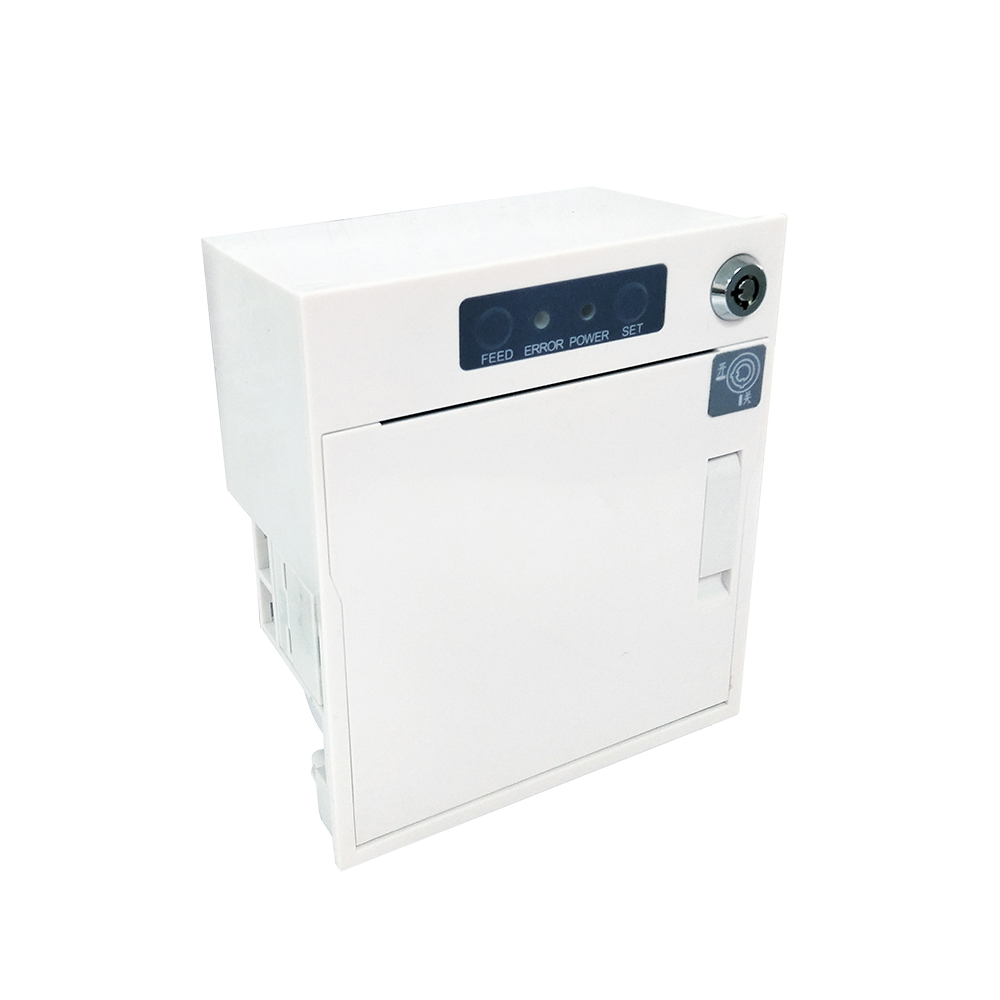

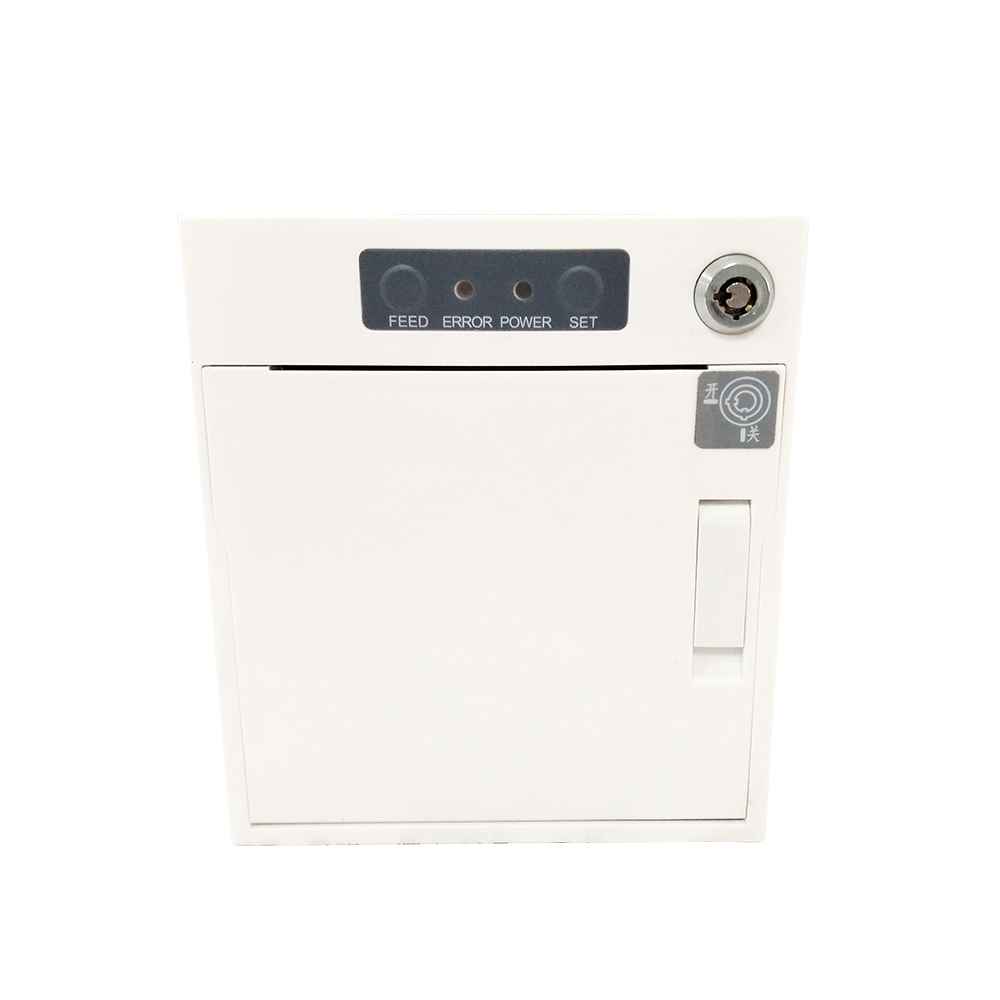

Panel Thermal Printer Features:

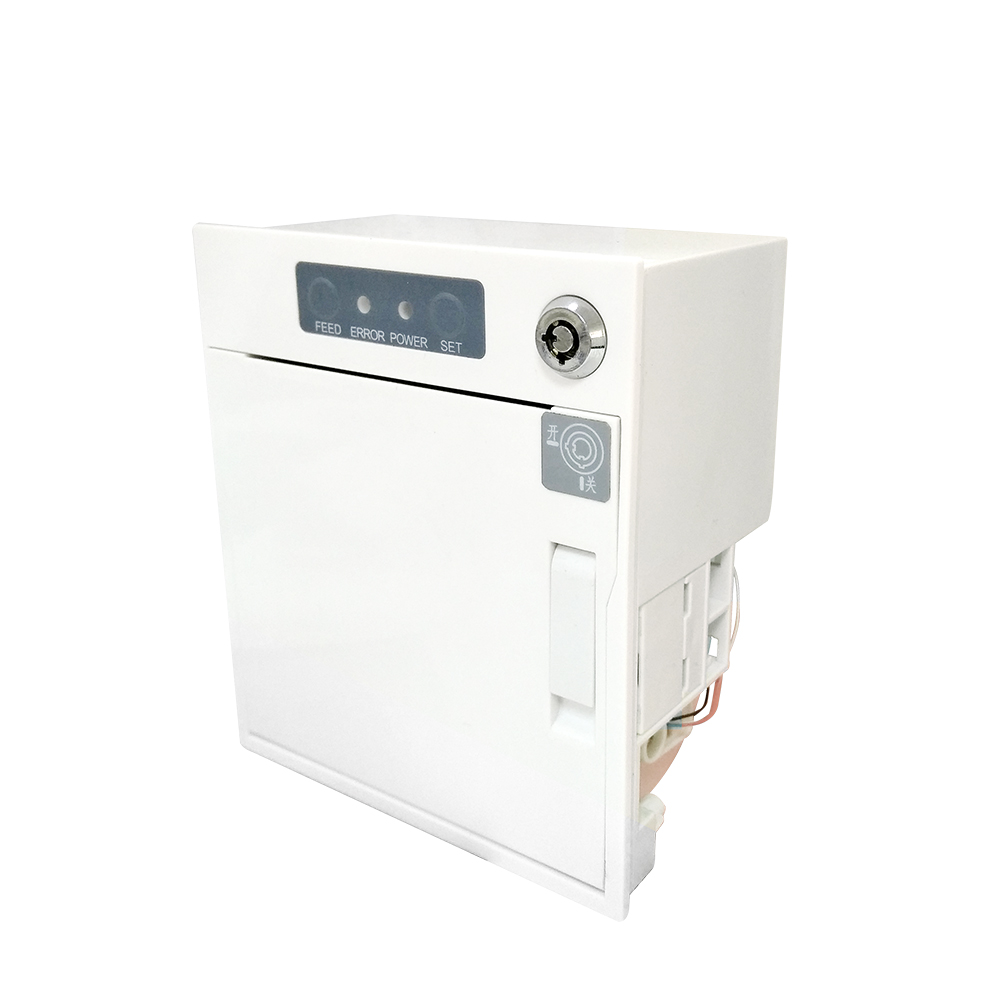

- Lock of the panel is optional
- Kiosk mounted thermal printer
- High Printing speed:180mm/s
- Fashionable, delicate and elegant
- Low noise direct thermal printing method
- Various image/curves/characters printing function
- Paper out detection, automatic memory printing function

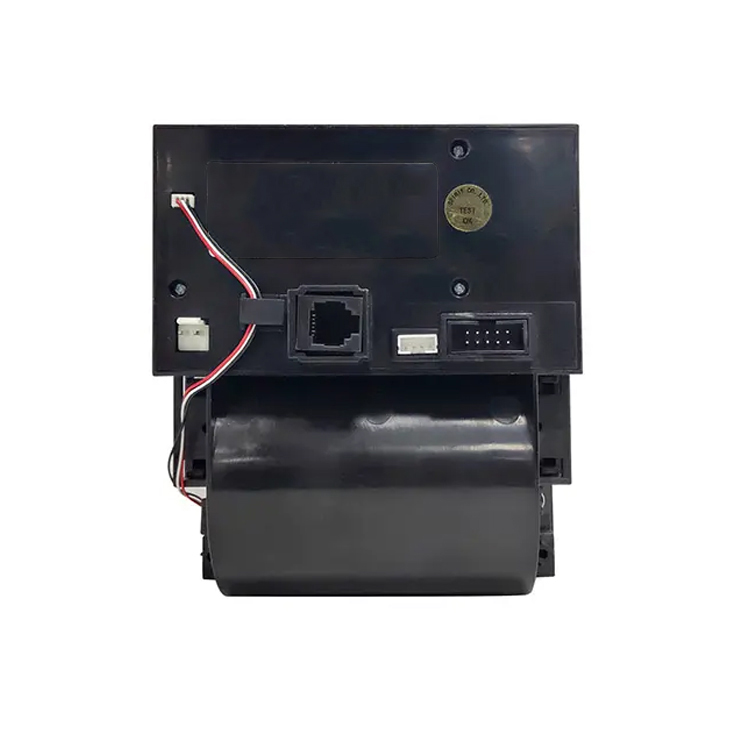

- Support Serial+USB+Cash Drawer port
- Power supply is DC24V /2A
- Compatible with Windows 7/8/10/Linux,freely provide SDK/Driver
Panel Thermal Printer Specifications:
| Printing Method | Thermal Line |
| Resolution | 8 dots/mm (203 dpi), 576 dots/line |
| Printing Speed | 170 mm/s (Max) |
| Effective Printing Width | 72 mm |
| TPH | 100km |
| Paper Width | 79.5±0.5mm |
| Paper Type | Normal Thermal Paper/ Blackmark Paper |
| Paper Size | Max 80 mm×Ø60mm |
| Paper Thickness | 0.06mm～0.08mm |

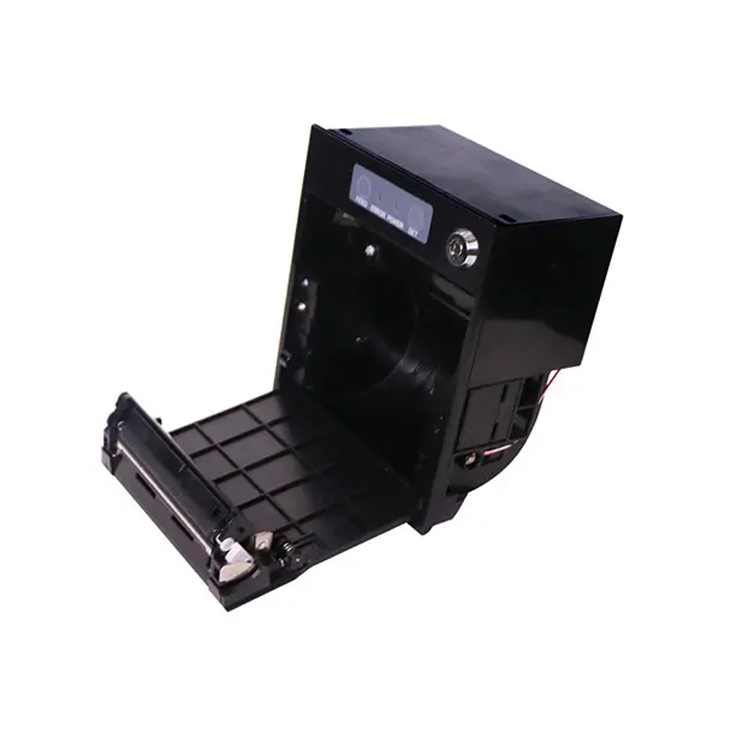

| Paper Supply Method | Drop-in easy paper loading |
| Print Font | ASCII 12 x24; Chinese: 24 x 24 |
| Barcode | 1D: UPC-A、UPC-E、EAN-13、EAN-8、CODE39、ITF25、CODABAR、 CODE93、CODE128 |
| 2 D: PDF417、QRCODE、Data Matrix | |
| Interface | Serial / Parallel / USB / BT |
| Power supply | DC24V±10%, 2A |
| Weight | 970 (Exculde Paper Roll) |
| Operating Temp/Humidity | 0～50℃ / 10～80% |
| Storage Temp/Humidity | -20～60℃ / 10～90% |
| Outer Line Dimension | 132mm*115mm*82.5mm (L*W*D) |
| Installation Port Size | (128.5±0.5)mm*(115.5±0.5)mm / Depth: 77mm |
Panel mount printers can be used in various applications where a compact and reliable printing solution is required. Here are some specific scenarios where they are commonly utilized:
-
Industrial Environments: In factories and manufacturing facilities, panel mount printers are often mounted directly on machinery or control panels to provide real-time printing of labels, barcodes, or reports.
-
Vehicles and Mobile Applications: In vehicles such as trucks, buses, or other mobile equipment, panel mount printers can be installed to print receipts, invoices, or other documents on the spot.
-
Point-of-Sale Systems: Retail stores and restaurants often use panel mount printers integrated into their POS (point-of-sale) systems to print receipts for customers.
-
Healthcare Facilities: Hospitals, clinics, and pharmacies may employ panel mount printers to print labels for medication, patient information, or other critical medical documents.
-
Ticketing Machines: At transportation hubs like airports, train stations, or amusement parks, panel mount printers are used to print tickets or boarding passes.
-
Kiosks and Self-Service Terminals: Panel mount printers are commonly found in self-service kiosks for tasks like printing boarding passes, movie tickets, or other self-service transactions.
-
Field Service Applications: Field service workers such as utility workers or technicians may use panel mount printers to generate labels, reports, or work orders while on the job.
The key advantage of panel mount printers is their ability to be securely and easily integrated into various systems and environments, providing a dependable and efficient printing solution where space is limited or where ruggedness and durability are required.
